Avcit,ODM/OEM Service, HDMI Extender cat ,Signal Extender, 1 in 1 out, HDMI Extender over Optic Fiber

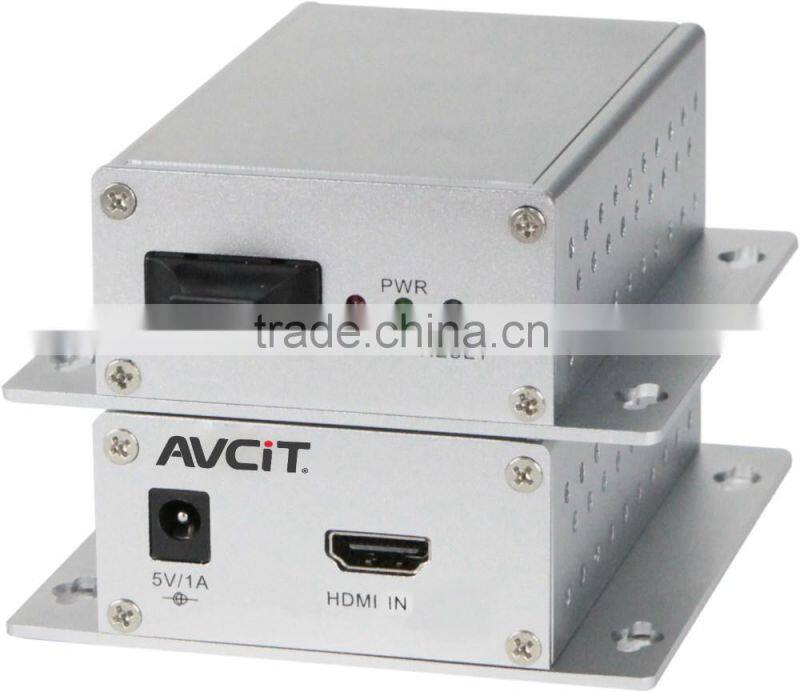

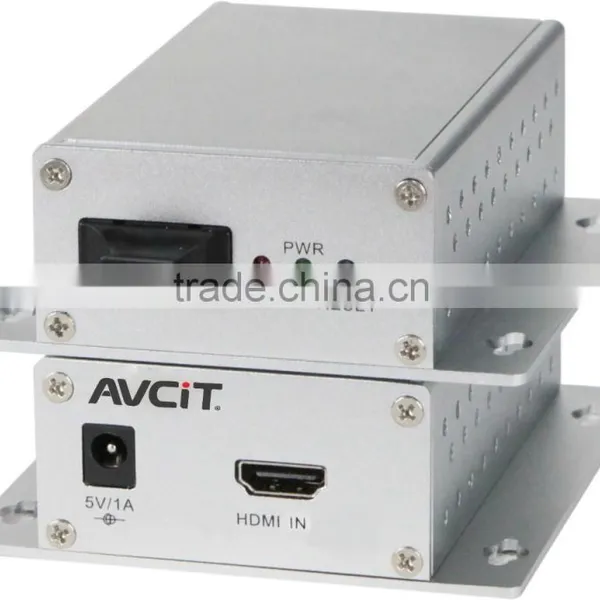

CRV-OFHDMI/TR is for HDMI signal transmission over single-mode optic fiber, it convert HDMI signal into optical signal, the maximum transmission distance is 25km.
For single-mode dual-core optic fiber (one for transmitting of video signal, the other for detecting)
State);
Connector for optic Fiber is SC type;
Full HD, Max resolution 1920*1200;
CRV-OFHDMI/T support 1 channel HDMI female-Terminal input, optic fiber output;
CRV-OFHDMI/R support optic fiber input, 1-channel HDMI female-Terminal output;
Automatic EDID functions;
Transmission distance up to 25km.
Supported protocols HDMI1.3b,HDCP
PIXELPixel-bandwidth 165MHz digital
Interface bandwidth 2.25Gbps, digital (for a total of 6.75Gbps, each color is 2.25Gbps)
Maximum supported resolution PC HDTV 1920x1080P 60Hz_36bit, 1920x1200 60Hz_24bit
Clock Jitter (Clock Jitter) <0.15 Tbit
Rise time (Risetime) <0.3Tbit (20%--80%)
Fall time (Falltime) <0.3Tbit (20%--80%)
Signal type DVI-D/HDMI Digital in DVI 1.0 specification T.M.D.S. signals
Interface HDMI-A interface
Signal strength T.M.D.S. 3.3V p-p
Min/max level T.M.D.S. 2.9V/3.3V
Input impedance Differential 100 Ω
EDID Automatic EDID
Maximum DC offset erro r±15mV
1. Why work with us?
1). Rich experience of working with foreign customers.
2). All product we providing are the best quality, comply with CE, FCC and RoHS
3). Rapid and timely service, 24 hours available.
4). 1-5 years guarantee for all our product.
5). World-leading tech, strong technical support team.
6). A company with CE/ROHS
2. How to order?
It is very easy to order if you can determine which product and quantity you need. But if you can't sure which product can best suitable for your needs, our sales will give you best recommend.
3. How to make payment
We support TT / Western Union / MoneyGram for payment, you can chosse the one best suit for you.
You can get account information from our sales.
