CVBS signal transmission over single-mode optic fiber, it convert CVBS signal into optic signal, CVBS Extender over Optic Fiber

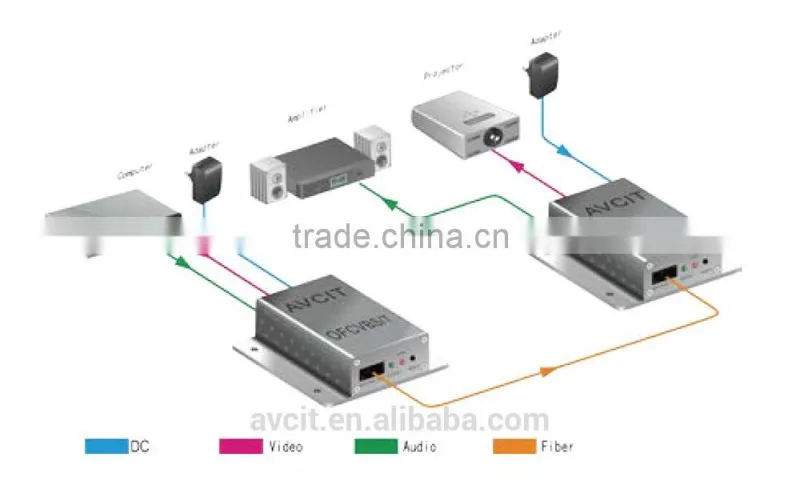

AVC-OFCVBS/TR is extender for CVBS signal transmission over single-mode optic fiber, it convert CVBS signal into optic signal, the maximum transmission distance is 25km.
1.Support single-mode dual-core optic fiber transmission of CVBS signals ;
2.Optic fiber interface is SC type;
3.Maximum resolution support to 1920*1200@60Hz;

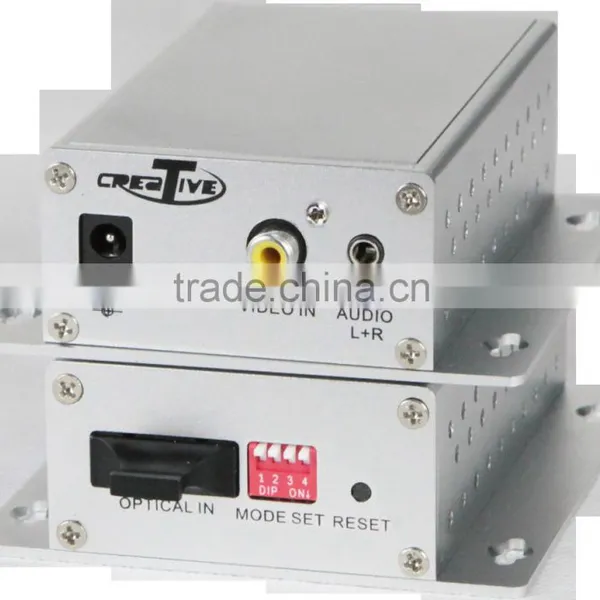

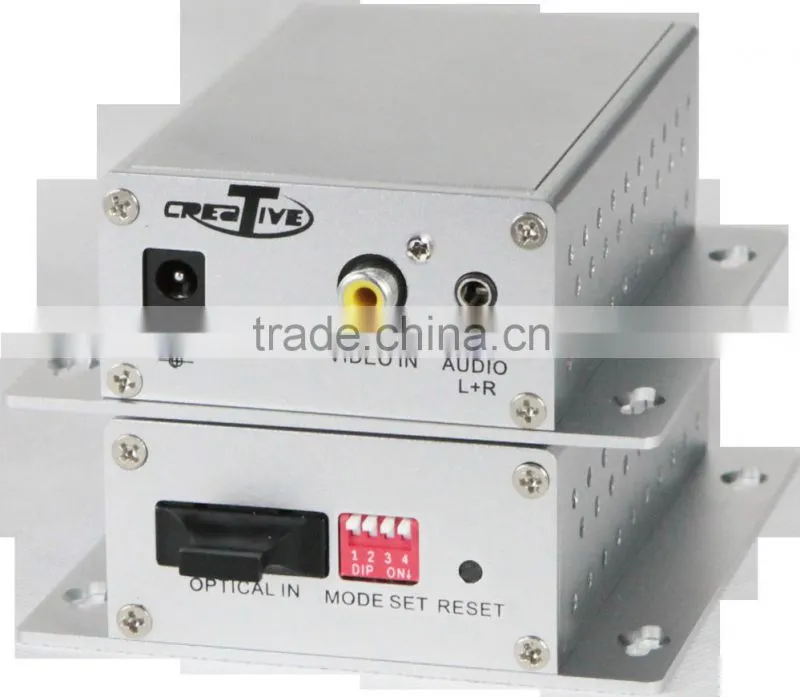

4.AVC-OFCVBS/T: 1 channel CVBS input with audio, 1 optic fiber output
5.AVC-OFCVBS/R: 1 optic fiber input, 1 channel CVBS output with audio
6.Transmission distance up to 25km.
7.Automatically correcting of the level and vertical position;
8.Support audio transmission synchronous
Parameter Name |
CVBS optical fiber extender |
|
CVBS input |
interface |
RCA port |
Signal type |
Composite video |
|
Gain |
0dB |
|
Video signal width |
150MHz @ -3dB |
|
DP |
0.1 ° |
|
differential gain error |
0.1%, 3.58 to 4.43 MHz |
|
Signal strength |
1v p p: CVBS |
|
Input/output level |
2Vrms(Max) |
|
Impedance |
75 Ω |
|
Audio signal |
Input/output port |
3.5mm unbalanced stereo audio input |
Gain |
0dB |
|
Frequency response |
20 Hz to 20 kHz |
|
Total harmonic distortion plus noise |
0.01% @ 1 kHz (rated voltage) |
|
Signal-to-noise ratio (S/N) |
>80dB at Vin=0 V |
|
Stereo separation |
>80dB @ 1 kHz |
|
CMRR |
> 75 db @ : 20 Hz ~ 2 |
|
Signal type |
stereo, non-equilibrium |
|
impedance |
Input: > 10 k Ω |
|
Output |
Fiber output port |
SC connector |
Fiber type |
Single Mode |
|
Wavelength |
Single Mode: 1310nm |
|
Interface bandwidth |
Positive: 6.25 Gbps, reverse: 6.25 |
|
Clock Jitter |
Gbps |
|
Rise time |
< 0.15 Tbit |
|
Falltime |
< 0.3 Tbit (20%-20%) |
|
Maximum input distance |
Maximum input distance |
|
