8 Channel Simultaneous Interpretation Translation System, Direct and Indirect Interpretation,Interpretator Unit

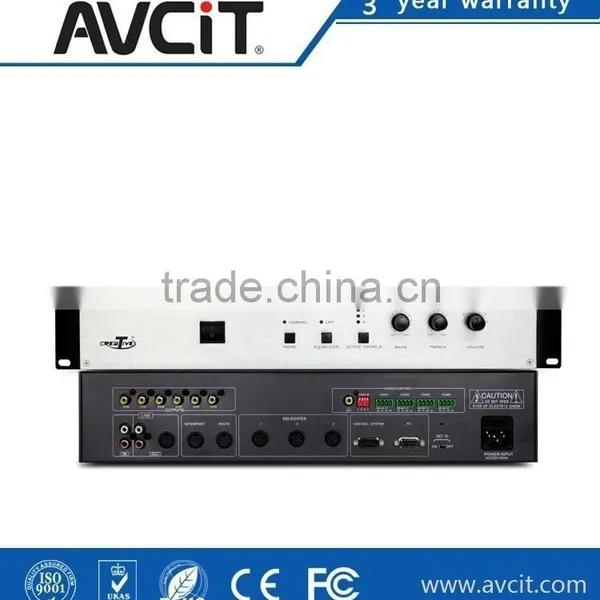

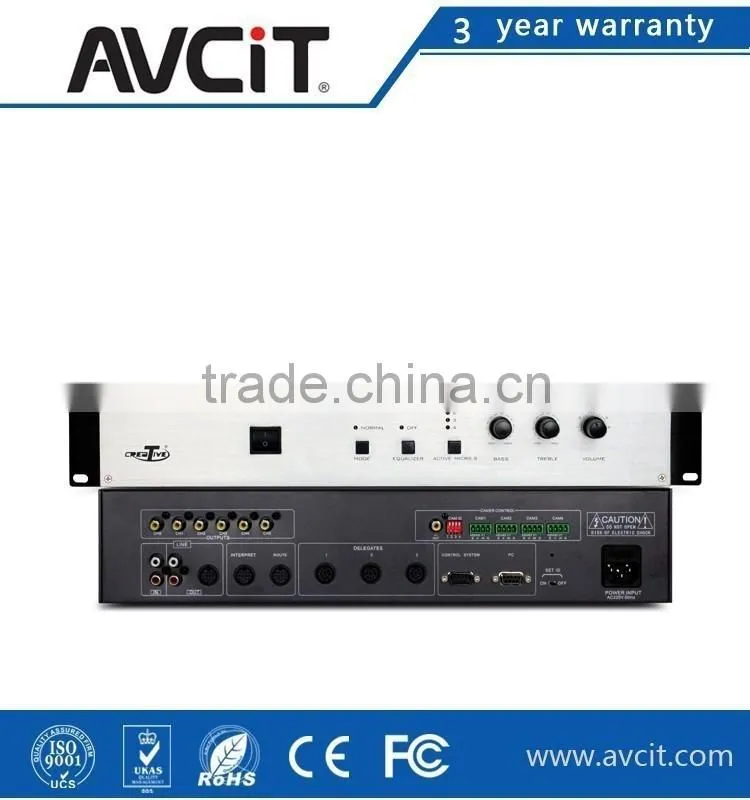

8 Channel Simultaneous Interpretation Translation System, Direct and Indirect Interpretation,Interpretator Unit photo-1
8 Channel Simultaneous Interpretation Translation System, Direct and Indirect Interpretation,Interpretator Unit photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Avcit
Model Number:
TC-IR3105+TC3102
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Avcit
Model Number TC-IR3105+TC3102

8 Channel Simultaneous Interpretation Translation System, Direct and Indirect Interpretation,Interpretator Unit

Overview

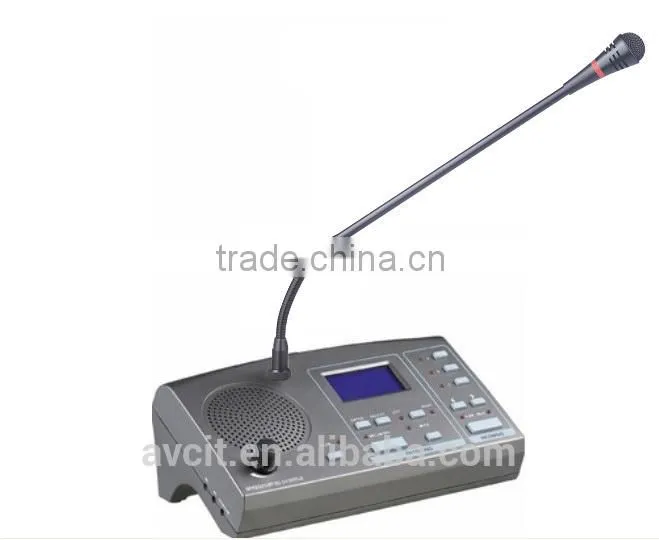

TC-IR3105 interpretation unit, with a concise and direct-viewing appearance, 8-channel simultaneous interpretations, direct and indirect interpretation. Adopt CREATIVE unique audio high-frequency update and compensation technology, clear sound compensation, the space effects, genuine audio correction.

Features



(1)Using headphones listener and speak;
(2)Dedicated 8-core high-density aviation connector;
(3)Cardioid condenser pickups, with two-color indicator. Speak for the red, for the floor is green;
(4)With 2 m connection cable;The knob plugs Mia rod;
(5)Within magnetic speaker, headphone jack and volume control knob;
(6)System host can connect up to 36 units of translation unit 11 +1 multilingual
(7)With indirect translation and direct translation function;
(8)Correspondence between languages and channels can be set by setting the mode;
(9)With application help function;
(10)Translation unit set monitoring unit;
(11)With two sets of microphone and headphone jack;
(12)The unit is a passive device, powered by the system host, the input voltage of 24V;
(13)Translation unit composed of double (or more) interpreters system;When two (or more) the stage translation unit occupied the same output channel, dual (or more) of two (or more) sets the translation unit interpreter system. Between the double (or more) interpreter translation unit in the interlock state can only open a single translation unit, that is, at the same time, the moment a translation unit is turned on, is bound to close a translation unit; to ensure that the same channel only one transliteration is transmitted.

Parameter



Parameter Name

Interpretation Unit TC-IR3105

Power Supply

DC24V supplied by the controller

Unit interface

Aviation 8-core dedicated plug

Power consumption

2W

Earphone output

9dBu,8-32Ω,3.5mm

Directional characteristics

Heart-shaped

Loudspeaker power

2W

Soniferous types

Cord form capacitor

SNR(S/N)

>80dB

Distortion

< 1%

Frequency response

10-24KHz

Equivalent noise

≈ 20dB SPL

Max SPL

105dB(3%)

Sensitivity

-22dBv/Pa

Color

Grey

Crosstalk attenuation

>80dB



Product Display
