800*600 pixels resolution,Editable software ,Plug-in and device Searching function, 12 inch Wireless touch screen XP5700

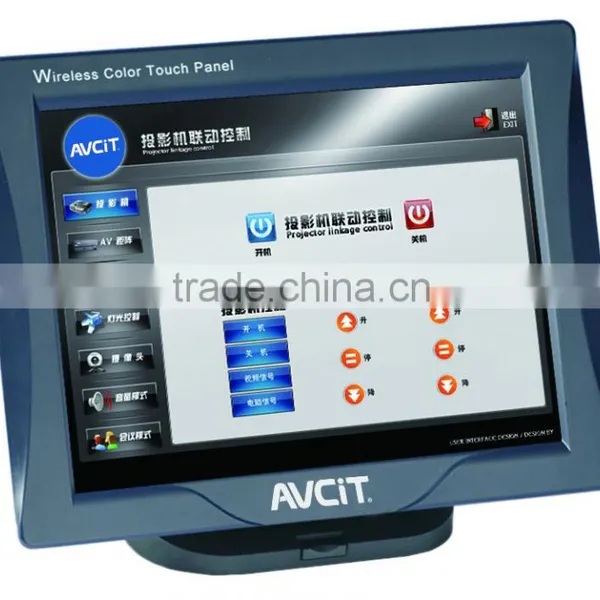

XP5700 is with 12.1 inch TFT LCD screen, resolution of 800*600 pixels, communicates with central controller via RF/wired, User-friendly and graphical interface for programming, supports pictures, graphics, text, animation, 3D buttons and so on, with a high graphical performance.
Parameter Name AS-10 wireless/wired touch panel
Processor Quad-core ARM Cortex-A7, 256KB L1 cache, 1MB l2 cache
Kernel Cortex A7
Number of cores Quad-core
Process 40 nm
Clock speed 1.0GHz
Network mode WIFI, reserved 3G ports
GPU Imagination PowerVR SGX544MP2, 8 logical cores, compatible with OpenGL ES 2.0, OpenCL 1.x, DirectX 9_3
12.1 inch TFT LCD screen, touch screen resolution of 800x600 pixels;
Directional communication with central controller via RF, control distance is up to 80 m (open area);
Editable software by PC;
Jump page and subpage display;
With English and Chinese version;
Standby time delay, network ID, volume, screen brightness, contrast are adjustable;
Standby screen saver function;
Plug-in and device Searching function;
User passwords function;
USB port for communication;
10MB user storage, up to 20MB;
Custom WAV playing and volume controlling, 22K16bit.
Display typeTFT LCD
Screen size12-inch
Brightness 3 levels adjustable
Memory64M, support up to 128M
Input deviation<±0.2mm
Programming softwareGraphical interface for programming
Data exchange USB
Contrast9 levels adjustable
Backlight CCFL Backlighting
Screen ratio4:3
CPU32-bit CPU,210MHz, maximum of 533MHz
RAM 10M
Flash Memory32M
Power supplyDC 24V
External power supplyDC12V
Storage temperature range0-55℃
Working temperature10-40℃
Operating relative humidity20% - 90%
