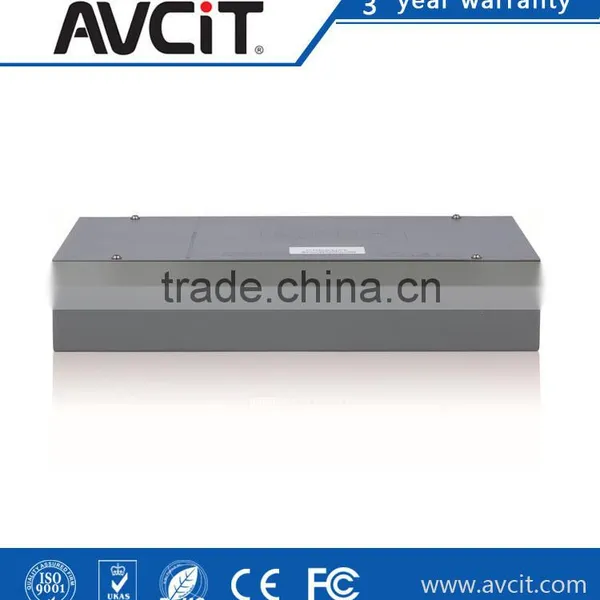

AVC -P8N High-voltage Relay Board

Name: AVC -P8N High-voltage Relay Board
Brand: AVCIT
SKU: 134842219
Availability: InStock

AVC -P8N High-voltage Relay Board thumbnail-1

AVC -P8N High-voltage Relay Board photo-1

US$ 280 - 300 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

AVCIT

Model Number:

CRV-P8N-II

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Guangzhou Meishi Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name AVCIT

Model Number CRV-P8N-II

Place of Origin Guangdong, China

8 way Serial relay board

Introduction

AVC -P8N high-voltage relay controller, together with the main control system, can be widely used in controlling the external power supply such as light, electric screen, electric curtain and projector. It is equipped with eight big current relays.

Feacture

1. Manual control: in front of the machine, there are eight DIP switches, emergency situations can manually control the relay in the control fails you can use this function, good protection for other equipment.
2. IO control: the machine's internal 8 IO interface, when without central control can also be used, more versatile.
3. Protocol compatibility: compatible with currently available used more widely in the control network protocol.
4. ID selected: Rotary switch to set the ID Network ID identification code
5. Each relay has three terminal connection points, with normally turn on and normally turn off function.

Parameter

· Function: 8 independent power switch control
· Load capacity: Single Power 20A
· Power supply: 24VDC power supply
· Software: can be accessed by variety of programmable control system
· Dimensions: 380H x 200W x 70D (MM)
· Weight: 2.7KG

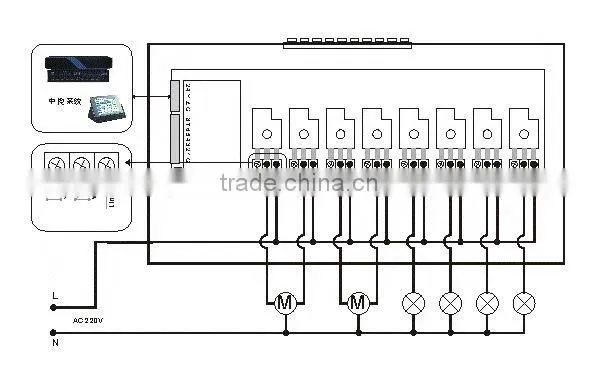

Diagram

Customer Service

Supply the continual, high efficiency and speed service to our customers. Establish high quality service brand and perfect service

network.

In order to supply the timely and satisfied service to our customers and to improve the after-sales service, we make promise as following:

We guarantee that we supply the updated and high quality equipment to our customers. Our products can meet your demand fully.

Delivery time: after order confirmation 5-7 working days. If larger order, the delivery time will be longer.

Our products are lifelong maintenance, 1 year guarantee period. The guarantee period begins after it’s used.
