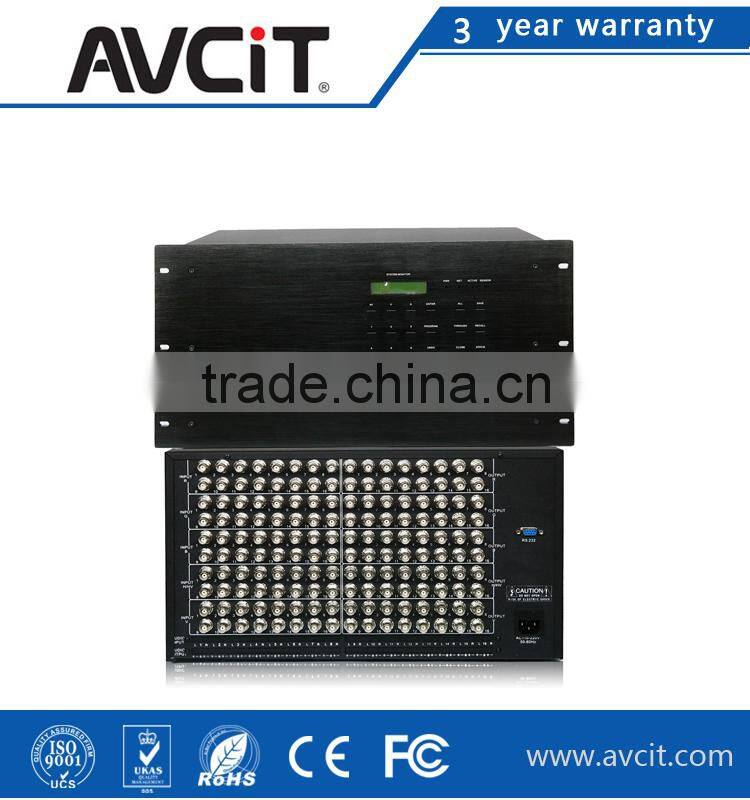

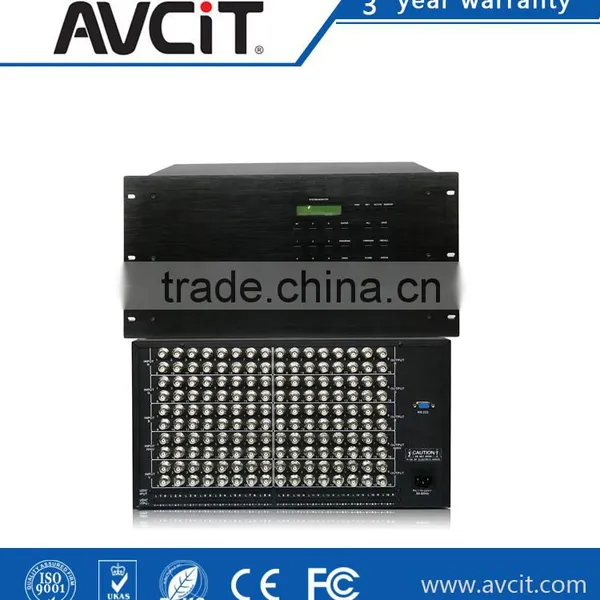

OEM/ODM 1080P, Audio Matrix Switcher for RGBHV,RGBS,RGsB,RsGsBs,HDTV,S-video,Composite video signals, RGB16 Matrix Switcher
Independent RGBHV component input and output terminals, each component signal transmission alone, separate switching logic matrix function, optionally with output switching. make the attenuation of signal transmission to a minimum, make the image signal fidelity output.
Adopted of high-performance professional matrix processing chip, built-in buffer, output is more stable, clear image ghosting, embedded intelligent control and management software, RS232 control interface, user-friendly control software secondary development.
Networking interface, allows multiple RGB matrix used in tandem to expand multi-channel port. With manual panel control, power-down site protection switching memory. In addition you can add infrared controller, using the remote control.
PRO ultra-wideband gain compensation technology, sync signal correction technology, faster switching, flicker-free image. Use the new control touch-type and materials, with LCD display, quick select function, and storage capabilities, appearance is more beautiful, easier to control, and stability. Can be easily and PC remote control system or a variety of remote control devices used in conjunction.
This series matrix front panel with the keyboard, all matrix functions can be achieved by operating the keyboard, using high-grade material, built-in pressure buffering technique, key life of up to 50 million times.
(1)Support for16 channel audio and video signal input, 16-channel audio and video signal output;
(2)Support fast switching operation, the operation more simple and efficient;
(3)Independent RGBHV component and audio balanced / unbalanced input and output terminals;
(4)Support video signal types: RGBHV, RGBS, RGsB RsGsBs, high-definition television (HDTV), component video, S-Video, composite video (signal);
(5)450MHz (-3dB), fully loaded high bandwidth;
(6)Video signal input and output ports adopted BNC connectors, audio signal terminal 5 3.8mm captive screws interface;
(7)Power off memory with off-site protection, LCD liquid crystal display, audio and video sync or separate switching and other functions;
(8)The infrared remote control and RS232 communication function;
(9)Has a network interface, can be controlled via Ethernet;
(10)Type of audio signal: stereo, balanced or unbalanced connection.
• 11U rack-mountable metal chassis.
• Programmable Logic display circuit, switch any interaction.
• Long-distance signal transmission distortion compensation technology.
• Built-in universal power supply.
Bandwidth: 450MHz(-3dB) fully loaded
Brightness crosstalk: -50dB@5MHz,-45dB@10MHz
Maximum propagation delay: 5 ns (+1 ns)
Switching speed: 200 ns (maximum time)
Signal input
Signal Type: 32-channel computer RGBHV
Connection Type: RGBHV BNC input
Input/output level: 0.5V~2.0Vp-p
IO Impedance: 75Ω
Echo loss : -30dB @ 5MHz
Maximum DC Compensation : 1.5V
Signal output
Signal Type: 8 /16 channel computer RGBHV
Connection Type: RGBHV BNC output
Input/output level: 0.7V~2.0Vp-p
IO Impedance: 75Ω
Echo loss : -30dB@5MHz
Maximum DC Compensation : +5mV-0
