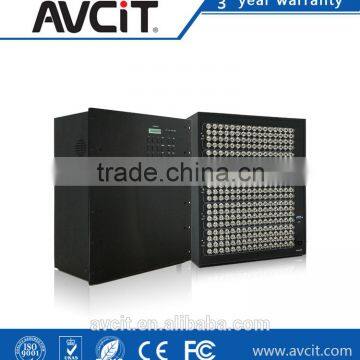

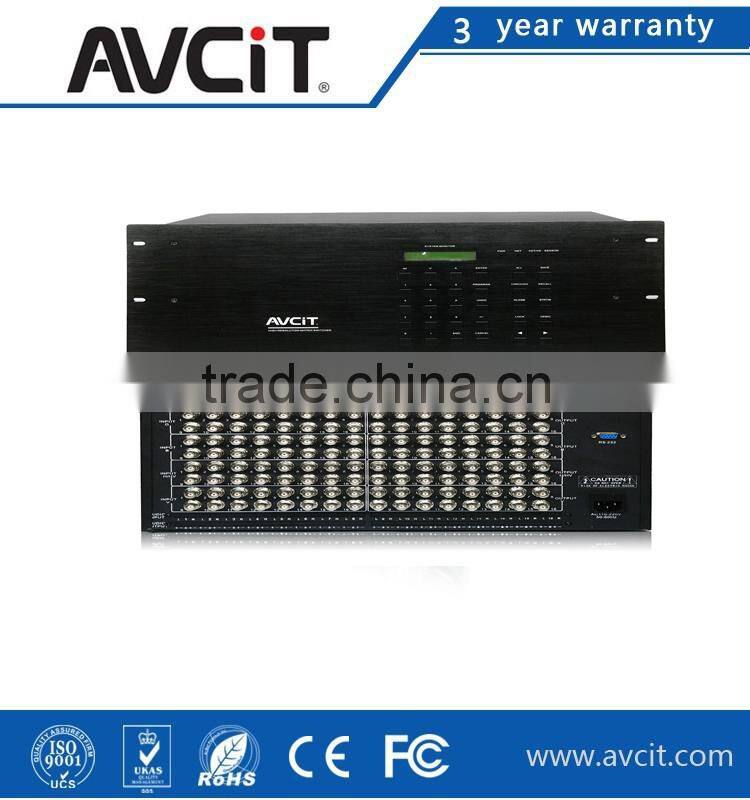

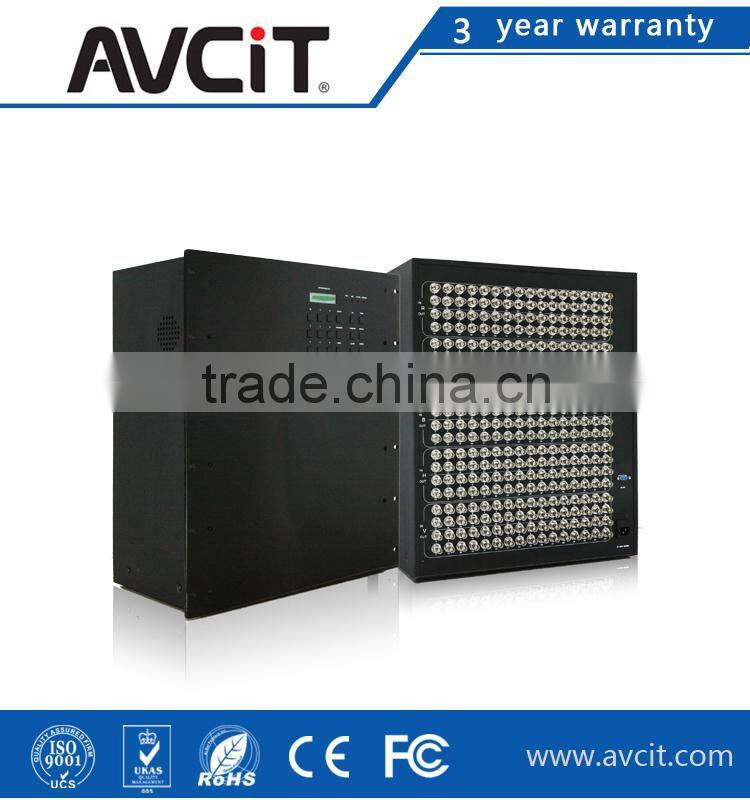

composite Video 3U RGB matrix switcher 8X8
RGB series with multiple models widely used for multi-media meeting, Radio and TV and command center
Features
1. 8 RGBHV inputs. RGBHV signal on female BNC and audio on captive screw connectors.
2. 8 RGBHV outputs. RGBHV signal on female BNC and audio on captive screw connectors.
3. composite video, S-video, component video, RGBHV, and balanced or unbalanced stereo audio signal compatible
4. Adopting the gain-compensation and synchronization signal proofread technology.
5. RS232, CRV-NET, or Key-pressing control
6. With LCD displaying signal switching status
7. Power fail memory with presets
8. Universal international power supply (110VAC-240VAC, 50/60HZ).
Parameter
Audio | specification | Composite Video | specification |
Audio signal | stereo | Video Signal | RGBHV, RGBS, RGsB, RsGsBs |
Bandwidth | 150MHz(-3dB),full load | Bandwidth | 450MHz(-3dB),full load |
connector | RCA | connector | 5 BNC |
Input/output level | 19.5dBu | RGB Input/output level | 0.5Vp-p to 2.0Vp-p |
Input Impedance | >10KΩ | HV input/output level | 0.5Vp-p to 5.0Vp-p |
Output Impedance | >50Ω | RGB Input/output Impedance | 75Ω |
Frequency response | 20Hz~20KHz,0.05dB | HV input impedance | 510Ω |
S/N | >90dB | HV output impedance | 75Ω |
Stereo separation | >80dB@1KHz | Software Control | Matrix Control Program |
CMRR | >75dB @20Hz-20KHz | Return loss | <-40dB@5MHz |
Temperature | -20 0C to +700C | Humidity | 10%~90% |
Dimension | W485xH135xD260 mm | Weight | 6.5kg |
1. Why work with us?
1). Rich experience of working with foreign customers.
2). All product we providing are the best quality, comply with CE, FCC and RoHS
3). Rapid and timely service, 24 hours available.
4). 3 year guarantee for all our product.
5). World-leading tech, strong technical support team.
6). A company with CE/RoHS
2. How to order?
It is very easy to order if you can determine which product and quantity you need. But if you can't sure which product can best suitable for your needs, our sales will give you best recommend.
