Introduction:

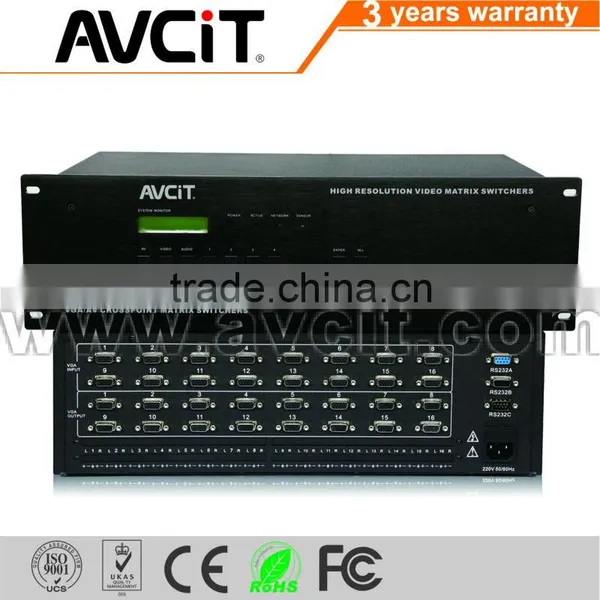

CREATIVE 16x8 VGA matrix swtich with audio support CRV-NET/RS232 control is the high performance computer signal switching matrix switching equipment .
Allows the computer and audio signals switch synchronously or asynchronously .
Compatible with multiple control modes :CRV-NET bus, RS232, key action, software packages, infrared remote control .
Widely used in multimedia Conference, radio and television engineering, command and control centers, and other occasions .
Application:
Widely used in multimedia conferencing works, radio and television engineering, command and control centers and other occasions.
Features:
.Video bandwidth up to 300MHz (-3dB), resolution:1920x1440@85Hz.
. Provide save preset option, the current switch status power off memory.
. LCD displays the switch status in real time, and to query the current matrix to input or output channel status.
. Front panel with touch-key operation interface
. Compatible with multiple control modes: CRV-NET bus, RS232, key action, software packages, infrared remote control.
Technical specification:
Composite analog signals | Analog audio signal | ||
Video bandwidth | 300MHz(-3dB) | Audio bandwidth | 150MHz(-3dB) |
Input signal | RGBHV, RGBS,RGsB,RsGsBs | Input signal | Stereo signal |
Input level | 15-pin HD female socket | Input level | RCA/3.8mm screw locking device |
RGB input connector | 0.5Vp-p~2.0Vp-p | Input max connector | +19.5dBu |
RGB input impedance | 75Ω | Input impedance | >10K Ω |
HV input connector | 0.5V~5.0VP-P | Output signal | Stereo signal |
HV input impedance | 510Ω
| Output level | RCA/3.8mm screw locking device |
Output signal | RGBHV,RGBS,RGsB,RsGsBs | Output max connector | +19.5dBu |
Output level | 15-pin HD female socket
| Output impedance | >50 Ω |
RGB output connector | 0.5Vp-p~2.0Vp-p | Frequency response | 20Hz-20KHz,+0.05dB |
RGB output impedance | 75Ω | Signal-to-noise ratio | >90dB |
HV output connector | 0.5V~5.0Vp-p | Stereo channel separation | >80dB @1KHz |
HV output impedance | 75Ω
| Common mode rejection radio | >75dB@20Hz~20kHz |
Return loss | <-40dB@5MHz |
|
|
Horizontal frequency response | 15KHz~145KHz |
|
|
Vertical frequency response | 30Hz~170Hz |
|
|
Item No. Des
.VGA16*4 16*4 matrix switcher with RS232
.VGA16*8 16*8 matrix switcher with RS232
.VGA16*16 16*16 matrix switcher with RS232

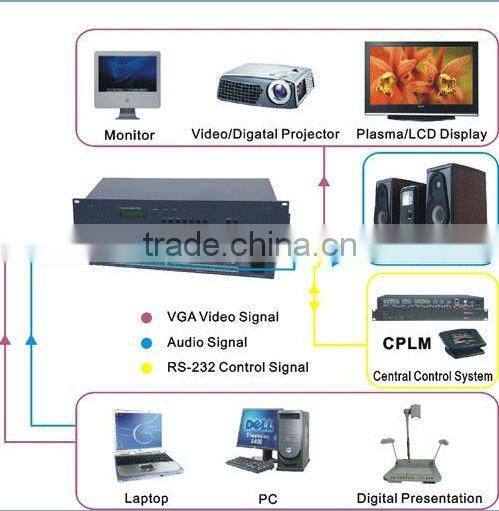

Diagram:
CE, ROHS, ISO9001:1998
