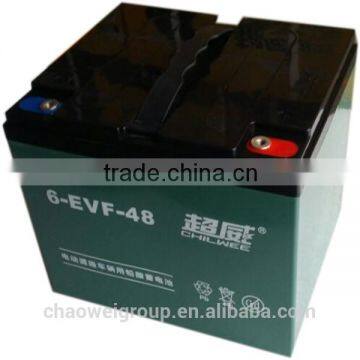

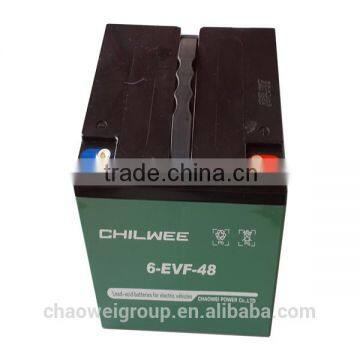

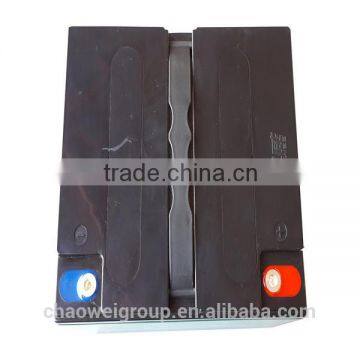

Lead Acid Battery, 12V 48Ah@3hr Rate
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHILWEE
Model Number:
6-EVF-48
Payment & Shipping
Payment Methods:
Port of Shipment:
Chinese Sea Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BN4820CI(48V20A)CHILWEE Lithium Battery for Electric BicycleNegotiableMOQ: 10 Pieces -
6-DZM-12 CHILWEE STAR PRODUCT 12V12A@2HR SLA Battery for E-bikeNegotiableMOQ: 200 Pieces
-
6-DZM-20(12V20A)CHILWEE STAR PRODUCT for Electric BicycleNegotiableMOQ: 200 Pieces
-
12V24A@20HR(6-DZM-20)Good High Temperature Performance CHILWEE BatteryNegotiableMOQ: 200 Pieces
-
12V20A@2HR PLUS CHILWEE High-Power Battery 6-DZM-20 for E-BikeNegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
CHILWEE
Model Number
6-EVF-48
Type
Other, Silicone Gel
Nominal Voltage
12V
Size
Other, 197*165*165*165mm
Nominal Capacity
48A@3HR
| Nominal Voltage (V) | 12V | ||||||||
| Open Circuit Voltage (V/Block) | 13.1V - 13.45V | ||||||||
| Number of Cells (Per Block) | 6 Cells | ||||||||
|
Rated Capacity (Ah, 25℃) |
2h rate (to 1.75V/Cell) | 40Ah | |||||||
| 3h rate (to 1.75V/Cell) | 45Ah | ||||||||
| 5h rate (to 1.80V/Cell) | 48Ah | ||||||||
| 20h rate (to 1.85V/Cell) | 50Ah | ||||||||
| Nominal Weight (Kgs) | Approx. 13.5Kgs | ||||||||
| Dimension (L X W X H, Total Height. mm) | (226mm±2) X (120mm±2) X (175mm±2), (175mm±2) | ||||||||
| Container Material | Enhanced ABS | ||||||||
| Charge Voltage | Float (V/Block) | 13.50V - 13.80V | |||||||
| Cycle (V/Block) | 14.50V - 14.80V | ||||||||
| Maximum Discharge Current (A) | 300A (5s) | ||||||||
| Maximum Charge Current (A) | 5A | ||||||||
| Non-Cadmium Design, Environment-friendly: Chilwee Battery has adopted internationally leading technology - container formation non-cadmium production technology, which is in the leading position in the industry. It helps to save energy 28.5%, save water 90%, and non-discharge of waste water. | |||||||||
| Super Long Voyage Ability: The discharge time of Chilwee battery is prolonged. Active additive has been added in postive plates, so as to good consistency of the formated active material. This enables the battery has high charge/discharge efficiency, and the power output is elevated. | |||||||||
| Strong Motive Power: Super thin plate design is adopted to increase the area of the plates macroscopic electrochemical reaction, which enables the battery has excellent large current discharge ability. Adopting cast-weld process to reduce the battery's internal resistance, and it improves battery charging acceptance capability. Battery's charge/discharge efficiency is high. | |||||||||
| High Durability: The Chilwee battery has excellent cycle life which can reach 600 cycles @ 80% DOD. The battery banks has good consistency. Enhanced ABS material has been adopted on battery container and lid, and the battery is well sealed to prevent leakage. | |||||||||
| High Reliability and Safety: Improved negative material prescription and increased micropoles structure at negative helps to improve a lot on low temperature charge/discharge performance. Low water loss rate, high temperature resistance, and the pressure value of Open/Close safety valve is accurate to prevent battery bulging. Safety valve and acid filter can efficiently prevent sparks splashed into battery to ensure safe operation. |
