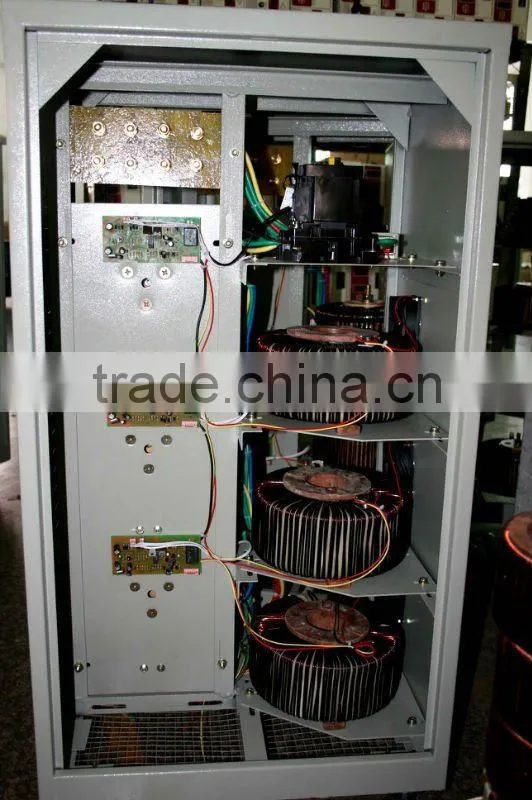

Help CenterSVC Industrial Full Automatic Voltage Regulator
Related Products
-
Electronic Voltage Regulator SVC Full Automatic Voltage RegulatorNegotiableMOQ: 100 Pieces -
Motor Control System Full Automatic Voltage RegulatorNegotiableMOQ: 100 Pieces
-
Favorable Price Full Automatic Voltage Regulators Full Automatic Voltage RegulatorNegotiableMOQ: 100 Pieces
-
Single Phase SVC Full Automatic Voltage RegulatorNegotiableMOQ: 100 Pieces
-
SBW Three Phase Compensated Voltage StabilizerNegotiableMOQ: 100 Pieces
Specifications
1.Wide voltage range2.Input voltage display,output voltage display
3.Output delay time selectable
Specifications:
1)Input voltage:160-270V
2)Output voltage:220 10%
3)Phase:single-phase or three-phase
4)Frequency:50/60HZ
5)Ambient temperature:-5~+40c
6)Ambient humidity:less than 90%
7)Temperature rise(input voltage200v,output voltage 220v and rated load):less than 75°C
8)Insulation resistance:more than 3m at DC 500v
Input |
Phase |
Three phase |
Voltage |
280-430V AC |
|
Frequency |
50HZ/60Hz; |
|
Adjusting time |
< 1s (when input voltage has a change of 10%) |
|
Output |
Voltage |
380V±3% AC |
Frequency |
50/60HZ |
|
Loading power factor |
0.8 |
|
Protection |
Over Volt. |
yes |
Overheating protection |
yes |
|
Over load /short Circuit |
yes |
|
Delay |
3~8sec |
|
Efficiency |
AC-AC |
>90% |
Environmental |
Operating Temperature |
-5°C~+40°C |
Storage Temperature |
-10~+50°C |
|
Humidity |
20% to 90% |
|
Others |
Waveform distortion |
No additional waveform distortion |
Insulation resistance |
≥3MΩ |
Model & Spec
Three-phase four wire | ||||
| ||||
Spec.(KVA) |
Products size D×W×H(CM) |
PackageD×W×H(CM) |
Weight(KG) |
Qty |
SVC- 1.5 |
40×36×17 |
52×48×28 |
18 |
1 |
SVC- 3 |
42×38×19 |
54×50×31 |
23 |
1 |
SVC- 4.5 |
42×38×19 |
54×50×31 |
27 |
1 |
SVC- 6 |
37×28×68 |
48×40×78 |
39 |
1 |
SVC- 9 |
35×33×78 |
48×45×90 |
48 |
1 |
SVC- 15 |
43×38×73 |
55×51×90 |
85 |
1 |
SVC- 20 |
43×51×91 |
64×55×106 |
124 |
1 |

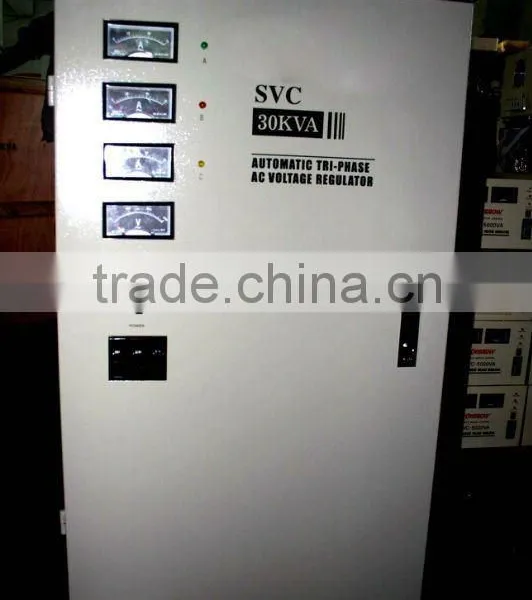

SVC- 30 |
43×51×91 |
64×55×106 |
197 |
1 |
SVC- 45 |
65×43×95 |
78×55×110 |
260 |
1 |
SVC- 60 |
77×55×100 |
90×67×115 |
260 |
1 |
SVC- 80 |
77×55×100 |
90×67×115 |
290 |
1 |
SVC- 100 |
77×55×100 |
90×67×115 |
350 |
1 |
