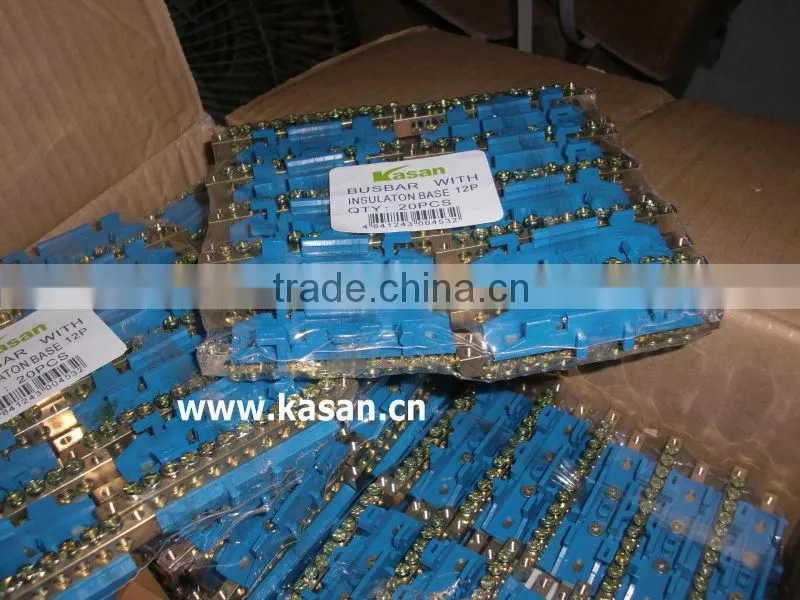

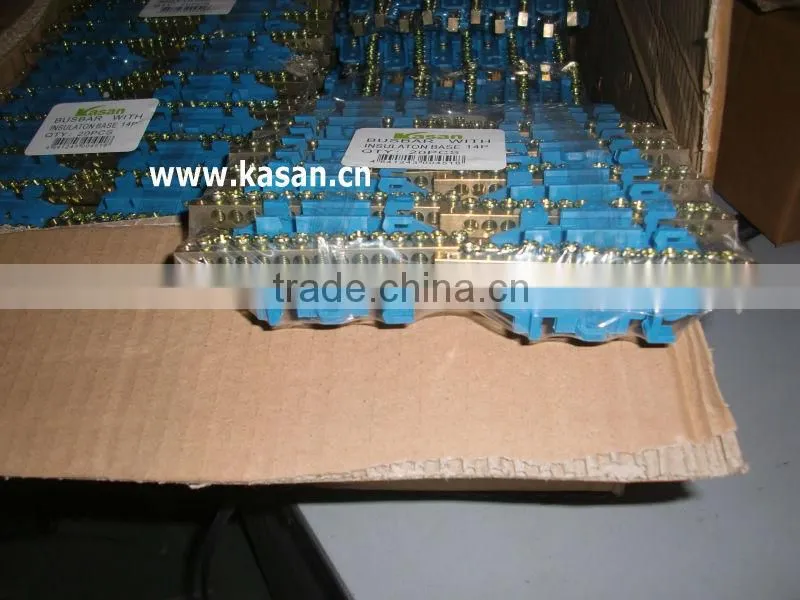

Brass Terminal Block With Plastic Base
US$ 0.1 - 0.2
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KASAN Terminal Block
Model Number:
Terminal Block
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
KASAN Terminal Block
Model Number
Terminal Block
Type
Other, Terminal Block
Specifications
Brass Terminal Block with plastic baseBrass Terminal Block with plastic base
Specifications
pluggable Brass Terminal block
Pitch:5.08mm
Poles:2P-24P
Pin Header: Brass, Tin plated
Brass terminal block
Plastic base :PC
Insert:Brass
Screw:Iron,zinc plated
Working Temperature:-35°C to 120°C
Color:blue and green as standard
we can supply any size brass bar according to customer require *OEM service
| Item No. | Spec. | Cable hole | Screw size | Installation (mm) | Overall(mm) | Packing |
| WxH - hole | diameter(mm) | L | L1xW | pcs/ctn | ||
| 6x9-4 | Ø5.2 | M4x8 | 64.5 | 76.5x12.5 | 1000 | |
| 6x9-6 | Ø5.2 | M4x8 | 77.5 | 89.5x12.5 | 1000 | |
| KG001N | 6x9-8 | Ø5.2 | M4x8 | 90.5 | 102.5x12.5 | 700 |
| KG001 | 6x9-10 | Ø5.2 | M4x8 | 103.5 | 115.5x12.5 | 500 |
| 6x9-12 | Ø5.2 | M4x8 | 116.5 | 128.5x12.5 | 500 | |
| 6x9-14 | Ø5.2 | M4x8 | 129.5 | 141.5x12.5 | 300 | |
| 6x9-16 | Ø5.2 | M4x8 | 142.5 | 154.5x12.5 | 300 | |
| L= Installation dimensions | ||||||
| W= Width of plastic base | ||||||
