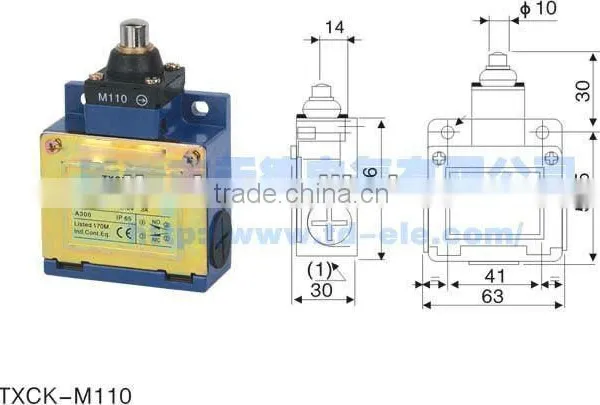

LIMIT SWITCH Txck_m_110

Name: LIMIT SWITCH Txck_m_110
Brand: KASAN
SKU: 134833403
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

KASAN

Model Number:

txck_m_110

Yueqing Kasan Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO SHANGHAI ETC.

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name KASAN

Model Number txck_m_110

Protection Level IP65

Operating Temperature -10℃-+80℃

Max. Current 10A

Max. Voltage 380V

Specifications

TXCK limiting switch
220V / 380V
5A/10A/20A; IP65/IP66
XCK-S,XCK-K,XCK-P,XCK-M...
Application: Machine tools, Machi

1. Certification: CCC,CQC

2. Specifications

1) TXCK-S: XCK-S102, XCK-S131, XCK-S101, XCK-S141;

2) TXCK-J: XCK-J110,XCK-J115;

3)T XCK-P: XCK-P121,XCK-P102,XCK-P106,XCK-P110,XCK-P118;

4) TXCK-M: XCK-M102,XCK-M110,XCK-M115,XCK-M106,XCK-M121;

5) D4D: D4D-1120,D4D-1121;

6) 83 8410

Protection degree		IP67
Life	Mechanical	107 time
Life	Eleatrical	Five hundred thousand times
Operation speed		1mm ~ 1m /s
Operation frequency	Mechanical	120times/m
Operation frequency	Eleatrical	30times/m
Insulation resistance		>100MΩ DC 500V
Contact resistance		<25 MΩ(Initial value)
With stand voltage(50/60Hz)	Between the terminals of same pole	AC 1,000V
	Between charged metal parts	AC 1,500V
	Between non-charged metal parts of each terminal	AC 1,500V
Vibration	Misoperation	10~50Hz (amplitude) 1.5mm
Impact	Durable	> 1,000m /s 2
Impact	misoperation	> 300m /s 2
