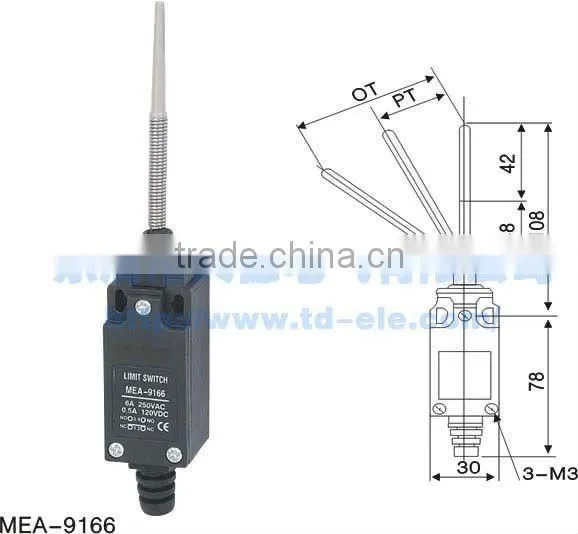

Mea_9166 Series Limited Switch

Operating speed

0.01mm to 50cm/sec(at pin plunger)

Operating frequency

120 operation/min

Contact resistance

25mΩ max.(initial)

Insulation resistance

100mΩ min.(at 500 VDC)

Dielectric strength

1,000VAC,50/60Hz for 1 minute between non-continuous terminals 2,000VAC,50/60Hz for 1 minute between current carrying and non-current-carrying parts and between each terminal and ground

Vibration

Malfunction durability:10 to 55Hz,1.5mm double amplitude

Shock

Mechanical durability:1,000m/s2(approx.100G`S)

Malfunction durability:300m/s(approx.30G`S)

Ambient temperature

Operating : -10 to +70

Humidity

95% RH max.(at +20 to +35)

Service life

Mechanically:10,000,000 operations min.(at rated or value)

Electrically:500,000 operation min.

Degree of protection

IEC:IP65

Rated voltage(V)

Non-inductive load(A)

Inductive load(A)

Resistive load

Lamp load

Inductive load

Motor load

N.C.   N.O.

N.C.   N.O.

N.C.   N.O.

N.C.   N.O.

125VAC

250VAC

480VAC

10

10

3

3      1.5

2.5    1.25

1.5    0.75

10

10

2.5

5      2.5

3      1.5

1.5    0.75

8VAC

14VDC

30VDC

125VDC

250VDC

10

10

8

0.5

0.25

3      1.5

3      1.5

3      1.5

0.4

0.2

6

6

6

0.05

0.03

6      5

6      5

5      2.5

0.05

0.03
