Surface Mounting 1P,3P Metal Distribution Enclosure
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Kasan Metal Enclosure | |
| Model Number | EMMS Metal Enclosure |
Product Description
Specifications

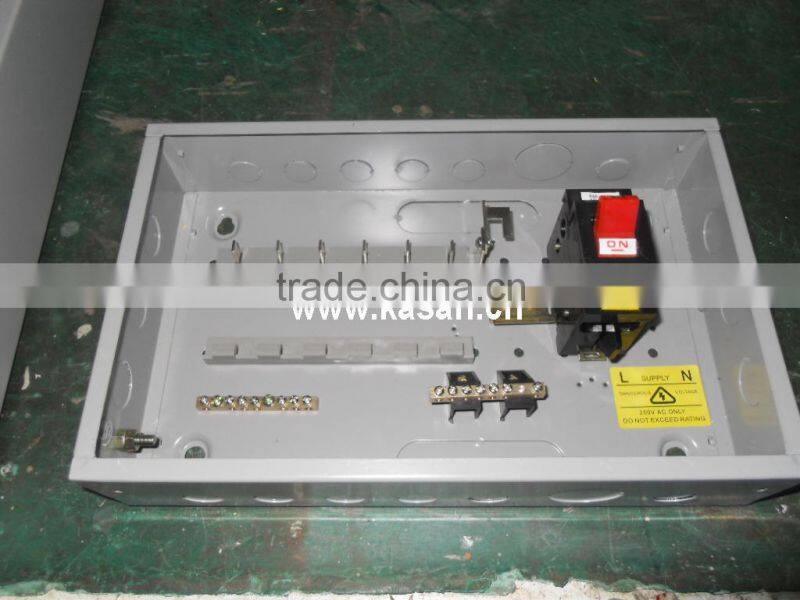

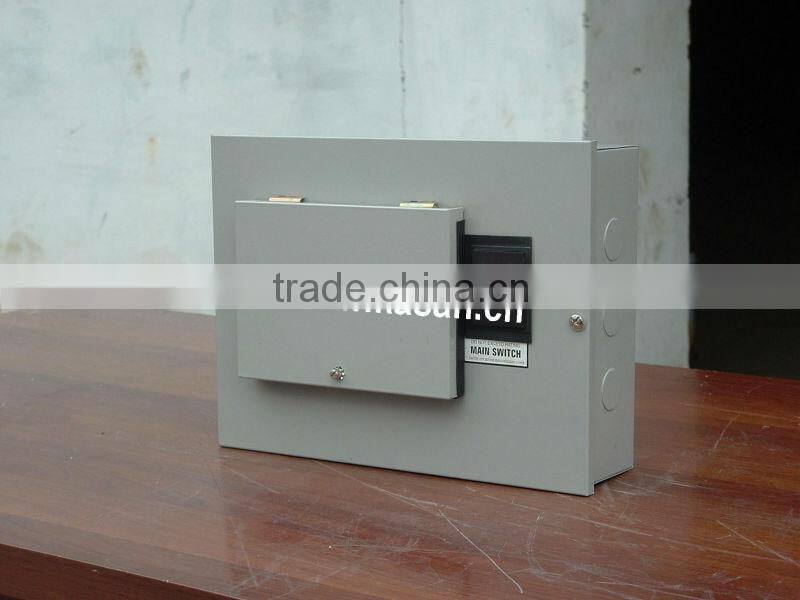

Surface Mounting 1P,3P Metal Distribution EnclosureSurface Mounting 1P,3P Metal Distribution Enclosure
Specifications
1.rated voltage 230V, 400V
2.rated current up to 100A
3.operatomg with conscience
4.CE,ISO9001 and Soncap certificate
The Surface Mounting 1P,3P Metal Distribution Enclosure is applied to the terminal protection protection distribution board.The main switch is 100A-2P 100A-3P disconnector switch. The brach switch is miniature circuit breaker. The distribution board has the function of delay and instantaneous overload protection.The distribution box is made out of high quality galvanized steel sheet of up to 0.6-1.2mr thickness. Series of type panel board in good quality and competitive price.
1)single and three phase
2)cold roll sheet steel or stainless steel
3) indoor/outdoor usage
distribution box
distribution box
Specifications:
1) AC 50 / 60Hz circuits
2) Rated voltage up to 415V
3) Rated current up to 125A
4) One main switch, MCBs mounted, or with a leakage switch
5) Surface mounting, single (4 - 12 ways) and three-phase
(4 - 12 ways) available
6) Body materials: cold-rolled steel, 0.6 / 0.8 / 1.0mm thickness
7) Finish: plastic powder coating metal enclosure

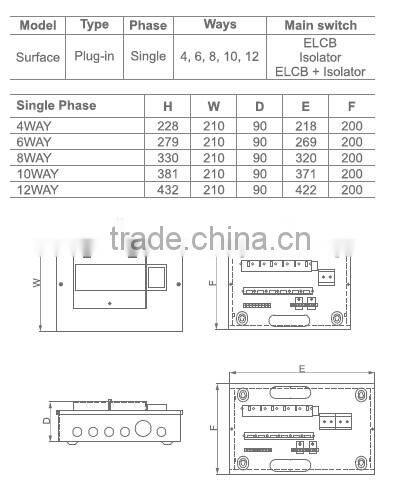

Single Phase

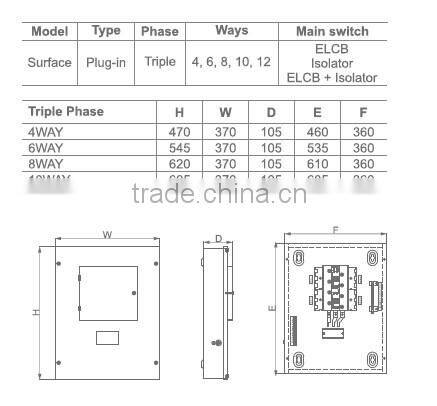

Triple Phase
