Home > Electrical & Electronics > Breaker & Protector > Circuit Breaker > ID Residual Current Circuit Breaker MCB
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KASAN
Model Number:
ID
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI ETC.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
L7 Circuit BreakerNegotiableMOQ: 100 Pieces -
MNL Residual Current Breaker Devices (RCCB,mcb, RCD)NegotiableMOQ: 100 Pieces
-
NF-CS,CW Moulded Case Circuit Breaker(mccb)NegotiableMOQ: 1 Piece
-
Mitsubishi MCCB Moulded Case Circuit Breaker NF-CSNegotiableMOQ: 100 Pieces
-
MCCB (Moulded Case Circuit Breaker) NF-CWNegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
KASAN
Model Number
ID
Type
Earth Leakage
Poles Number
Other, all have
Specifications
1.240/415V, 10, 30, 100, 300, 500mA2.Breaking Capacity 6KA
3.IEC61008
4. Two years Guarantee
| Application |
| ID RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk. Thus, it is suitable to avoid the shock hazard and fire caused by earth leakage. The RCCB is mainly suitable for use in varieties of plants and enterprises, building construction 1 phase 230V and 3 phase 400V 50/60Hz. RCCB is not suitable for use on DC pulse system. |

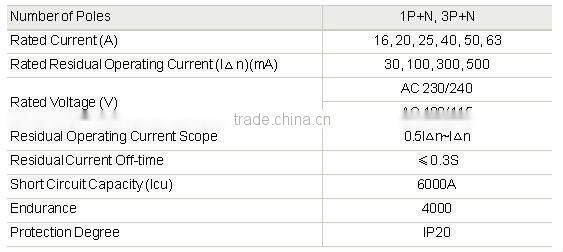

| Specifications |

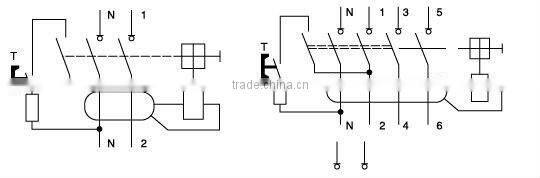

Operation Principle

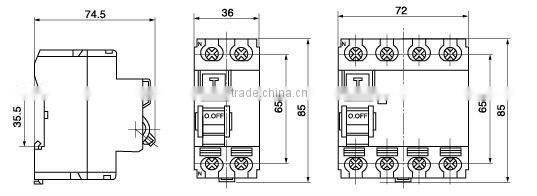

Overall And Mounting Dimensions (Unit: mm)
