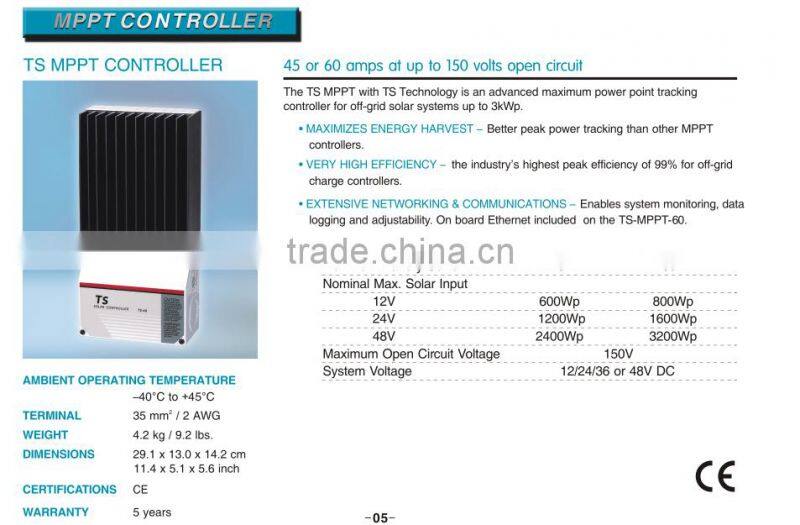

Morningstar’s TriStar MPPT solar controller with TrakStar Technology™ is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW. The controller provides the industry’s highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers. The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. This product is the first PV controller to include on-board Ethernet for a fully web-enabled interface and includes up to 200 days of data logging.
Maximizes Energy Harvest
Our TrakStar MPPT Technology features:
• Better peak power point tracking than other MPPT controllers
• Very fast sweeping of the entire I-V curve
• Recognition of multiple power points during shading or mixed PV arrays
• Excellent performance at sunrise and low solar insolation levels
Extremely High Reliability
• Robust thermal design and no cooling fans
• Parallel circuit design provides less stress and longer life for electronic components
• No mechanical relays
• Extensive electronic protections including PV short circuit protection
• Epoxy encapsulated inductors and conformally coated printed circuit boards
Very High Efficiency
• Peak efficiency of 99%
• Proprietary tracking algorithm minimizes power losses
• Low self-consumption
• Continuous operation at full power to 45°C without need to de-rate
• Selected electronic devices with higher ratings to minimize losses from heating
Extensive Networking and Communications Capabilities
Enables system monitoring, data logging and adjustability. Uses open standard MODBUS™ protocol and Morningstar’s MS View software.
• Meterbus: communications between compatible Morningstar products
• Serial RS-232: connection to a personal computer
• EIA-485: communications between multiple devices on a bus
• Ethernet: fully web-enabled interface to a local network or internet; view from a web browser or send email/text messages.
Metering and Data Logging
• Optional TriStar meter and remote meter provides detailed operating data, alarms and faults
• Three LED’s display system status
• Up to 200 days of data logging via meters or communications ports
◊ Surge protection
◊ high temperature protection
◊ Backflow prevention protection
◊ Load short circuit protection
◊ Over current protection
◊ High voltage protection
◊ Low voltage disconnect protection
Model |
TS-MPPT-30 |
TS-MPPT-45 |
TS-MPPT-60 |
System voltage |
12/24/48V |
12/24/48V |
12/24/48V |
Max.current |
30A |
45A |
60A |
Max.power of pV cells input |
1600W |
2400W |
3200W |
Working temperature |
-40℃ ~ +45℃
|
||
System voltage range |
8~72Vdc |
||
Self-consumption |
2.7W |
||
Highest efficiency |
99% |
||
Size |
291*130*142(mm) |
||
|
Weight |
4.2Kg |
||
| Certification |
• Manufactured in a Certified ISO 9001 Facility |
||
