LC1-K06,K09,K12 New Type LC1-K Series Mini AC Contactor

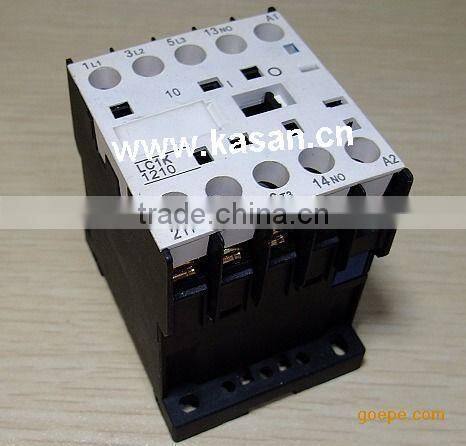

LC1-K06,K09,K12 New Type LC1-K Series Mini AC Contactor photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KASAN, KASAN
Model Number:
LC1-K AC Contactor
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name KASAN, KASAN
Model Number LC1-K AC Contactor
Electricity Type Other, AC, AC
Number of Pole 3
Phase Other, 3, 3
Main Circuit Rating Current 100a



LC1-K06, K09, K12 New Type LC1-K Series  Mini AC Contactor

  LC1-K06, K09, K12 New Type LC1-K Series  Mini AC Contactor

Product Description



1. LC1-K Series AC cortactor is suitable for use in the circuit up to the rate and frequent starting, controlling the AC motor.

2. The addtion of auxiliary contact group to the contactor, combined with the proper thermal relay, can act to protect the circuit bound to overload.

3. The LC1-K Series  AC Contactor complies with IEC947-2,VDE0660 and BS5452 .





Feature



LC1-K Series Mini AC Contactor
1.AC 50/60Hz,AC3
2.LC1-K06, K09, K12
3.Light weight, small volume
4. Fast delivery



Specifications



TypeLC1-K06LC1-K09LC1-K12
Rated current at AC3 (A)6912
Rated working current (Ie)A57.510
Conventional thermal current(Ith)A162020
AC-3 Use Group Control Power KW220V1.52.23
380/415V2.245
440/500V345
660V345
Rated working voltage (Ue)V380 660
Rated insulation voltage (Ui)V690
AC-3 (6Ie Ie)Electrical life (times)0.5 10 6
Operation frequency h-11200
AC-4 (6Ie Ie)Electrical life (times)10 10 4
Operation frequency h-1300
Mechanical life3 10 6
LC2-D205Conventional thermal current6A
Electrical life (times)AC-15(360VA)0.5 10 6
DC-13(33W)





Photo of Products



LC1-K06,K09,K12 New Type LC1-K Series Mini AC Contactor

LC1-K06,K09,K12 New Type LC1-K Series Mini AC Contactor

Yueqing KASAN Electric Co.,LTD, is one of the best manufacturer and exporter companies in Liushi,Wenzhou. We specialize in export various low voltage electrical products with over 50 series and more than 6000 specifications have been producing electrical goods for more than 10 years in this line, which also a BV assessed gold supplier on Alibaba.

Our Promise to customer:

    1.     Quality Guaranteed

    2.     Delivery time guarantee

    3.     Provide superior service to fit customer need

LC1-K06,K09,K12 New Type LC1-K Series Mini AC ContactorLC1-K06,K09,K12 New Type LC1-K Series Mini AC Contactor



LC1-K06,K09,K12 New Type LC1-K Series Mini AC ContactorLC1-K06,K09,K12 New Type LC1-K Series Mini AC ContactorLC1-K06,K09,K12 New Type LC1-K Series Mini AC ContactorLC1-K06,K09,K12 New Type LC1-K Series Mini AC ContactorLC1-K06,K09,K12 New Type LC1-K Series Mini AC ContactorLC1-K06,K09,K12 New Type LC1-K Series Mini AC Contactor



FAQ:





Q 1: what is your minimum order quantity for whole of your products ?
A1: Most of the items no have MOQ requirement, you can even buy 1pc




Q 2: how about the delivery time ?
A 2: It depend on your order quantity, some items we have in stock, but some items need produce.





Q 3: Could you offer Form A or C/O ?
A3: It totally no problem. We can issue Form A and C/O as per customer’s need once boat leave.




Q 4: Would you accept OEM ?
A 4: OEM. totally no problem for us. But it require bigger Q’ty than normal.




Q 5: We want to know month capacity.
A 5: 360000pcs/month




Q 6: Where is your market?
A6:Our products are popular in US,UK,Ireland,Sweden,France,South of America, Asia, many of Africa  countries and so on.




Q 7: what kind of certificate you have ?
A 7: Our company already achieve ISO, and for products, we have CE, SEMKO,CB, VDE(pending) .




Q 8: what kind of payment terms can you offer ?
A 8: Normal terms of payment in international business such as T/T, Western Union, Paypal, L/C at sight




Usual way of payment for by sea goods:



30% advance ,70% balance before shipment



Compensation term:



Q9: If we bought your products, but found quality problem, how to solve?



A9: After confirmed, if the quality problem is caused by us not for outer sector,We will compensate each piece to customer.
