LE1-D 09/12/18/25/32/40 Old Type Magnetic Motor Starter

Yueqing Kasan Electric Co., Ltd.
LE1-D 09/12/18/25/32/40 Old Type Magnetic Motor Starter thumbnail-1
LE1-D 09/12/18/25/32/40 Old Type Magnetic Motor Starter thumbnail-2
LE1-D 09/12/18/25/32/40 Old Type Magnetic Motor Starter thumbnail-3
LE1-D 09/12/18/25/32/40 Old Type Magnetic Motor Starter photo-1
LE1-D 09/12/18/25/32/40 Old Type Magnetic Motor Starter photo-2
LE1-D 09/12/18/25/32/40 Old Type Magnetic Motor Starter photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KASAN
Model Number:
LE1-D09/12/18/25/32/40 Motor Starter
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name KASAN
Model Number LE1-D09/12/18/25/32/40 Motor Starter
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage 380v
Main Circuit Rating Current Other, 9,12,18,25,32,40A

LE1-D 09/12/18/25/32/40 Old Type Magnetic Motor Starter




LE1-D old type Motor Starter

LE1-D magnetic starter is mainly applied to circuit of AC 50 or 60Hz, voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, safe and reliable performance etc.


General Description:


LE1-D series magnetic motor starter are suitable for 50Hz or 60Hz, rated voltage up to 660V, current up to 95A circuit. In order to protect motor starting, accelerating the motor to rated rev, against overload operation and artificially breaking the circuit of protected motor.

Structure Feature:

1. Sealed: Plastic box LE1-D09~D32

and iron box platstic coated LE1-D40~D95, protection up to IP65;

2. Operation system with manual "START" and "STOP" buttons. With thermal overload relay consisting a inversable starter;

3. Install different accessories derive many kinds of other products;

4. Select LC1-D contactor with standard 35mm rail, which can be fixed directly at the base of starter. Wires extracted from the three phase of the thermal overload relay can be inserted the three phase main contacts of the contactor, easy assembly and connection.

Technic Data

Starter modelRated currentControlled motor maximum powerMatched Thermal relay
220V~230V380V~400V415V440V500V660V~690V
LE1-D0992.24445.55.5LR2D1312
LR2D1314
LE1-D121235.55.55.57.57.5LR2D1316
LE1-D181847.5991010LR2D1321
LE1-D25255.51111111515LR2D1322
LR2D2353
LE1-D32327.515151518.518.5LR2D2355
LE1-D40401118.522222222LR2D3353
LR2D3355
LE1-D5050152230303030LR2D3357
LR2D3359
LE1-D656518.53037373737LR2D3361
LE1-D8080223745455545LR2D3363
LR2D3365
LE1-D9595254545455545LR2D3365

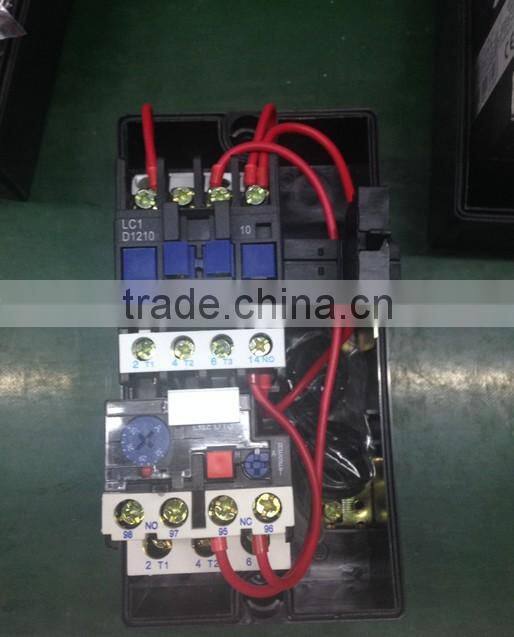

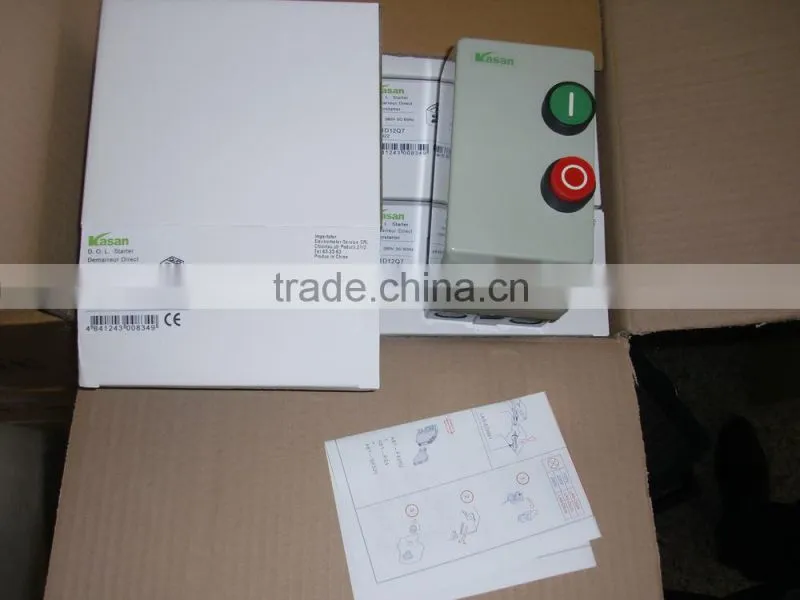

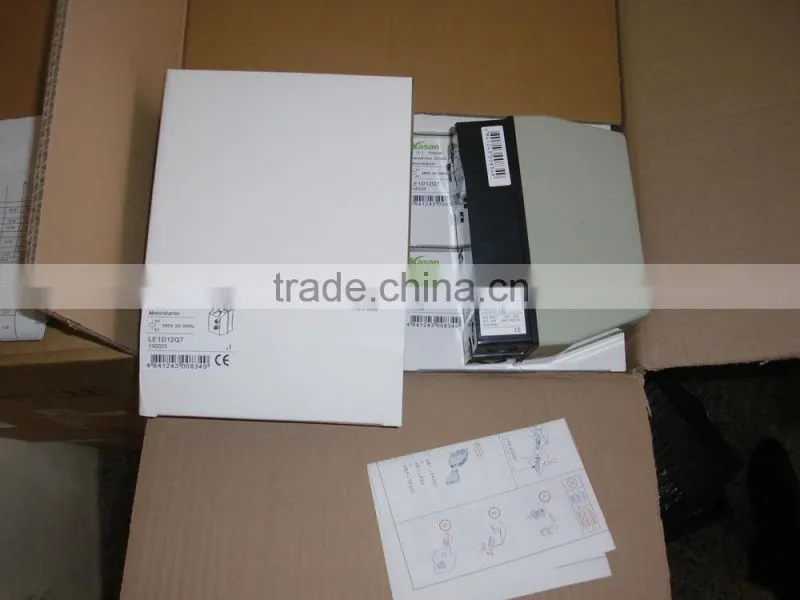

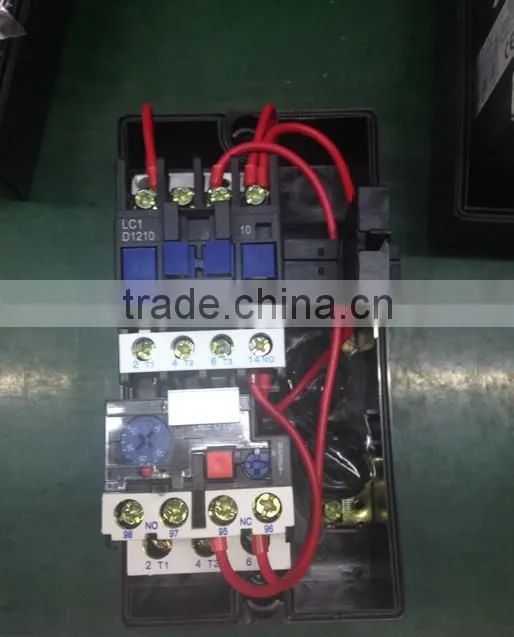

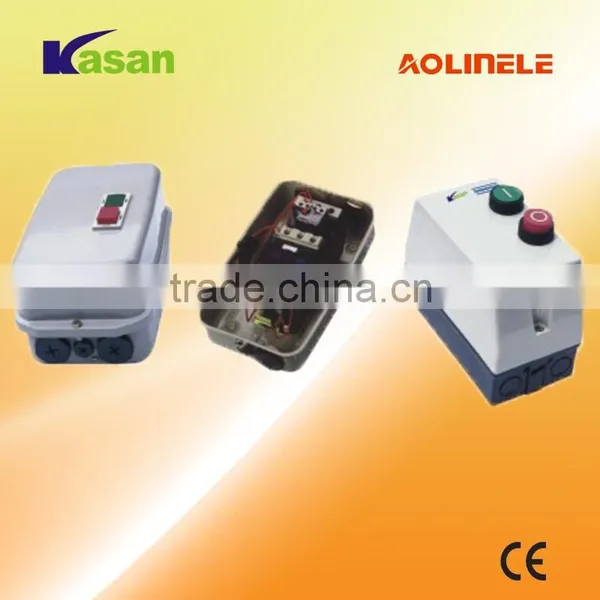

Photos of Product:

LE1-D 09/12/18/25/32/40 Old Type Magnetic Motor StarterLE1-D 09/12/18/25/32/40 Old Type Magnetic Motor StarterLE1-D 09/12/18/25/32/40 Old Type Magnetic Motor StarterLE1-D 09/12/18/25/32/40 Old Type Magnetic Motor StarterLE1-D 09/12/18/25/32/40 Old Type Magnetic Motor Starter
