LC2-D Mechanical Interlocking Contactor
Application:
LC2-D of mechanical chain contacts (hereinafter referred to as mechanical chain contacts) is in the LC1-D series AC contactor, based on the installation of machinery assembled chain body. It applies to AC 50 or 60Hz, rated voltage up to 660V and below, rated current up to 95A and the following circuit, for long-distance direct control of three-phase squirrel-cage motor starting, stopping and reversing operation. It has a mechanical chain, can ensure the safe operation of two reverse contacts to prevent short circuit accidents. With JRS1 series thermal relay contacts, which can be made for motor overload protection.
This series of touch products meet IEC60947-4-1, GB14048.4 standards.
Ambient air temperature of -5 °C ~ 40 °C, and the 24h average does not exceed 35 °C.
Altitude: Altitude less than 2000m.
Atmospheric conditions: 40 °C, relative humidity of the atmosphere does not exceed 50%; at a lower temperature allows a higher relative humidity, the wettest month of the monthly minimum temperature level does not exceed 25 °C, the monthly mean maximum relative humidity of not more than 90%, due to temperature changes in the product of condensation occurring on the measures must be taken.
Pollution degree: 3;
Installation Category: III class;
Installation conditions: the mounting surface and the vertical gradient is not greater than ± 5 °.
Impulsive vibration: Product should be installed and used in the absence of a significant shake and shock, vibrations LC1-D AC Contactor.
Specification:

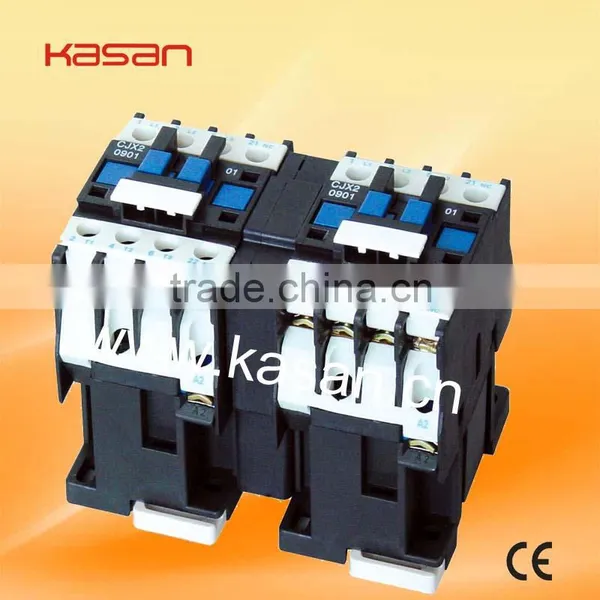

Photo:
Yueqing KASAN Electric Co.,LTD, is one of the best manufacturer and exporter companies in Liushi,Wenzhou. We specialize in export various low voltage electrical products with over 50 series and more than 6000 specifications have been producing electrical goods for more than 10 years in this line, which also a BV assessed gold supplier on Alibaba.
Our Promise to customer:
1. Quality Guaranteed
2. Delivery time guarantee
3. Provide superior service to fit customer need
Q 1: what is your minimum order quantity for whole of your products ?
A1: Most of the items no have MOQ requirement, you can even buy 1pc
Q 2: how about the delivery time ?
A 2: It depend on your order quantity, some items we have in stock, but some items need produce.
Q 3: Could you offer Form A or C/O ?
A3: It totally no problem. We can issue Form A and C/O as per customer’s need once boat leave.
Q 4: Would you accept OEM ?
A 4: OEM. totally no problem for us. But it require bigger Q’ty than normal.
Q 5: We want to know month capacity.
A 5: 360000pcs/month
Q 6: Where is your market?
A6:Our products are popular in US,UK,Ireland,Sweden,France,South of America, Asia, many of Africa countries and so on.
Q 7: what kind of certificate you have ?
A 7: Our company already achieve ISO, and for products, we have CE, SEMKO,CB, VDE(pending) .
Q 8: what kind of payment terms can you offer ?
A 8: Normal terms of payment in international business such as T/T, Western Union, Paypal, L/C at sight
Usual way of payment for by sea goods:
30% advance ,70% balance before shipment
Compensation term:
Q9: If we bought your products, but found quality problem, how to solve?
A9: After confirmed, if the quality problem is caused by us not for outer sector,We will compensate each piece to customer.
