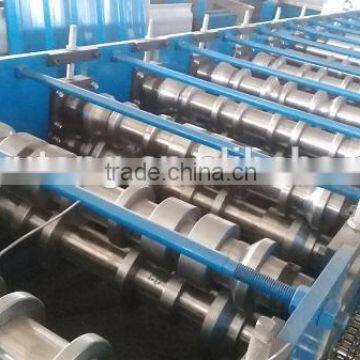

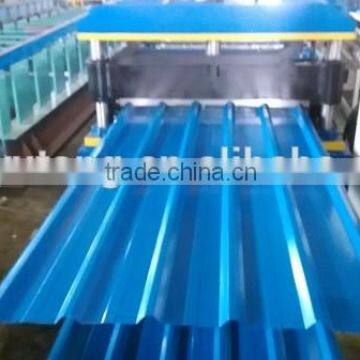

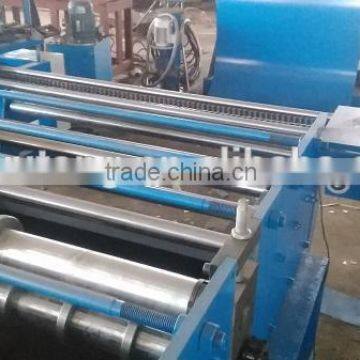

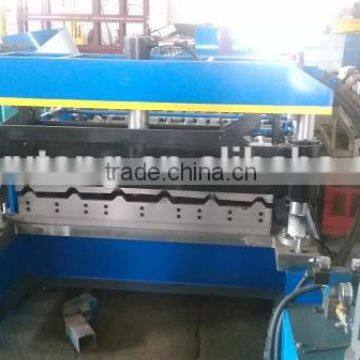

This Roll Forming Machine consist of 5T uncoiler, sheet feeding device, roll forming system, hydraulic post-cutting equipment, run out table, hydraulic station and PLC controller.
Optional: hydraulic decoiler /automatic stacker
Working Flow
Decoiling--sheet feeding--roll forming--automatic cutting--run out table
Main Parameter
No | Item | Parameter | Note | |
1 | Suitable
Material | Type | Pre-paint Steel Aluminum |
|
Width | According to profile |
| ||
Thickness | 0.30—0.70mm |
| ||
2 | Product
Specs | Cover width | According to profile | Refer to drawing |
Wave height | According to profile | |||
Length | Any length | |||
3 | Machine
Material | Active shaft | No. 45 steel tempered | Up to final design |
Roller | No. 45 steel chrome plated | |||
Cutting Blade | Cr12 quenched | |||
4 | Power Requirement | Type | 380V/3PH/50HZ | Customized |
Main motor | Up to final design | |||
Hydraulic | 5.5kw | |||
5 | Speed | Forming speed | 30-35m/min |
|
7 | Forming Stand | Up to profile | ||

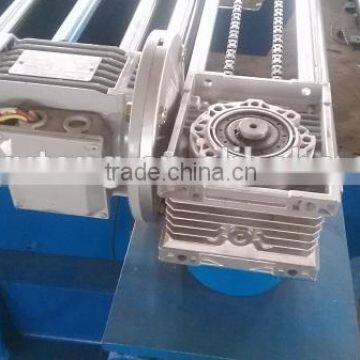

8 | Transmission style | Chain, sprocket |
| |
9 | Main machine structure | Wall Panel |
| |
10 | Type of Cutting | length-set cutting | Hydraulic cutter | |
11 | Control System | Mitsubishi PLC& transducer |
| |
12 | Product support | Run out table | ||
If you have any question pls let us know when you feel free, thank you!
