YT-R7 floor deck roll forming machine
1.Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – Run out table
2.Technical parameter
Item | Specification | |
Material | Type | galvanized coils |
Thickness(mm) | 0.8-1.2mm | |
Yield strength(mpa) | 235 | |
Roller material | 45#Chrome steel | |
Forming speed(m/min) | 15-18 | |
Output speed(m/min) | 8 | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |
Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control system | Mitsubishi PLC & transducer | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power(kw) | 11KW x 2(Up to profile) | |
Hydraulic station motor power(kw) | 4 KW | |
3. Components of machine
Decoiler | 1set |
Feeding & guiding device | 1set |
Main roll forming machine | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table | 1set |
4. Pictures
Roll forming machine
CNC processed high precision roller with chrome coated, ensure the roll forming precision and lifetime

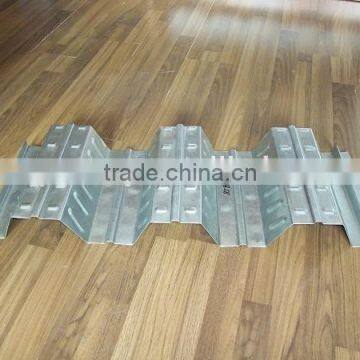

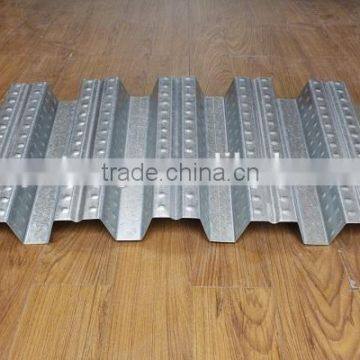

Profile
Container Loading
