This Roll Forming Machine consist of 3 T automatic decoiler, sheet feeding device, roll forming system, hydraulic post-cutting equipment, run out table, hydraulic station and PLC controller.
Optional: hydraulic decoiler /automatic stacker
Working Flow
Decoiling--sheet feeding--roll forming--automatic cutting--run out table
Main Parameter
No | Item | Parameter | Note | |
1 | Suitable
Material | Type | Pre-paint Steel Aluminum |
|
Width | 914mm | According to profile | ||
Thickness | 0.18—0.5mm |
| ||
2 | Product
Specs | Cover width | 740mm | Refer to drawing |
Wave height | 18mm | |||
Length | Any length | |||
3 | Machine
Material | Active shaft | No. 45 steel tempered | Up to final design |
Roller | No. 45 steel chrome plated | |||
Cutting Blade | Cr12 quenched | |||
4 | Power Requirement | Type | 380V/3PH/50HZ | Customized |
Main motor | 5.5kw | Up to final design | ||
Hydraulic | 3kw | |||
5 | Speed | Forming speed | 20-25m/min |
|
7 | Forming Stand | About 17 group | Up to profile | |
8 | Transmission style | Chain, sprocket |
| |
9 | Main machine structure | Guide Pillar |
| |
10 | Type of Cutting | length-set cutting | Hydraulic cutter | |
11 | Control System | Mitsubishi PLC& transducer |
| |
12 | Product support | Run out table | ||
Detailed Picture& Decription
1.Decoiler

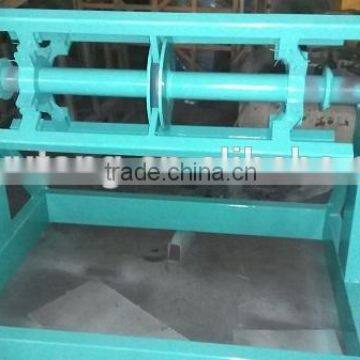

Manual Decoiler with brake
Hydraulic decoiler
2.CNC processed high precision roller with chrome coated, ensure the roll forming precision and lifetime
3.Pillar style post-cutting equipment, photoelectric switch ensure cutting precision and lifetime.
4.PLC system
5.Hydraulic unit
6.Container Loading
If you have any question pls let us know when you feel free, thank you!
