0.6m Integration T5 LED Tube Light
T5 LED tube specifications:
Material:AL+frosted PC
Transmittance: ≥85%
Rated Power:9W
Actual Power: 8W±1.0W
Input Voltage: AC85V~265V
Frequency: 50~60Hz
Power Factor: 0.95~0.98
Ambient Temperature: -20°C~45°C
Surface Temperature: 42°C ~ 45°C
LED Qty: 48PCS SMD2835 Super Bright LEDs
Lifetime: ≥50000H
Beam Angle: 180°
Luminous Flux: 800~900Lm
Light efficiency: 90~100lm/W
CRI: ≥75
CCT: 2800-3500K 4000~4500K 5500-6500K
Tube size: 600mm(L)×16mm
Warranty: 3 years CE ROHS Approval
| Model No. | UT5-9W |
| Power | 9W |
| Luminous Flux | 700lm-900lm |
| LPW | 100lm/W |
| CCT | 3000K~6000K |
| CRI | 75 |
| PF | 0.7 |
| Driver | Constant Current and Voltage IC Driver |
| Light Color | Warm White/Pure White/Natural White |
| Housing Material | Aluminum Alloy +PC |
| Cover | Frosted/Transparent |
| Dimension | 16mm*600mm |
| Voltage | AC197~265V |
| Ambient Temperature | -20℃~+55℃ |
| Rate Life | 50,000H |
| Base Type | G13 |
| Beam Angle | 120 Degrees |
| LED Number/Type | 48pcs/2835 |
| Length | 600mm |
| Warranty Period | 3 Years |
| Certification | CE, RoHs |

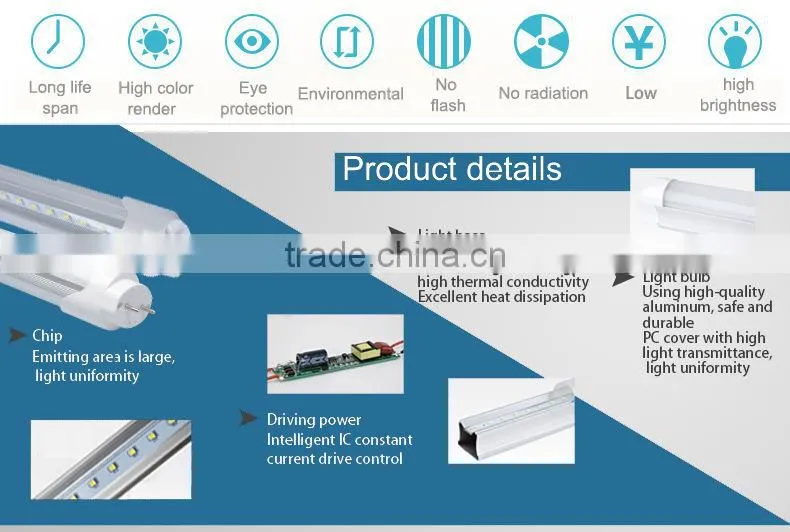

Product Structure:
T5 LED Tube Light Feature:
1. Environmental-friendly, free of mercury and lead, recyclable, no electromagnetic interference, green high-tech lighting product.
2. Surface temperature is under 60 degrees, no ultraviolet rays and near-IR radiation in the light beam.
3. No noise, suitable for the place using precise electronic device like library, office, hospital etc.
4. Ten times operation time than traditional fluorescent lamp, save power about 80% comparing with that of fluorescent bulb, less cost on maintenance.
5. Take full advantage of gorgeous colors to make lights with different colors.
6. No flicking, friendly to eyes.
8. Integrated aluminum alloy fixture design, strong and easy for installation.
9. LED Tube, optimum luminance with low power, appropriate quality and price, provides economical project, 2835 SMD LED tube light.

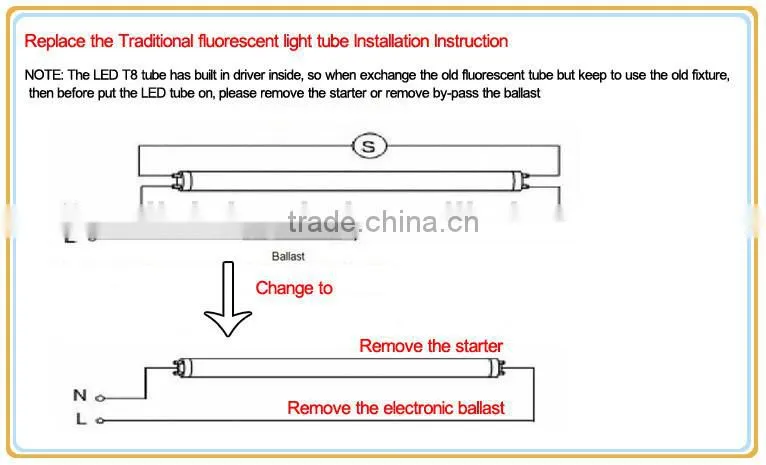

T5 LED tube Installation:
1, Replace existing fluorescent tube(magnetic ballast):Take fluorescent tube and starter from light fixture, use our led tube and led starter;
2, Replace existing fluorescent tube(electronic ballast):Take fluorescent tube from light fixture, riwiring or bypass electronic ballast in according to our connecting diagram, then use our led tube.

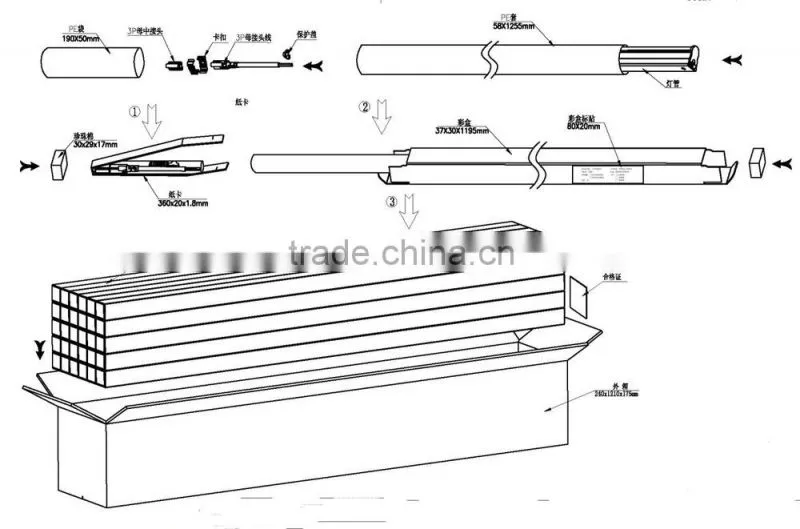

Packing size:
model |
QTY/ Carton |
Gross weight/ carton |
outer packing size |
UT5-8W |
16pcs |
7kg |
660×220×220mm |
UT5-10W |
16pcs |
10kg |
950×220×220mm |
UT5-13W |
16pcs |
14kg |
950×220×220mm |
UT5-12W |
16pcs |
16.5kg |
1260×220×220mm |
LED Tube Certification:

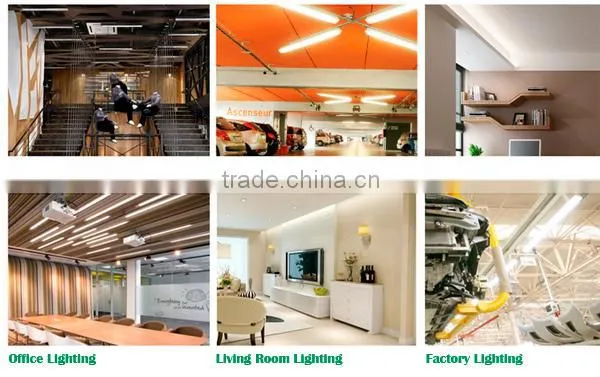

LED Tube Application:
*Home and Residential Lighting
*Reading Lights, Business Lighting
*Security Lamps, Motion Sensor Lighting
*Indoor and Outdoor Signs
*Patio/Deck/Porch Lighting, Garden Lamps
*Landscape Lighting
*Hotels/Bars/Night Clubs,Theater/Stage Lightin
*Supermarket, Shopping mall,anywhere you want
About us:
Shenzhen Ulight Electronics Co., Limited. integrated into research & development of LED production, and Led lights and commercial lighting sales, etc.
Since its establishment in 2003, we focused on the development of LED products, the production, sales and service, and committed to provide high- quality
product solutions, which is currently among the large-scale professional manufacturer of LED products in China.

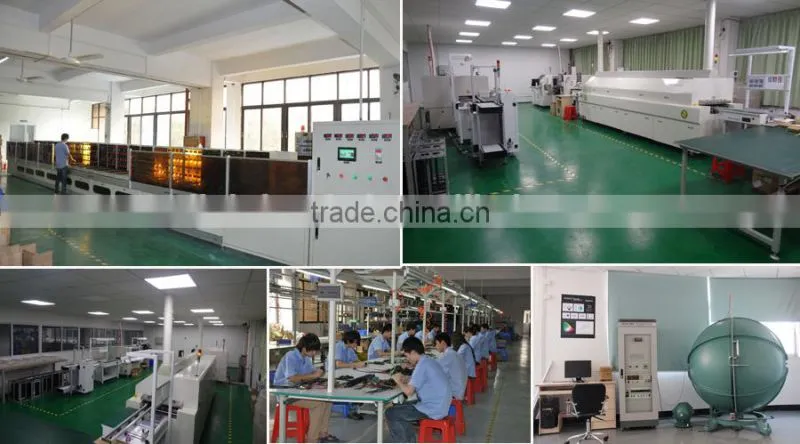

Ulight has advanced production equipment, testing equipment and production technology, gathering a number of professional staff with skills and management ability.
In order to provide better products and more excellent service, we keeping improve ourselves all the time.
Welcome the friends from different countries and regions, we are glad to cooperate with you, and create better lighting system in future.

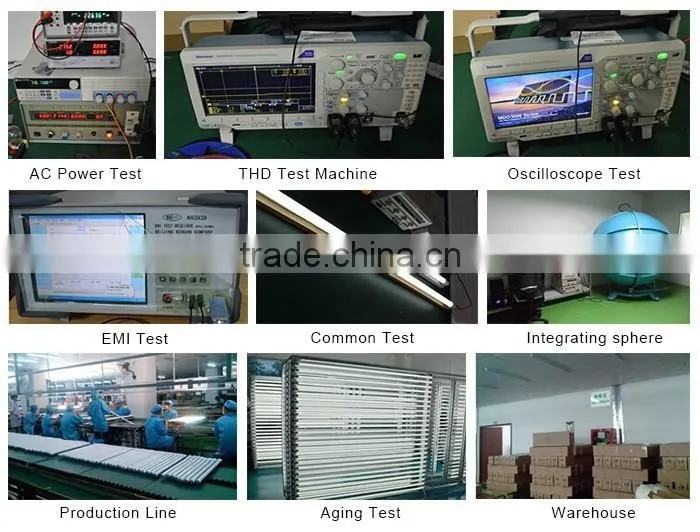

Quality Controll:
100% of the lamps will be tested and keep lighting for 10hours , and part of them will be kept lighting for 24 hours, to test quality reliability. We will also test the lamps' temperature and other parameters after 24 hours' lighting.Then after they are cool, we again test 100% of the lamps to see if they still work well .
Each lamp should pass all these QC procedures before shipping to customer.
Trade Term:
1.Payment: T/T Paypal Western Union
2.Production lead time for 100~500pcs: 10days, 500~1000pcs:15days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.Discounts are offered based on order quantities
7.MOQ:10pcs
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM
