small grain roller mill,vertical roller mill,roller flour mill

FOB Price

USD $1,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Xingang
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Hebei, China	Brand Name:	Flour Machine
Model Number:	Flour Machine	Production Capacity:	60-90% adjustable as customers' request	Voltage:	380V
Power(W):	50-1000Kw	Weight:	15-800Tons	Dimension(LWH):	as demands
Certification:	ISO9001	Warranty:	one year spare parts free	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

small grain roller mill,vertical roller mill,roller flour mill

About our company:

Hebei Jing Gang Machinery Co., Ltd. is a manufacturer of complete set steel structured flour mill plant. The flour plant is designed with a compact structure, is easily installed and operated, requires a low initial investment, and is the first choice for medium and small wheat flour mill plants.
We are one of the top professional flour mill machinery manufacturers. Our newly developed wheat flour milling machine,adopts a double arc flank profile belt, which has features such as a balanced transmission, low noise, and unique roll bearings. Compared to normal wheat flour mills, it is practical to operate and stable. Moreover, it is sensitive to changes in the clutch gate of roller mills. It can be controlled manually pneumatically for convenience. With the motor inside and a compact structure, it is completely enclosed, thus the operation is safe and reliable.

Pruduction Description

-------------------------------------------------------------------------------------------------------------------------------------------

Complete set of maize flour mill machinery can be divided into four parts: cleaning part, milling part, packing part:

1. Cleaning part

to clean out the middle and small impurity from maize. e.g., dust, stone, magnetic material, maize was bitten by insect and so on.Includes beating, screening, destoner, magnetic separator and dampening. This section is to prepare for milling part and to protect the machinery as well.

Cleaning & Conditioning system:

Pre-cleaning

In most cases, the raw materials delivered to the mills are not pure grains.

So we need clean the grain first use Cylinder pre-cleaner

For the more dirty grain and the bigger capacity .

Cleaning section

to clean out the middle and small impurity from grain , including Vibrating sieve, Magnetic separator, Wheat scourer, Gravity Classify Destoner, Plan-revolving sifter

Clean out impurities and protect the machinery as well

Dampening system

We use Wheat Washer, Dampener to give rich moisture to the grain for the next step milling .

1.Keep complete bran :remove the Endosperm from the bran.
Guarantee the flour quality and improve the flour extraction rate .
2. Easy milling : After water in the endosperm increases, its strength is reduced, moving the grinding consumption decreased and endosperm easily pulverized into a powder.
3. Easy separation: the bonding force between the bran and endosperm weakened, easy separation of the bran and endosperm

2. Milling part

The second step, to mill the grain and separate the flour, bran and other by-product:

(1) Mill: mill the grain to break the integrity by the roller moving

(2) Sifter: to separate the flour, bran and other by-product, also separate large size and small size to ensure flour quality.

Milling & Sifting system:

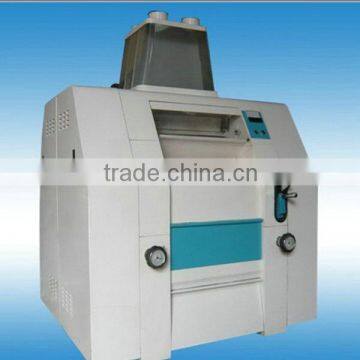

Mill	Roller Mill Flaking The roller mill is by far the most important grinding machine in a mill.	The endosperm is gradually reduced in particle size by running it between a series of pairs of rotating steel rollers, either corrugated or smooth, and is separated from the bran and germ by running it over sieves. All pairs of rollers in a roller mill have one slow mill and one fast one. The rolls turn in opposite directions, toward each other, pulling the stock between them.
Sifter	Double bin sifter Square sifter Flaking	to separate the flour and bran, also separate large size and small size to enssure flour quality.. The sifting principle is based on a circular movement of a sieve which separates small and light particles from small but heavy particles.
Purifier	In a wheat mill, purification is achieved when fine bran and germ are separated from endosperm particles to increase the purity of coarse endosperm (farina or semolina).	Purification and Classification This purification step allows the miller to maximize extraction of low ash, bright color flour.
Bran Brusher	Vertical and Horizontal Wheat Bran Finisher	Clean out the flour on the bran surface,increase the flour extraction rate and improve flour quality

3. Packing part

The third step, the packing machine can be manual or automatic weighting and packing. this can be designed according to requirement and machine capacity

Model

Output

(T/24H)

Power

(kw)

Size of workshop

(L*W*H,m)

Main Equipment

Products and extraction rate(%)

6FYDT-10

10-12

12*6*4.2

1).High-efficiencyVirbating Sifter

2).Destoner

3).High/Low Pressure Blower

4).Water spray machine

5).Conditioning bin

6).Peeling crusher machine

7).Roller mill

8).Double section sifter

9).Magnetic separator

1) Corn flour: 40-50%

2) Corn grits: 35-40%

3) Corn bran:10-12%

4) Embryo: 8-10%

5) Fodder flour: 14-10%

Other grade corn flour can be produced

by adjusting the machine.

Our product

wheat flour milling machine

No.	Model	Dimension of workshop L×W×H(m)	Power required About (kW)	Mail technical date
No.	Model	Dimension of workshop L×W×H(m)	Power required About (kW)	Production capacity (t/24h)	Flour extraction rate(%)
1	6FTF-35	24×7×6.8	90	35(wheat)	60~68grade 1 flour 73~78grade 2 flour
2	6FTF-40	24×7×7	98	40(wheat)	60~68grade 1 flour 73~78grade 2 flour
3	6FTF-50	28×7×7	110	50(wheat)	60~68grade 1 flour 73~78grade 2 flour
4	6FTF-65	28×7×7.2	125	65(wheat)	60~68grade 1 flour 73~78grade 2 flour
5	6FTF-80	30×8×7.5	160	80(wheat)	60~68grade 1 flour 75~78grade 2 flour
6	6FTF-90	30×8×7.5	175	90(wheat)	63~68grade 1 flour 75~78grade 2 flour

Packing and shipping

-------------------------------------------------------------------------------------------------------------------------------------------

The machine has been well coated by white plastic film,fixed in the container by ratchet straps,strong iro wire and steel wedge,in that case the machine can be deliver well after ocean sailing,also save cost.

Our Service

After-sale service
One year guarantee
We provide turnkey project 5-500t/day complete set of wheat/corn flour mill machine

Our clients and Our market

MACHINE, MAIZE FLOUR MILLING MACHINE, CORN FLOUR MILLING MACHINE, WHEAT FLOUR MILLING PLANT, MAIZE FLOUR MILLING PLANT, CORN FLOUR MILLING PLANT

WHEAT FLOUR MILL, MAIZE FLOUR MILL, CORN FLOUR MILL, WHEAT FLOUR MILLING MACHINE, MAIZE FLOUR MILLING MACHINE, CORN
