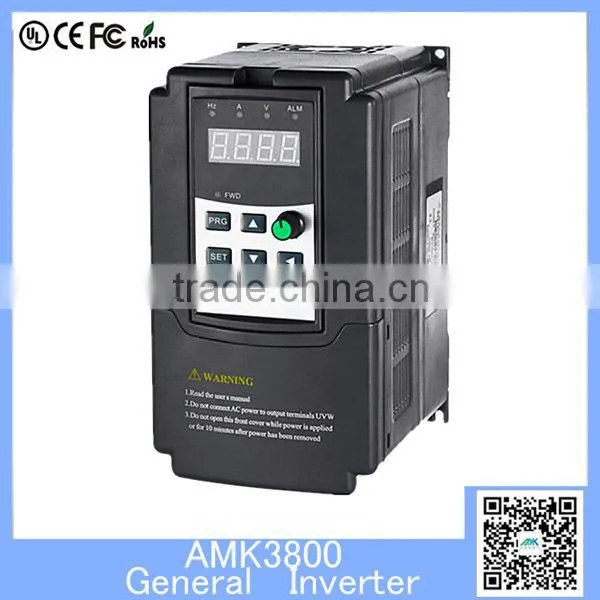

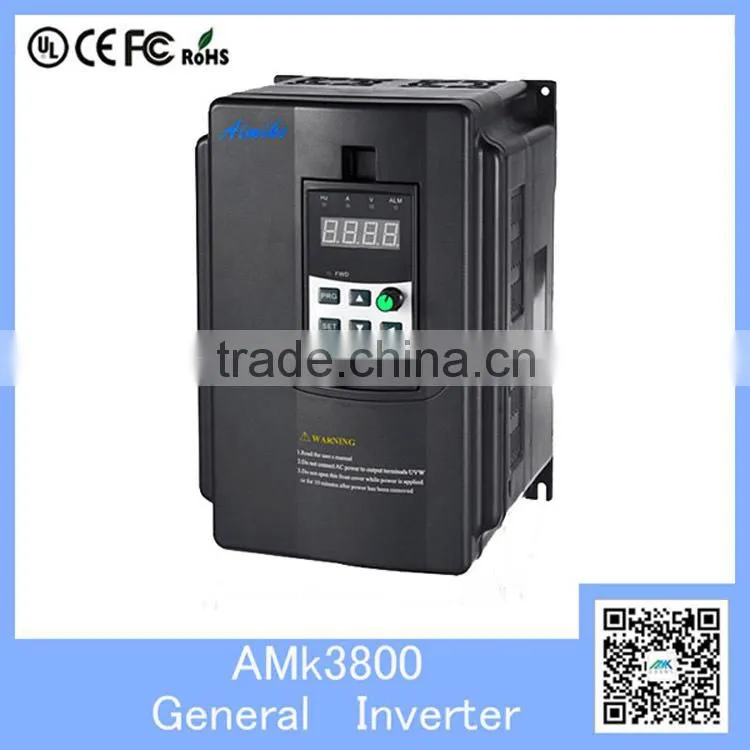

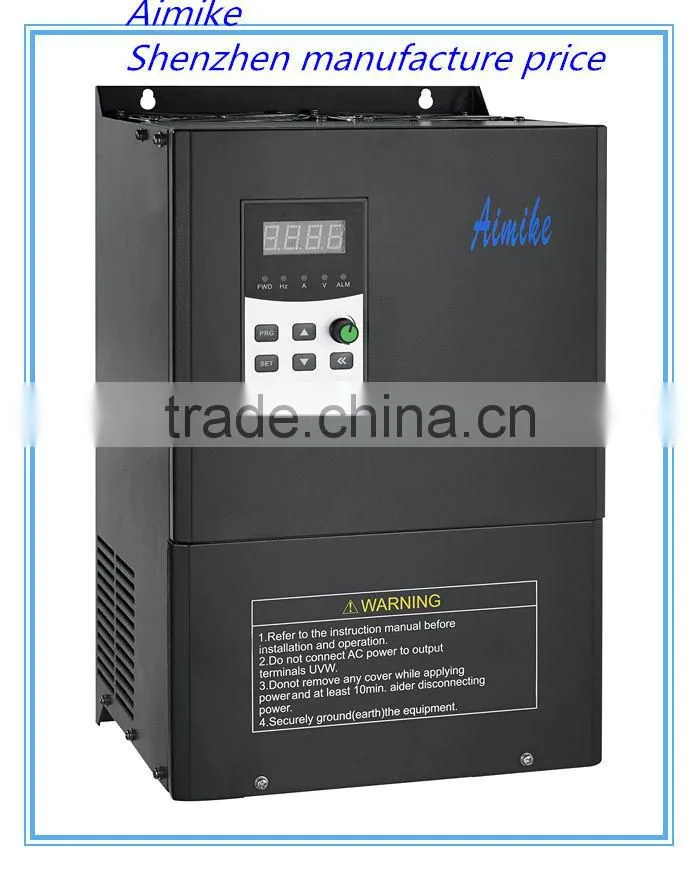

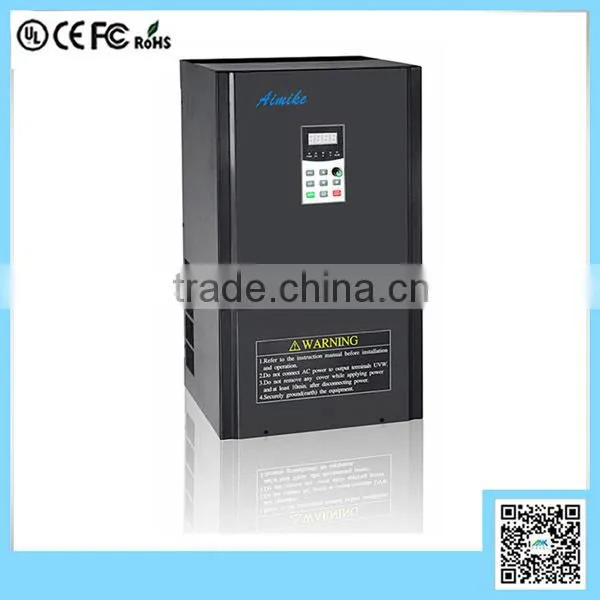

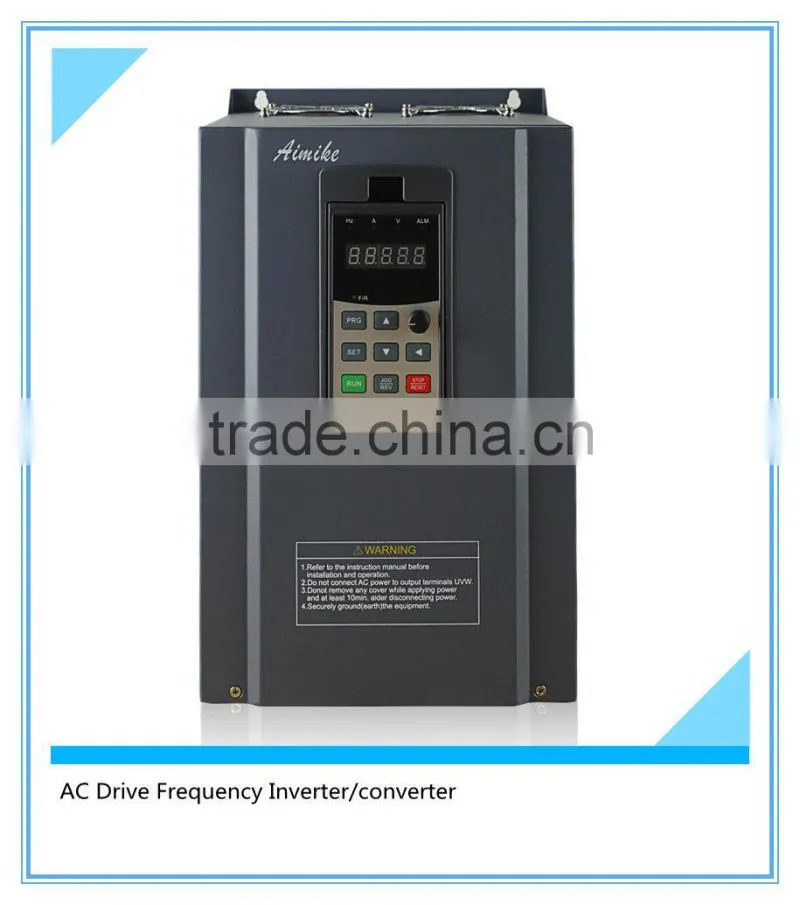

15KW ac current ac motor speed control VFD Drives

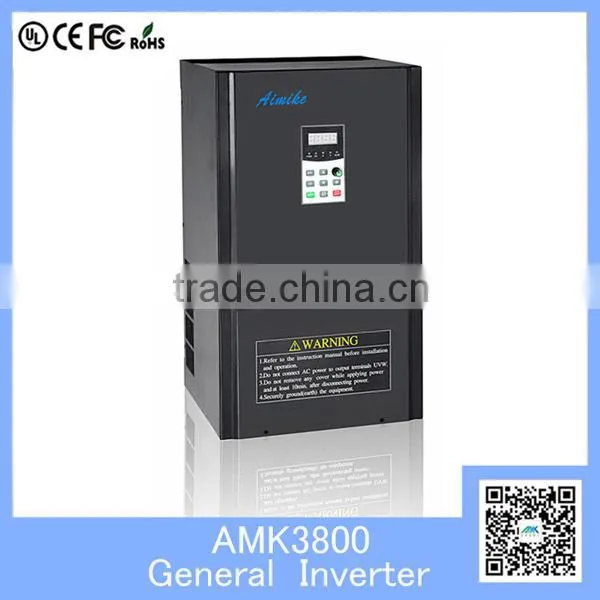

AMK3800 series inverter is the 2nd generation of high performance current vector inverter researched and developed independently by our company. It has adopted fully new design concept and modular design idea. Compare with traditional inverters, no matter on performance, functions, reliability, maintainability and workability or other aspects, it has been improved essentially.
Basic Operation Distribution Diagram
Key feature
u Combines vector control and VF control technologies perfectly with creativity and introduces the idea of flux control.
u Multiple kinds of menu modes are convenient for parameter regulation of user.
u Intelligentialized motor rotation speed tracing technology can trace current rotation speed of the motor with quicker speed and implement fast tracing operation.
u Unique power source and EPS functions enable take one inverter as a variable-frequency power source or EPS for operation.
u Intelligent power saving function and electric quantity monitoring function can furthest reduce the energy consumption for motor operation.
u SPI interface and pen type standard MODBUS protocol
u Wide input voltage,20% mutative is allowable
u Perfect protection function, Overvoltage over-current under-voltage overheat overload off load Losing phase(option)
u Direct LCD data display and LED work status display
u The control core is based on 32-bit RISC single chip and speed is up to amazing 1.3DMIPS.
Working Principle
Aimike inverter generally consists of rectifier, filter, inverter driving circuit, protection circuit and a controller (MCU/DSP) and other parts. Firstly, when the current of single-phase or three-phase AC power through a rectifier and capacitor filter, it will form fixed amplitude DC voltage and put on the inverter, the output terminal of the inverter will obtain a pulse wave with certain shape, after uses the on-off control of inverter power element. By changing the width of rectangular pulse and inverter’s output frequency to control the amplitude of voltage and output frequency respectively so the the inverter can control output voltage and frequency at the same time that to meet the requirements of U/f Coordinated control. The advantage of PWM is to eliminate or suppress low order harmonic wave, and make the motor run at the voltage with approximate sine wave.
Application
chanical, textile, chemical industry,
2.Energy-saving central air conditioning;
3.Oil injection pump, oil fields,
4.Energy-saving air compressor;
5.Circulating pump, water supply pump, constant pressure water supply;
tallurgy, mining, pharmaceutical, ceramics, papermaking,,
7. plastics, printing, thermoelectric, food and other fields.

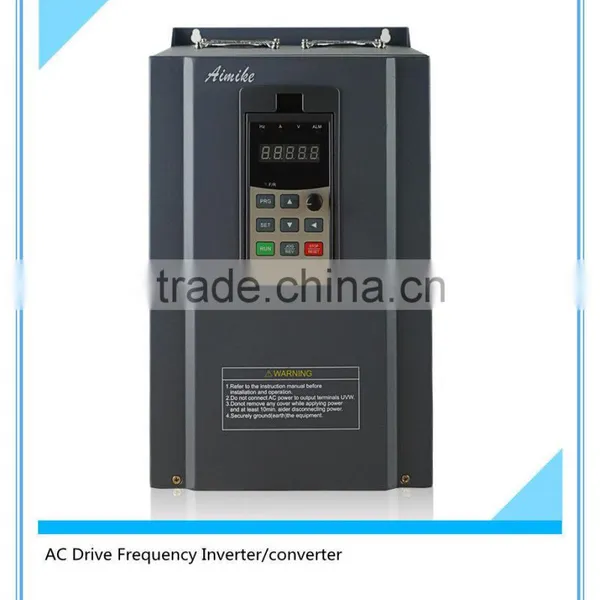

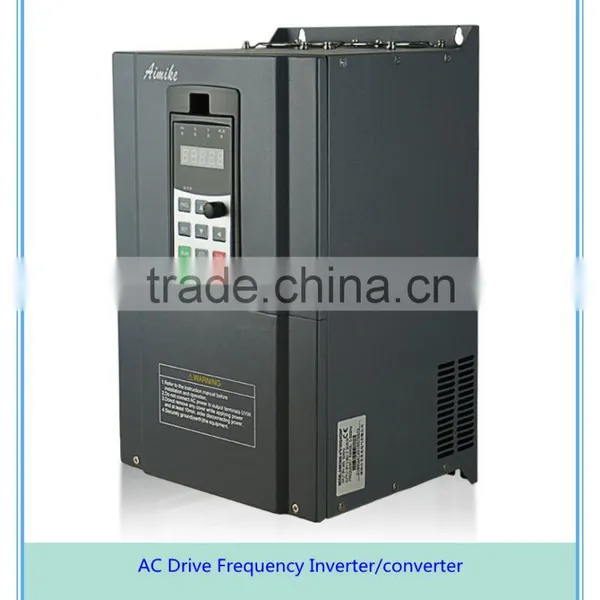

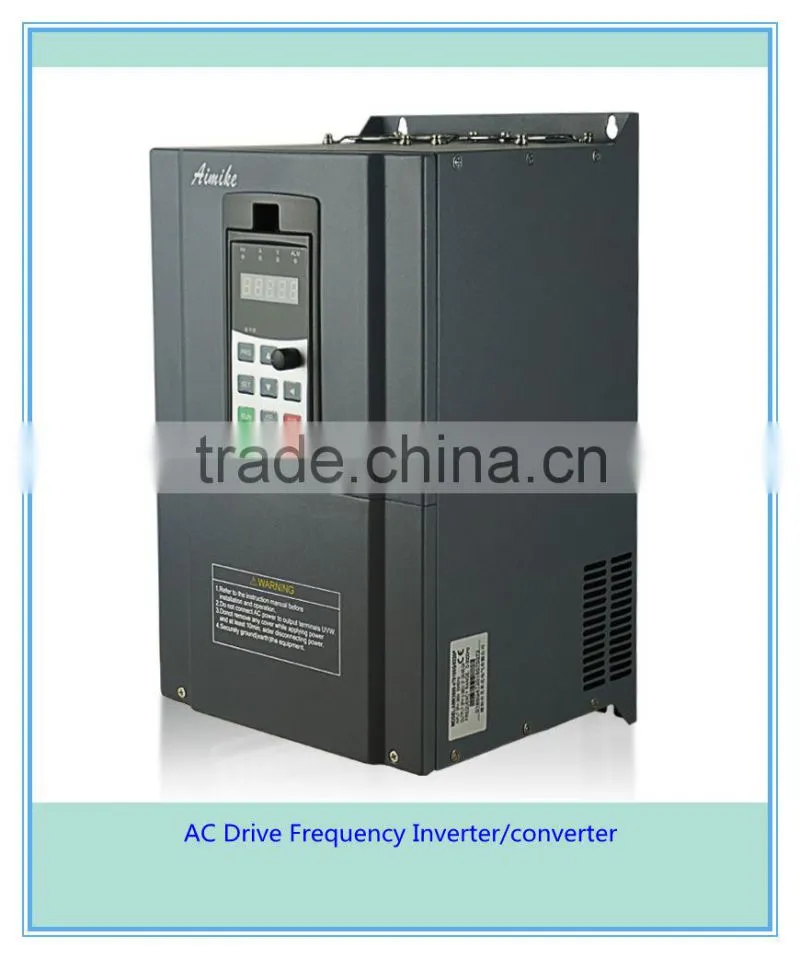

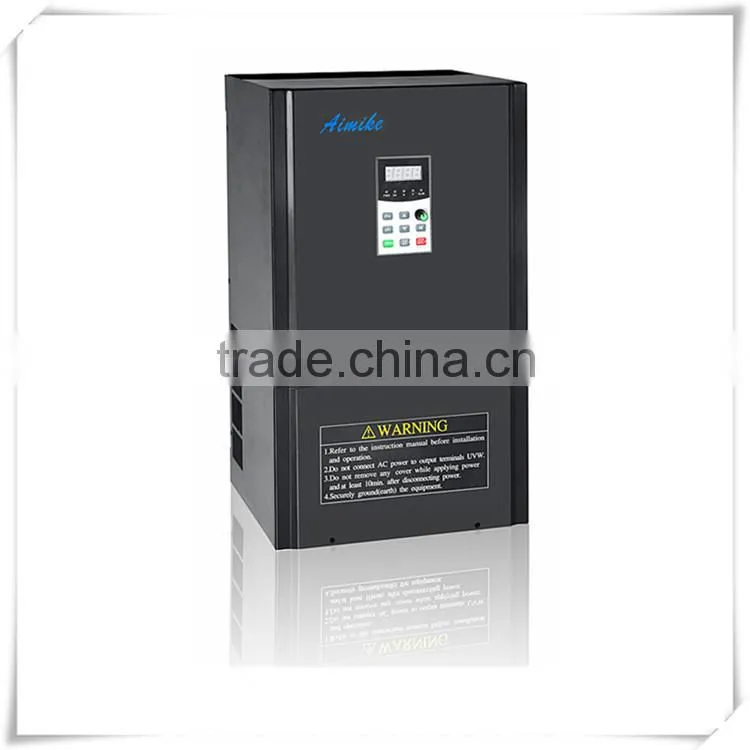

Picture for ac motor speed control VFD Drives

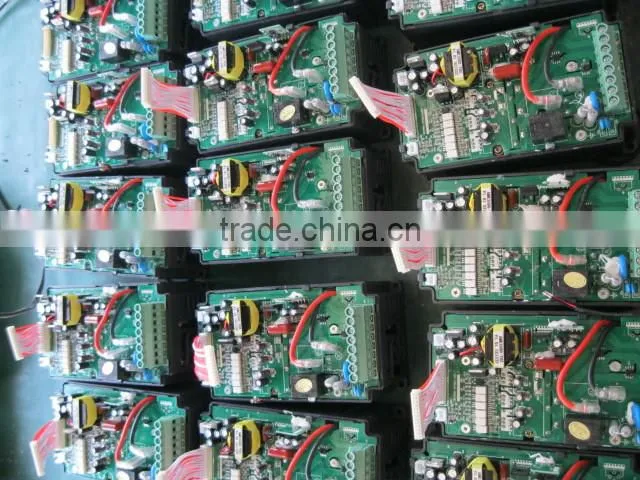

Test Machine
Application
Options
1.LKD Remote Keyboard Carrier
2.LKD Keyboard
3.Braking Resistor
4.Reactor
5.Network cable
Payment Terms
T/T in advance, L/C or Western Union
Shipment
1.By air or by sea.
2.By your own forwarding agent.
Lead Time
1. Sample order will be delivered from our factory within 1-7 working days.
2.General orders will be delivered from our factory within 7-10 working days.
3.Big orders will delivered from our factory within 30 working days at most.
Warranty
1 year warranty from the date of delivery and responsible lifetime. If the product is exceed warranty or damaged by transportation, improper operation, human element, force majeure,it is not under warranty.
Please Note
1.Power: 0.75KW-630KW
2.Standard export package, suitable for long distance transportation.
3.Product attached one AMK operation Panel.
4.Network cable, bland filler panel or other options would be chose and charged.
5.The above price does not make out an invoice, invoice needs an extra charge of17%.
6.The charges of packing are bore by buyers.
The other power for your choose

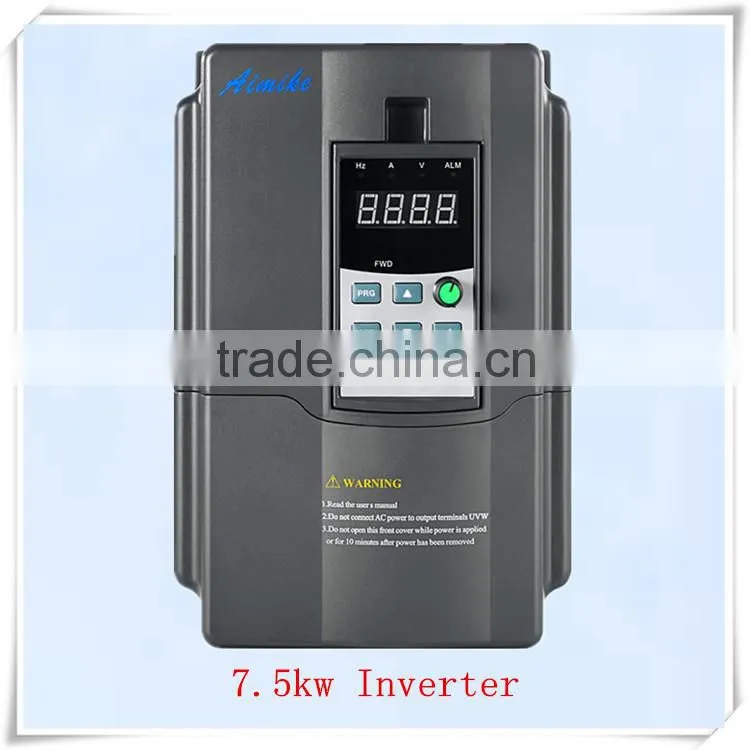

7.5KW 380V 11KW 3800V 18.5KW 380V
why choose us ?
1.Famous brand in china
2.Easy operating system
3.Stable performance
4. Excellent aftersales service
5.Fast delivery
Your wise choice--Aimike!
