ac current vector inverter 30KW 380V 60HZ three phase made in China Shenzhen
AMK3800 series inverter is the 2nd generation of high performance current vector inverter researched and developed independently by our company. It has adopted fully new design concept and modular design idea. Compare with traditional inverters, no matter on performance, functions, reliability, maintainability and workability or other aspects, it has been improved essentially.
Specifications
1.low unloading current
2.perfect protections
3.Patents/CE/ROHS
4.High effiency and Good price
Product features
| Unique power source and EPS functions enable take one inverter as a variable-frequency power source or EPS for operation. |
| Intelligent power saving function and electric quantity monitoring function can furthest reduce the energy consumption for motor operation. |
| Suitable size, simple operation, high stop position accuracy. |
| Independent keyboard, remote keyboard(max 50meter) supporting hot-plugging. |
| It can be linked to all kinds of industrial control machines with build-in AMK3800 communication port, MODBUS communication protocol. |
| Multi protection functions ensure motor save and reliable working. |
| Long life design. Fan is controllable. AVR (Auto voltage regulation) function ensures high output torque while input voltage is low. |
| Direct LCD data display and LED work status display |
Aimike inverter generally consists of rectifier, filter, inverter driving circuit, protection circuit and a controller (MCU/DSP) and other parts. Firstly, when the current of single-phase or three-phase AC power through a rectifier and capacitor filter, it will form fixed amplitude DC voltage and put on the inverter, the output terminal of the inverter will obtain a pulse wave with certain shape, after uses the on-off control of inverter power element. By changing the width of rectangular pulse and inverter’s output frequency to control the amplitude of voltage and output frequency respectively so the the inverter can control output voltage and frequency at the same time that to meet the requirements of U/f Coordinated control. The advantage of PWM is to eliminate or suppress low order harmonic wave, and make the motor run at the voltage with approximate sine wave.
Specification of ac current vector inverter 30KW 380V 60HZ three phase made in China Shenzhen
Place of Origin |
Guangdong, China (Mainland) |
Brand Name |
Aimike |
Model Number |
AMK3800-4T0300G |
Output Power |
30KW |
Output Type |
Triple |
Size |
260*252*450MM (W*D*H) |
Weight |
16KGS |
Input Voltage |
380V |
Output Voltage |
0-380V |
Type |
DC/AC Inverters |
Output Frequency |
0-3000HZ |
Output Current |
60A |
Color: |
black |
Shell: |
metal |
Modules: |
integrated ICBT (Infineon & Fuji) |
Material: |
all components from international famous brand |
Adaptation motor power: |
0.75kw -- 30kw |
Delivery time |
7day -- deliver faster |
Warranty |
1 year and responsible lifetime |
Voltage |
low voltage 380V |
Current: |
ac inverter |

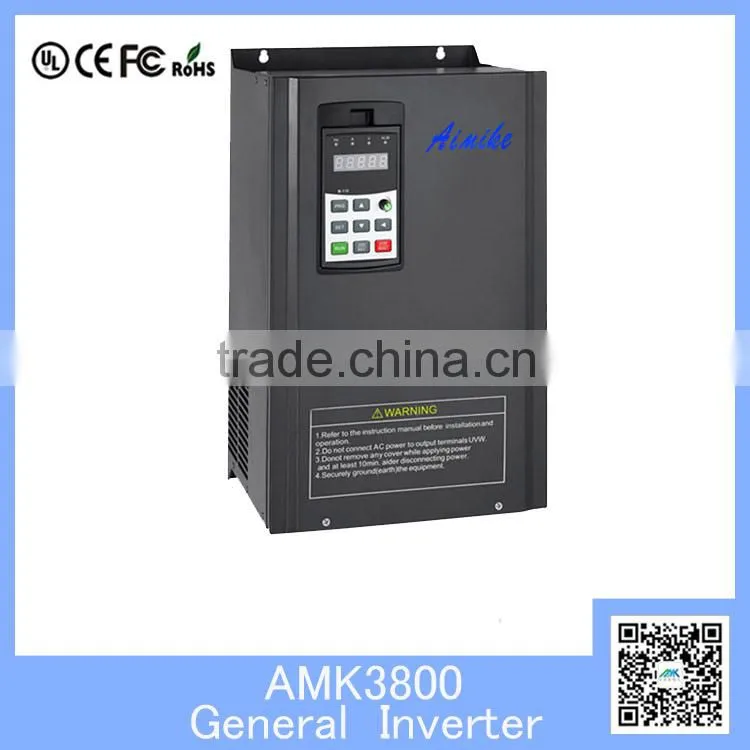

Picture of 30KW inverter
Production Line
Testing
Application
| Food machine |
Improve efficiency and reduce cost Frequency inverter with wide range speed brings strong anti-over-load ability. |
| Packing machine |
High stable accuracy and dynamic response performance low noise and rich functions. |
| Textile machine |
Smooth start, big torque at low speed Good ACC and DEC performance Widely applied to textile machines, such as sizing machine, spreading machine, sensitization machine, weft straightener, drawing-in machine, roving machine and so on. |
| Automatic production line |
Convenient for central control with strong communication function Strong anti-current-impact ability |
- Our factory special product current vector inverter.
- ODM & OEM service offered
- Factry own brand named AIMIKE
- More than 630KW also can product for customer.
- The good construction warranty-1 years and responsible lifetime
- Any questions from you are welcome and will be replied in 24 hours
- Our professional service before and after sale
- The free inverter samples after your first 3 order.
Packaging Detail: We use different kind of cartons for different products from Carton/honeycomb carton and wood-plate boxes.
Shipment:By air or by sea and by your own forwarding agent.
COMPANY INTRODUCTION
Since established in 2004, Amica International Corporation Limited has grown into an internationally renowned inverter manufacturer after a decade of rapid and steady development.
Thanks of the industry's leading independent core technologies and sustainable development capability, we produce a series of inverter with good quality,such as General purpose inverters, Current vector inverter, Flux vector inverters, Fans special inverter, Pump inverter, Textile converter, Air compressor inverter, Injection molding machine special inverter.
Amike inverters have been widely used in wind turbines, pumps, air compressors, injection molding machines, winding machines, central air conditioning and other mechanical devices of textile, chemical industry, metallurgy, mining, pharmacy, ceramics, paper, oil, plastics, printing, heat, tobacco and food thanks it can achieve high efficiency save energy and improve the level of technology in the industry.
Aimike is always adhering to the operating principles of "to build brand by quality and develop market by technology" , always serve to create a more valuable product and provide better quality of service and has developed the power of AMK3100 universal frequency converter, AMK3200 frequency conversion machine, AMK3800 current vector inverter, AMK3500 flux vector inverter and AMK600 medium voltage inverter from 0.75kw to 630kw to meet the different needs of customers.
Meanwhile, independent intellectual property industry automatic drive control and advanced vector control technology made Aimike inverters passed ISO9001-2008 quality management system,get CE and Rohs certification, and the product quality management has in line with international standards.What’s more, Aimike has won the recognition of industrial areas with international standards and strict quality management system and perfect after-sales service system.
The company's marketing and service network covering all over the world. In the domestic, after-sales warranty Center has set up in major cities, at abroad, Aimike inverters has exported to more than 20 countries and reached a long-term and stable relationship of cooperation with overseas customers.
For several years, in the way of the research and development of inverter we work hard and struggle ahead, always adhere to the concept of “to the quality of life and innovation for the foundation”. Company will still put the national strategy of environmental protection and energy saving into practice,constantly develop more competitive products use our unique leading-edge technology, and to put Aimike into the international first-class brand in the field of inverter.
Personnel staff
Company&Office
Quality inspection certificate
Options
1.LKD Remote Keyboard Carrier
2.LKD Keyboard
3.Braking Resistor
4.Reactor
5.Network cable
Lead Time
1.Sample order will be delivered from our factory within 1-7 working days.
2.General orders will be delivered from our factory within 7-10 working days.
3.Big orders will delivered from our factory within 30 working days at most.
Please Notes
| Power: 0.75KW-630KW |
| Standard export package, suitable for long distance transportation. |
| Product attached one AMK operation Panel. |
| Network cable, bland filler panel or other options would be chose and charged. |
| The above price does not make include tax,tax needs an extra charge of 17 %. |
| The charges of packing are bore by buyers. |
Certificates
1.Are you manufacturer or trading company?
We are the only manufacturer of inverters.Welcome to visit our factory at any time.
2. what's the payment term?
We accept T/T. L/C at sight
3. What's the delivery time ?
Normal model,1-3days,because we have ability to do the stock.
For big order(more than 10,000usd),it takes about 7-15days.
4. What is the standard of package?
Export standard package or special package according to customer requirement
5.what kind of certificate you have ?
We have ISO9001, CE, ROHS, other certification is under doing.
If you have any questions, pls feel free to contact me at any time! Thanks for your visit !
