200Kw frequency inverter three phase for pump
AMK3800 series inverter is the 2nd generation of high performance current vector inverter researched and developed independently by our company. It has adopted fully new design concept and modular design idea. Compare with traditional inverters, no matter on performance, functions, reliability, maintainability and workability or other aspects, it has been improved essentially.
Specifications
1.Current vector control
2.Strict quality control system ISO9001 and test
3.IGBT Technology
4.LED and LCD display
5.CE and ROHS certificate
Working Principle
Aimike inverter generally consists of rectifier, filter, inverter driving circuit, protection circuit and a controller (MCU/DSP) and other parts. Firstly, when the current of single-phase or three-phase AC power through a rectifier and capacitor filter, it will form fixed amplitude DC voltage and put on the inverter, the output terminal of the inverter will obtain a pulse wave with certain shape, after uses the on-off control of inverter power element. By changing the width of rectangular pulse and inverter’s output frequency to control the amplitude of voltage and output frequency respectively so the the inverter can control output voltage and frequency at the same time that to meet the requirements of U/f Coordinated control. The advantage of PWM is to eliminate or suppress low order harmonic wave, and make the motor run at the voltage with approximate sine wave.
Product features of frequency inverter
| Unique power source and EPS functions enable take one inverter as a variable-frequency power source or EPS for operation. |
| Intelligent power saving function and electric quantity monitoring function can furthest reduce the energy consumption for motor operation. |
| Suitable size, simple operation, high stop position accuracy. |
| Independent keyboard, remote keyboard(max 50meter) supporting hot-plugging. |
| It can be linked to all kinds of industrial control machines with build-in AMK3800 communication port, MODBUS communication protocol. |
| Long life design. Fan is controllable. AVR (Auto voltage regulation) function ensures high output torque while input voltage is low. |
| Multi protection functions ensure motor save and reliable working. |
|
Direct LCD data display and LED work status display |
200Kw frequency inverter three phase for pump
Place of Origin |
Guangdong, China (Mainland) |
Brand Name |
Aimike |
Model Number |
AMK3800-4T2000G |
Output Power |
200KW |
Output Type |
Triple |
Size |
530*347*916 MM (W*D*H) |
Weight |
68.5KGS |
Input Voltage |
380V |
Output Voltage |
0-380V |
Type |
DC/AC Inverters |
Output Frequency |
0-3000HZ |
Output Current |
380A |
Color: |
black |
Shell: |
metal |
Modules: |
integrated ICBT (Infineon & Fuji) |
Material: |
all components from international famous brand |
Adaptation motor power: |
0.75kw -- 200kw |
Delivery time |
7day -- deliver faster |
Warranty |
1 year and responsible lifetime |
Voltage |
low voltage 380V |
Current: |
ac inverter |

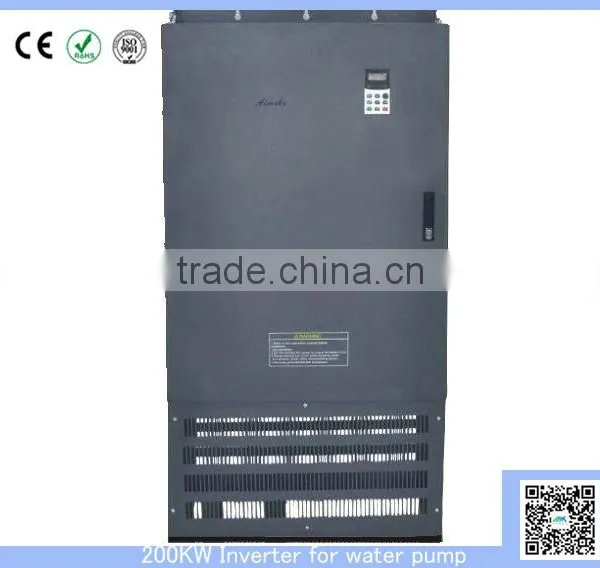

Picture of 200KW frequency inverter
Production Line
Application of inverter transformer
1 Food machine
Improve efficiency and reduce cost
Frequency inverter with wide range speed brings strong anti-over-load ability.
2 Packing machine
High stable accuracy and dynamic response performance
low noise and rich functions.
3 Textile machine
Smooth start, big torque at low speed
Good ACC and DEC performance
Widely applied to textile machines, such as sizing machine, spreading machine, sensitization machine, weft straightener, drawing-in machine, roving machine and so on…
4 Automatic production line
Convenient for central control with strong communication function
Strong anti-current-impact ability
Testing
Options
| LKD Remote Keyboard Carrier |
| LKD Keyboard |
| Braking Resistor |
| Reactor |
| Network cable |
Lead Time
1.Sample order will be delivered from our factory within 1-7 working days.
2.General orders will be delivered from our factory within 7-10 working days.
3.Big orders will delivered from our factory within 30 working days at most.
Please Notes
1.Power: 0.75KW-630KW
2.Standard export package, suitable for long distance transportation.
3.Product attached one AMK operation Panel.
4.Network cable, bland filler panel or other options would be chose and charged.
5.The above price does not make out an invoice, invoice needs an extra charge of 17 %.
The charges of packing are bore by buyers.
Packaging Detail: We use different kind of cartons for different products from Carton/honeycomb carton and wood-plate boxes.
Shipment:By air or by sea or by your own forwarding agent.
Certifications
1. What is inverter?
Inverter is an electronic equipment that change the frequency of ac.High
2.Are you manufacturer or trading company?
We are the only manufacturer of inverters.Welcome to visit our factory at any time.
3. what's the payment term?
We accept T/T. L/C at sight
4. What's the delivery time ?
Normal model,1-3days,because we have ability to do the stock.
For big order(more than 10,000usd),it takes about 7-15days.
5. What is the standard of package?
Export standard package or special package according to customer requirement
6.what kind of certificate you have ?
We have ISO9001, CE, ROHS, other certification is under doing.
