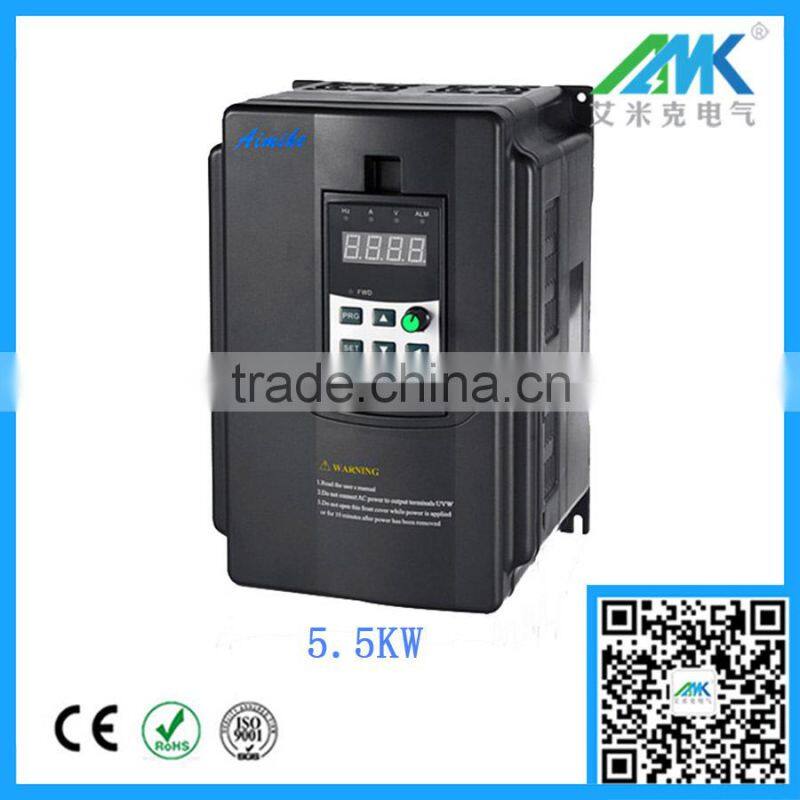

China 3 phase 5000w inverter inverter 3000w DC AC inverter
Working Principle
Aimike inverter generally consists of rectifier, filter, inverter driving circuit, protection circuit and a controller (MCU/DSP) and other parts. Firstly, when the current of single-phase or three-phase AC power through a rectifier and capacitor filter, it will form fixed amplitude DC voltage and put on the inverter, the output terminal of the inverter will obtain a pulse wave with certain shape, after uses the on-off control of inverter power element. By changing the width of rectangular pulse and inverter’s output frequency to control the amplitude of voltage and output frequency respectively so the the inverter can control output voltage and frequency at the same time that to meet the requirements of U/f Coordinated control. The advantage of PWM is to eliminate or suppress low order harmonic wave, and make the motor run at the voltage with approximate sine wave.
Product features
| Unique power source and EPS functions enable take one inverter as a variable-frequency power source or EPS for operation. |
| Intelligent power saving function and electric quantity monitoring function can furthest reduce the energy consumption for motor operation. |
| Suitable size, simple operation, high stop position accuracy. |
| Independent keyboard, remote keyboard(max 50meter) supporting hot-plugging. |
| It can be linked to all kinds of industrial control machines with build-in AMK3800 communication port, MODBUS communication protocol. |
| Long life design. Fan is controllable. AVR (Auto voltage regulation) function ensures high output torque while input voltage is low. |
| Multi protection functions ensure motor save and reliable working. |
| Direct LCD data display and LED work status display |

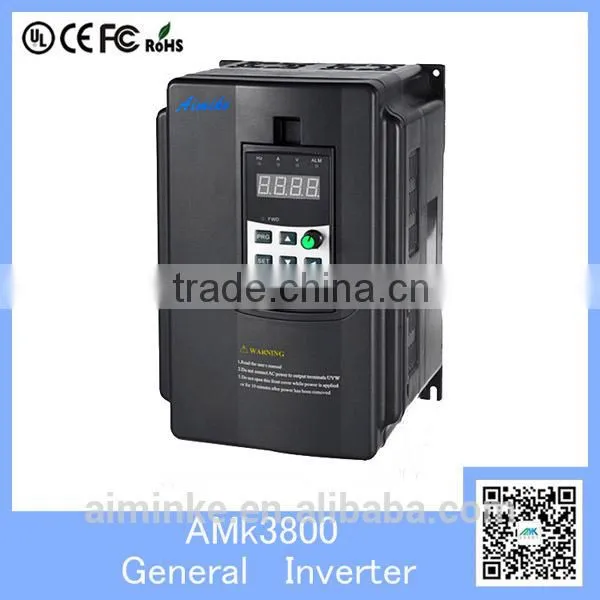

AK3800 series inverter is the 2nd generation of high performance current vector inverter researched and developed independently by our company. It has adopted fully new design concept and modular design idea. Compare with traditional inverters, no matter on performance, functions, reliability, maintainability and workability or other aspects, it has been improved essentially. The detailed performances are as the following:
•Powerful Control Platform
•Leading Control Algorithm
•Open Hardware Architecture
•Powerful Functions
•Communication and Networking
Basic specification
| Item | Specifications |
| Model | AMK3500-4T0055G |
| Input voltage | 380V |
| Output voltage | 0-380V |
| Rated current | 13A |
| Input frequency | 50/60Hz |
| Output frequency | 0-3000Hz |
| Rated capacity | 11KVA |
| Power | 5.5kw |
| Size | 205*292*300 W*D*H(MM) |
| Weight | 6.5kg |
| Type | Single phase |
| Speed Adjustment Range | 1:50 |
| Protection class | IP20 |
| Control keyboard | LED/LCD display |
| Cooling method | forced air cooling, with fan control |
| Modulation Method | Space Vector Modulation |
| Start-up Torque | At 0.5Hz, 150% rated torque (vector V/F control) |
| Frequency Accuracy | Figure Setting: Max frequency X ± 0.01%; Analog setting: Max frequency X ± 0.2%; |
AC variable frequency drives technical features
| 1) AC variable frequency drives power range: 0.75~630KW. |
| 2) AC variable frequency drives voltage: AC 220V/380V +/- 20% |
| 3) Output frequency: 0~2000Hz |
| 4) Common V/F control , Advance V/F Control , Open loop current vector control , Close loop vector control , Separated type V/F control |
| 5) AC Drives has automatic slip compensate. |
| 6) Internal PID function, realize high performance closed loop control. |
| 7)V/F Curve 0: Linear curve 1: Reducing torque curve 1 (1.3 power) 2: Reducing torque curve 1 (1.5 power) 3: Reducing torque curve 1 (1.7 power) 4: square curve 5: user setting V/F curve |
| 8) Can add PID regulate DC braking system to AC Drives. |
| 9) Forced communicated function, support standard RS485 and Modbus, supply remote keyboard control function. |
| 10) Losing phase protection (option), over-current protection, overvoltage protection, under-voltage protection, overheat protection, overload protection, and off load protection etc. |
| 11)Overload Capacity G Type: 150% rated current for 1 minute; 180% rated current for 1 second; 200% rated current instantaneous protection P Type: 120% rated current for 1 minute; 150% rated current for 1 second; 180% rated current instantaneous protection |
12) Jogging Jogging frequency range: 0,00Hz- max output frequency; jogging acceleration and deceleration time 0.1-3600.0s, which is settable; jogging interval is 0.1-3600.0s, which is settable |
| 13) Altitude Derating using for more than 1000m, derate 10% for every 1000m rising |
14)Environment temperature -10℃-+40℃ (When ambient temperature is 40℃-50℃, please take derating using.) 15)Humidity 5%-95% RH, without condensing. |
| 16) Avoid high temperature and moisture and avoid being wetted due to raining, with the humidity 5%-95% RH, without condensing. |

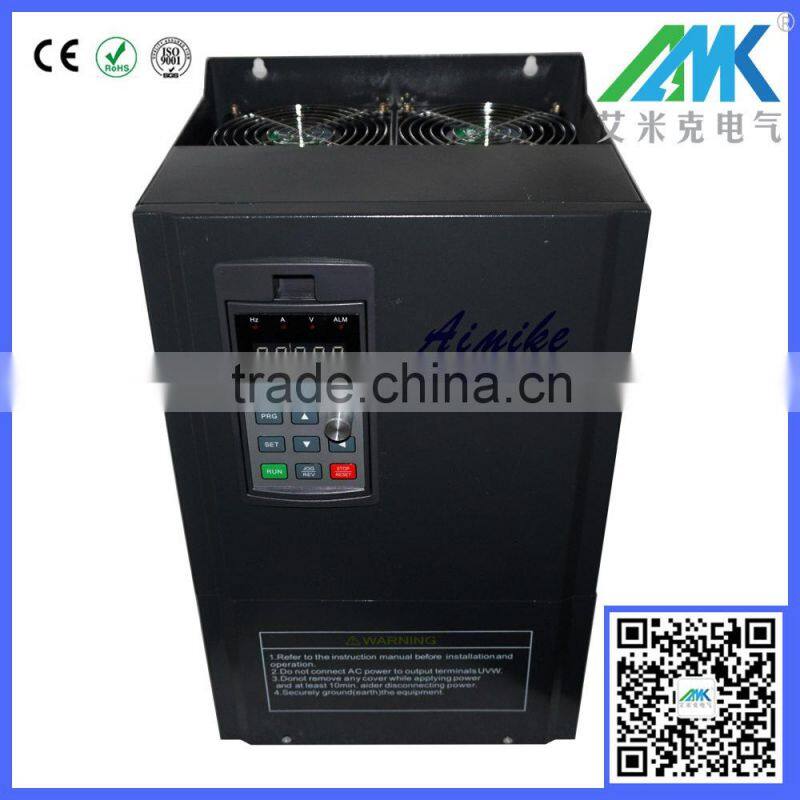

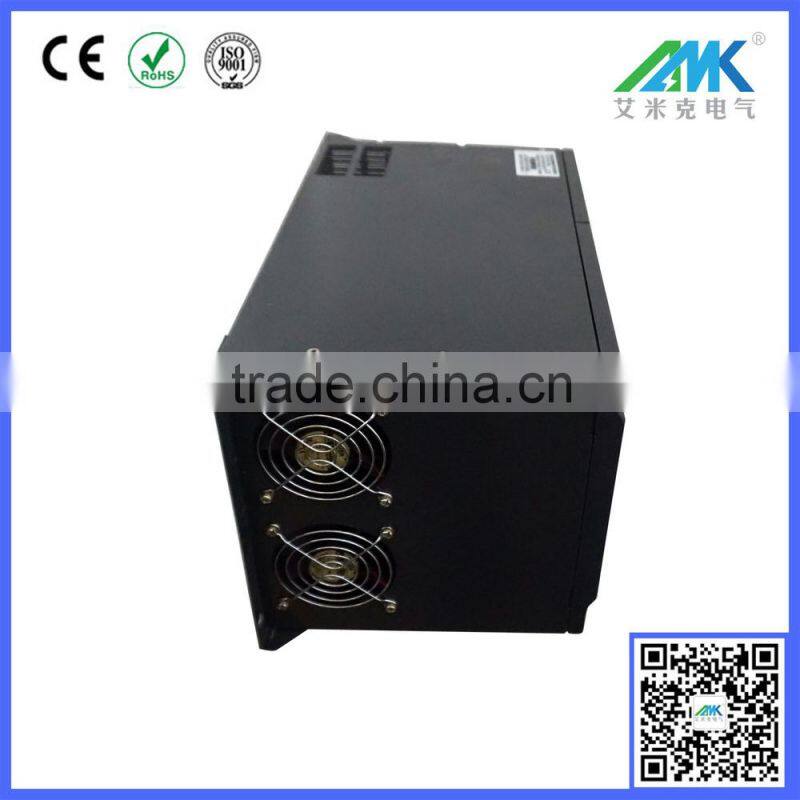

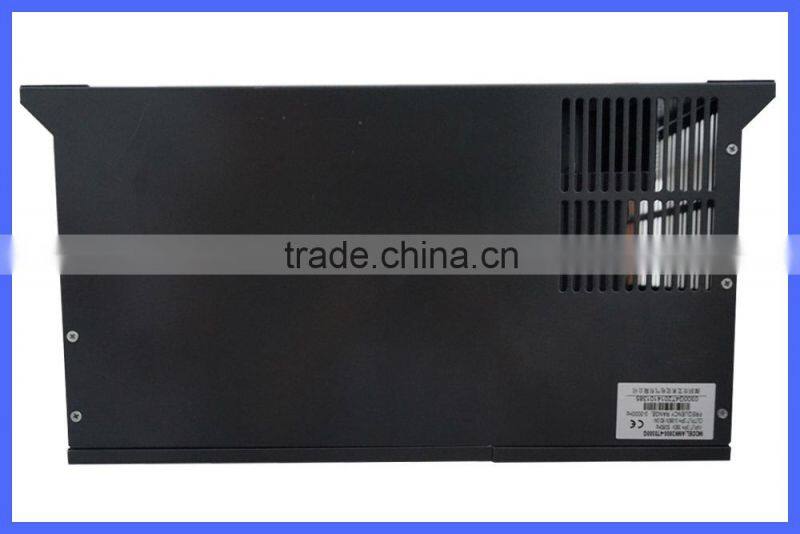

Picture of
Technology Sprcification
| Item | Item Description | |
| Input | Rated voltage, Frequency | Single phase 220V 50/60Hz Three phase380V 50/60Hz |
| Permitted Working Voltage Range | Waveform Range: ≤±20%; voltage unbalance rate: | |
| Output | Rated voltage | 0-380V |
| Frequency | 0-3000Hz | |
| Overload Capacity | G Type: 150% rated current for 1 minute; 180% rated current for 1 second; 200% rated current instantaneous protection P Type: 120% rated current for 1 minute; 150% rated current for 1 second; 180% rated current instantaneous protection | |
| Main Control Performance | Control Method | 0: Common V/F control 1: Advance V/F Control 2: Open loop current vector control 3: Close loop vector control 4: Separated type V/F control |
| Modulation Method | Space Vector Modulation | |
| Speed Adjustment Range | 1:50 | |
| Start-up Torque | At 0.5Hz, 150% rated torque (vector V/F control) | |
| Frequency Accuracy | Figure Setting: Max frequency X ± 0.01%; Analog setting: Max frequency X ± 0.2%; | |
| Frequency Resolution | Figure Setting: 0.01; Analog setting: Max frequency X ± 0.05; | |
| Continued | Torque Boost | Automatic Torque Boost, Manual Torque Boost 0.1-30.0% |
| V/F Curve | 0: Linear curve 1: Reducing torque curve 1 (1.3 power) 2: Reducing torque curve 1 (1.5 power) 3: Reducing torque curve 1 (1.7 power) 4: square curve 5: user setting V/F curve | |
| Acceleration and deceleration curve | Three methods: linear acceleration and deceleration, S curve acceleration and deceleration, min acceleration and deceleration; 4 kinds of acceleration and deceleration time, optional time unit (min/s) | |
| DC braking | Shutdown DC braking start frequency: 0.00Hz-max output frequency; braking time: 0.0-50.0s; braking current: 0.0%-150.0% rated current | |
| Automatic Voltage Regulation (AVR ) | When the grid voltage is changed, it can maintain constant output voltage automatically. | |
| Automatic current limiting | It takes automatic current limiting in operation to prevent frequent over-current fault stripping. | |
| Automatic Carrier Regulation | Regulate the carrier frequency automatically according to the load features and temperature features. | |
| Customized function | Weaving swing frequency | Weaving swing frequency control can achieve fixed swing frequency and varied swing frequency functions. |
| Frequency combination function | Running command channels and frequency setting channels can be combined randomly. | |
| Fixed length function | Length to shutdown function, max length of 65.535 KM | |
| Jogging | Jogging frequency range: 0,00Hz- max output frequency; jogging acceleration and deceleration time 0.1-3600.0s, which is settable; jogging interval is 0.1-3600.0s, which is settable; | |
| Multi-velocity operation | It can achieve multi-velocity operation through built-in PLC or control terminals. | |
| Built-in Process closed-loop control | It is convenient to form closed-loop control system. | |
| Running Function | Run command channel | Operation panel, control terminal, serial port, which can be switched via multiple kinds of methods |
| Frequency setting channel | Figure setting, analog voltage setting, analog current setting, pulse setting, serial port setting, terminal setting, multi-velocity setting, which can be switched via multiple kinds of methods | |
| Auxiliary frequency setting | It can achieve flexible auxiliary frequency trimming and frequency combination calculation. | |
| Pulse output terminal | 0-50Hz pulse square wave signal output can achieve output of setting frequency, output frequency and other physical values. | |
| Analog output terminal | 2 paths of analog signal output, optional 0/4-20mA or 0/2-10V respectively. It can achieve output of setting frequency, output frequency and other physical values. | |
| Operation Panel | LED display | It can display 61 kinds of parameters, such as setting frequency, output frequency, output voltage, output current and so on. |
| LCD display | Option, Chinese/English prompt operation content | |
| Parameter copy | Option. Use operation panel to achieve rapid uploading and downloading of parameters. | |
| Key function selection | Define the effect range of partial keys to prevent misoperation. | |
| Protection Function | Losing phase protection (option), over-current protection, overvoltage protection, under-voltage protection, overheat protection, overload protection, and off load protection etc. | |
| Environment | Using place | Indoor, no direct sunshine shining, without dust, corrosive gas, flammable gas, oil mist, steam, water drip or salinity etc. |
| Altitude | Derating using for more than 1000m, derate 10% for every 1000m rising | |
| Environment temperature | -10°C-+40°C (When ambient temperature is 40°C-50°C, please take derating using.) | |
| Humidity | 5%-95% RH, without condensing | |
| Vibration | Less than 5.9m/s2 (0.6g) | |
| Storage temperature | -40°C-+70°C | |
| Structure | Protection class | IP20 |
| Cooling method | forced air cooling, with fan control | |
Application
| Food machine | Improve efficiency and reduce cost Frequency inverter with wide range speed brings strong anti-over-load ability. |
| Packing machine | High stable accuracy and dynamic response performance low noise and rich functions. |
| Textile machine | Smooth start, big torque at low speed Good ACC and DEC performance Widely applied to textile machines, such as sizing machine, spreading machine, sensitization machine, weft straightener, drawing-in machine, roving machine and so on. |
| Automatic production line. | Convenient for central control with strong communication function. Strong anti-current-impact ability. |

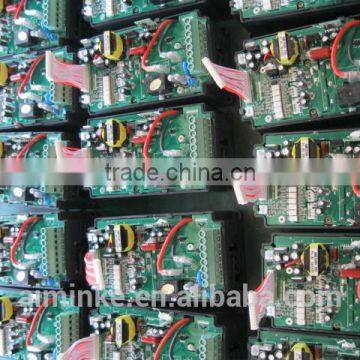

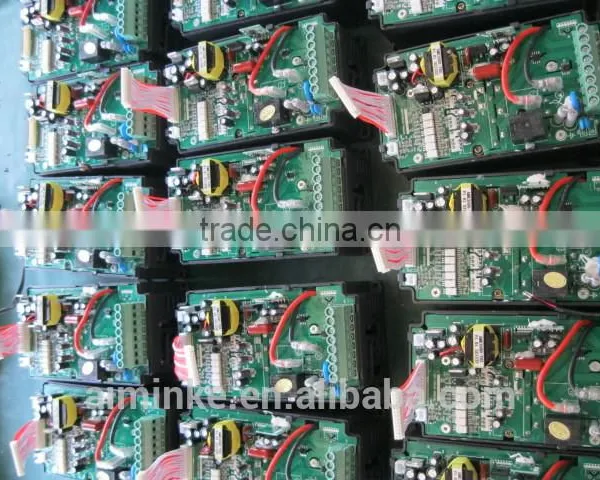

Production Line

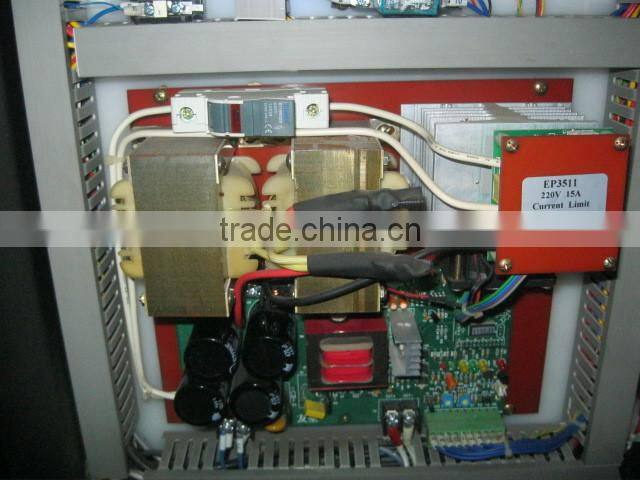

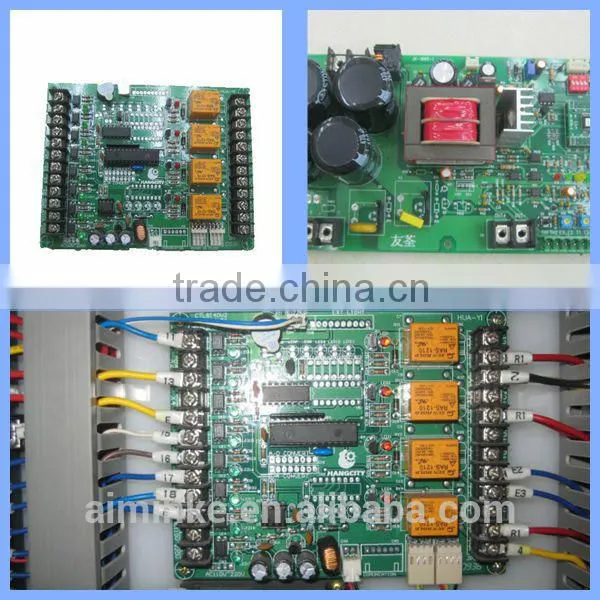

Testing
Options of dc to ac power inverter

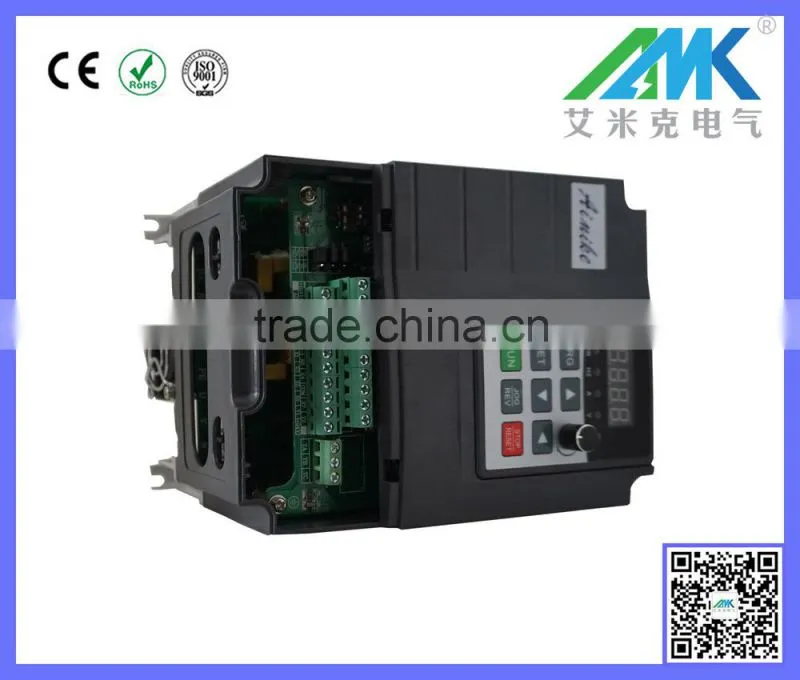

| LKD Remote Keyboard Carrier |
| LKD Keyboard |
| Braking Resistor |
| Reactor |
| Network cable |
Lead Time
1.Sample order will be delivered from our factory within 1-7 working days.
2.General orders will be delivered from our factory within 7-10 working days.
3.Big orders will delivered from our factory within 30 working days at most.
Maintenance
Daily Caring and Maintenance
The changes of inverter using environment, such as the influences of temperature, humidity and smog, and aging and other factors of inverter internal component may lead to various faults of inverter. Therefore, in storage and using process, it must take daily inspection and regular maintenance for the inverter.
Daily Maintenance
When the inverter is started normally, please confirm the following items:
(1) Whether the motor has abnormal noise and vibration
(2) Whether the inverter and motor has abnormal heat radiation
(3)Whether the environment temperature is too high
(4)Whether the load current value is the same with past values
(5)Whether the cooling fan of inverter is in normal operation
Regular Caring and Maintenance
1 Regular Maintenance
When the inverter is taken regular maintenance and inspection, it must cut off the power. After the monitor has no display and the indicators of main circuit power are off, it can take inspection. The inspection contents are as in Table 1.
| Inspection Item | Inspection Content | Countermeasures |
Main circuit terminal, control loop terminal screws | Whether it is loose | Screw up with screwdriver |
| Air-cooling fin | Whether the airway is blocked by dust and foreign matters | Blow with 4-6kgcm2 pressure dry compressed air |
| Printed circuit board | Whether the surface has oil contamination and attachment of conductor scraps. Whether the copper foil is corrosion phenomena. | Clean the surface foreign matters of PCB board |
| Cooling fan | Whether the operation is normal, whether there is abnormal noise and abnormal vibration, and accumulated running time is up to more than 20,000hours | Replace cooling fan |
| Power element | Whether it has dust and attachment of oil contamination and other foreign matters | Clean foreign matters |
| Electrolytic capacitor | Whether it has leakage and bubbling phenomena, and the explosion-proof value has protrusion | Replace the electrolytic capacitor |
Regular Caring
To make the inverter operate normally for a long period, it must take caring and maintenance for the service life of internal electronic components of inverter. The service life of internal electronic components of inverter is varied due to different using environment and using conditions, as in Table 8-2. Caring period of inverter is provided only for reference.
Component Name | Standard Replacement Years |
Cooling fan | 2-3 years |
Electrolytic capacitor | 4-5 years |
Printed circuit board | 5-8 years |
Fuse | 10 years |
Using conditions of above replacement time for inverter are:
(1)Environment temperature: annual average 30℃
(2)Load coefficient: below 80%
(3) Running time: less than 12 hours per day
Inverter Guarantee
For the following conditions, our company will provide guarantee service:
(1)Guarantee range only refers the inverter body.
(2) Under normal using condition, our company is responsible for the guarantee when the inverter appears fault or damages within 12months. Our company be collect reasonable maintenance fee if it is more than 12 months.
(3) It shall also collect certain maintenance fees within 12 months for the following conditions:
•Operate the machine no in accordance with the operation manual, which leads to damage of inverter
•Inverter damages are caused by water, fire and abnormal voltage etc.
•Inverter damages are caused by wrong wiring and so on.
•Damage is caused by using inverter in abnormal function.
(4)Related service charges will be calculated according actual cost. If there is contract, it is processed according to the principle of contract with priority.

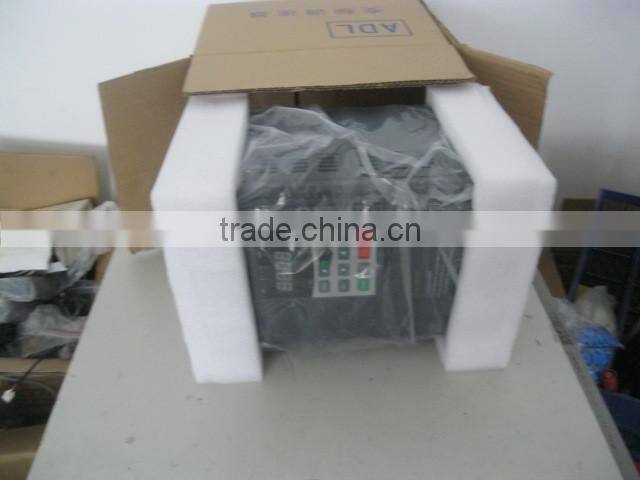

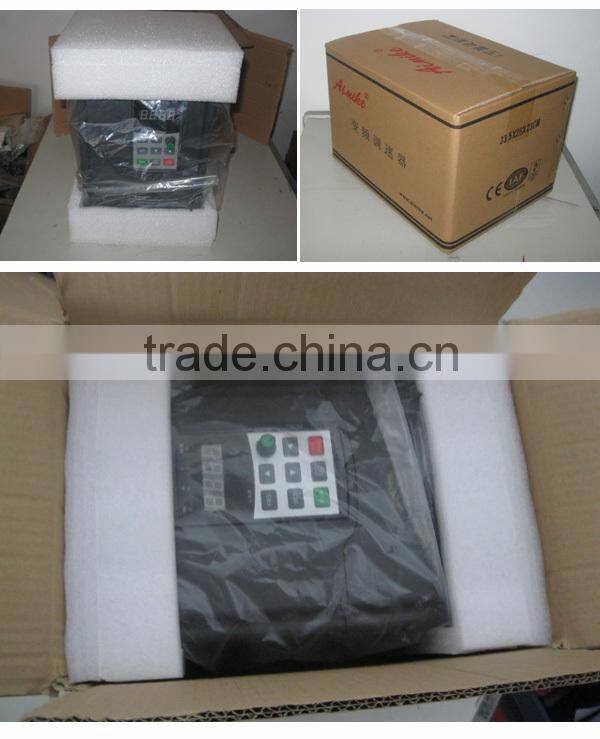

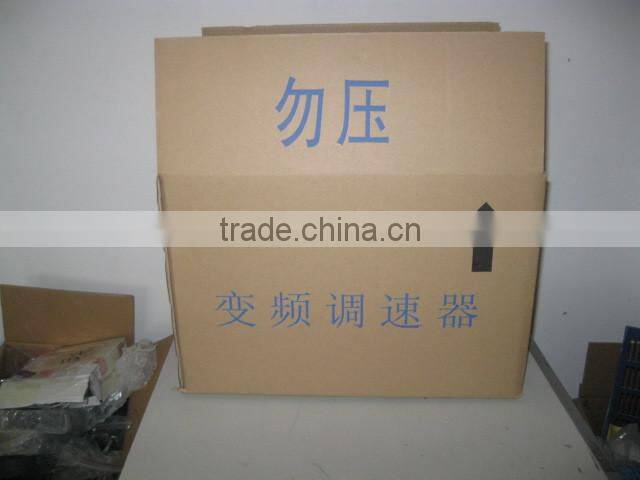

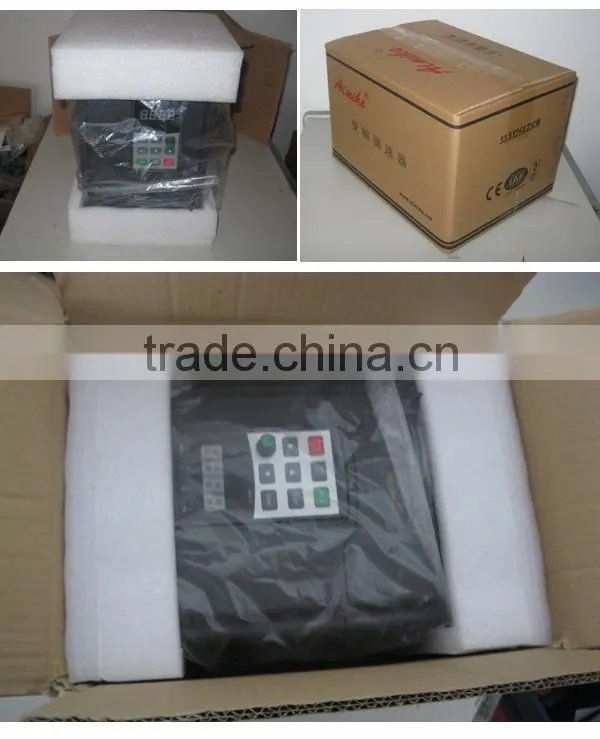

Packaging Detail: We use different kind of cartons for different products from Carton/honeycomb carton and wood-plate boxes.
Shippment:.By air or by sea or by your own forwarding agent.
Please Notes
1.Power: 0.75KW-630KW
2.Standard export package, suitable for long distance transportation.
3.Product attached one AMK operation Panel.
4.Network cable, bland filler panel or other options would be chose and charged.
5.The above price does not include tax, tax needs an extra charge of 17 %.
6.The charges of packing are bore by buyers.

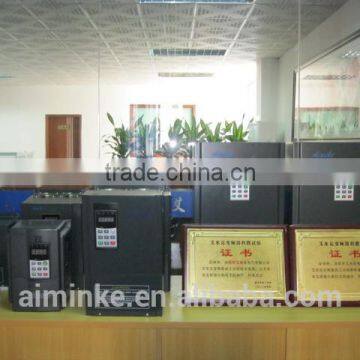

Product Catalog
We are professional in inverter for many years, and have a lot of experience in selling and producing. We here to promise the best quality/service and price will be provided after your choice. Wish we have the change to cooperate.
1. What is inverter?
Inverter is an electronic equipment that change the frequency of ac.High
2.Are you manufacturer or trading company?
We are the only manufacturer of inverters.Welcome to visit our factory at any time.
3. what's the payment term?
We accept T/T. L/C at sight
4. What's the delivery time ?
Normal model,1-3days,because we have ability to do the stock.
For big order(more than 10,000usd),it takes about 7-15days.
5. What is the standard of package?
Export standard package or special package according to customer requirement
6.what kind of certificate you have ?
We have ISO9001, CE, ROHS, other certification is under doing.
common Questions:
1.About Payment: We accept T/T. Werstern Unio. L/C at sight
2.About delivery time: Depend on your quantity, normally, 1-15 days.
3.Abot Package: We use different kind of cartons for different products from Carton/honeycomb carton and wood-plate boxes.
If you have any questions, pls feel free to contact me at any time! Thanks for your visit !
