50hz to 60hz High Performance 3 Phase 110kw Asynchronous Inverter With Great Price

  Specification of 110kw Vector control ac frequency converter 60hz 50hz

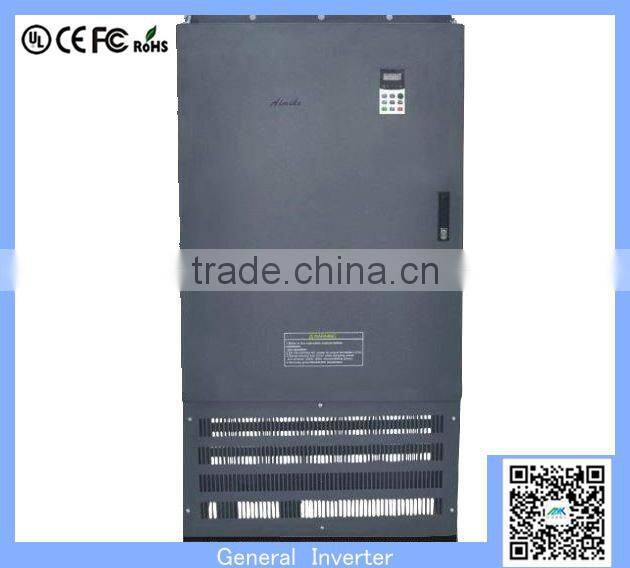

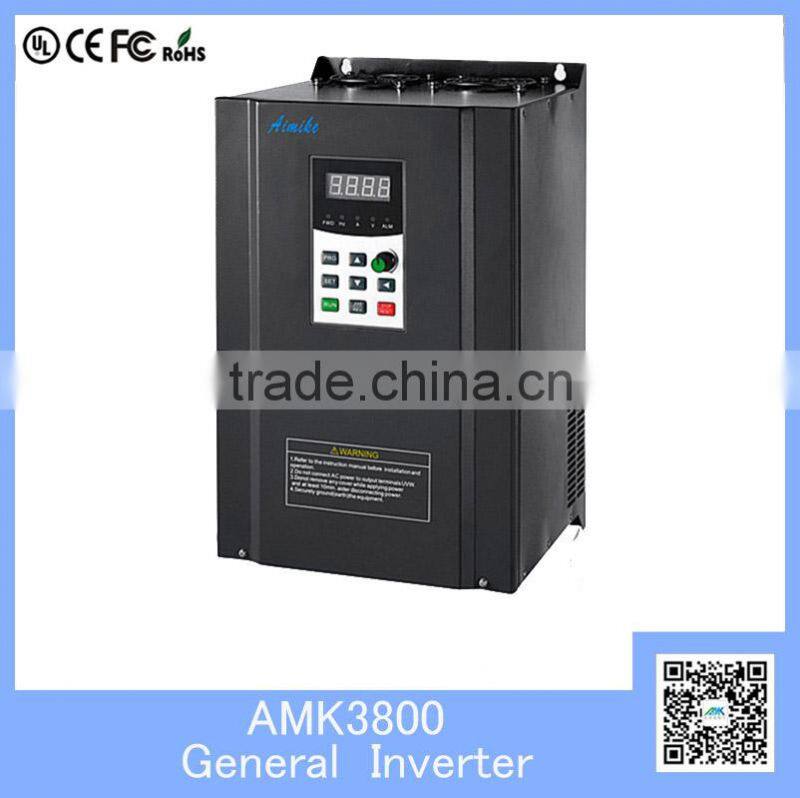

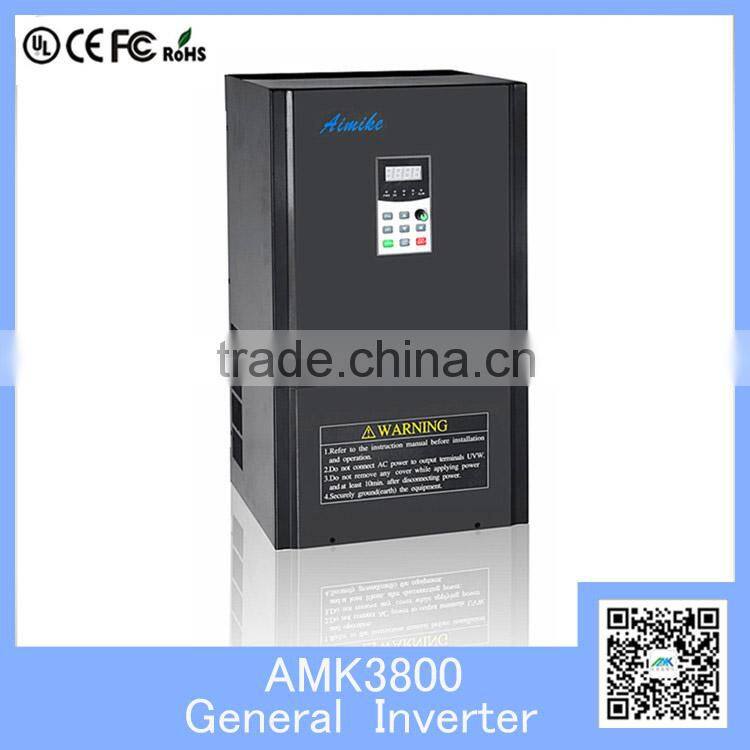

 Picture of  Vector control ac frequency converter 60hz 50hz

Packaging Detail: We use different kind of cartons for different products from Carton/honeycomb carton and wood-plate boxes.

Shipment:By air or by sea or by your own forwarding agent.

What is a VFD?

A Variable Frequency Drive (VFD) is a type of motor controller that drives an electric motor by varying the frequency and voltage supplied to the electric motor. Other names for a VFD are variable speed drive, adjustable speed drive, adjustable frequency drive, AC drive, microdrive, and inverter.

  Frequency (or hertz) is directly related to the motor’s speed (RPMs). In other words, the faster the frequency, the faster the RPMs go. If an application does not require an electric motor to run at full speed, the VFD can be used to ramp down the frequency and voltage to meet the requirements of the electric motor’s load. As the application’s motor speed requirements change, the VFD can simply turn up or down the motor speed to meet the speed requirement.

What's a VFD consist of?

Generally, variable frequency drive contains two components: rectifier and inverter. The rectifier converts incoming AC power to DC power, then the inverter converts DC power to the desired frequency AC power. In addition to these two parts, variable frequency drive may also contain transformer and battery. Wherein the transformer changes the voltage and isolates input/output circuit, the battery compensates energy loss inside the VFD drive circuit.

How does a VFD work?

A VFD receives the AC power supply from the AC mains source and outputs a modulated power signal to the NovaTorque motor in a wave pattern known as Pulse Width Modulation (PWM). This power signal provides both speed control and electronic commutation.

Why should I use a VFD?

Reduce Energy Consumption and Energy Costs

If you have an application that does not need to be run at full speed, then you can cut down energy costs by controlling the motor with a variable frequency drive, which is one of the benefits of Variable Frequency Drives. VFDs allow you to match the speed of the motor-driven equipment to the load requirement. There is no other method of AC electric motor control that allows you to accomplish this.

Electric motor systems are responsible for more than 65% of the power consumption in industry today. Optimizing motor control systems by installing or upgrading to VFDs can reduce energy consumption in your facility by as much as 70%. Additionally, the utilization of VFDs improves product quality, and reduces production costs. Combining energy efficiency tax incentives, and utility rebates, returns on investment for VFD installations can be as little as 6 months.

Increase Production Through Tighter Process Control

By operating your motors at the most efficient speed for your application, fewer mistakes will occur, and thus, production levels will increase, which earns your company higher revenues. On conveyors and belts you eliminate jerks on start-up allowing high through put.

Extend Equipment Life and Reduce Maintenance

Your equipment will last longer and will have less downtime due to maintenance when it’s controlled by VFDs ensuring optimal motor application speed. Because of the VFDs optimal control of the motor’s frequency and voltage, the VFD will offer better protection for your motor from issues such as electro thermal overloads, phase protection, under voltage, overvoltage, etc.. When you start a load with a VFD you will not subject the motor or driven load to the “instant shock” of across the line starting, but can start smoothly, thereby eliminating belt, gear and bearing wear. It also is an excellent way to reduce and/or eliminate water hammer since we can have smooth acceleration and deceleration cycles.

The input frequency of variable frequency drive is 50Hz  or 60Hz?

Rated input frequency of variable frequency drive is 50Hz.Almost input frequency of variable frequency drive which made in China is 50Hz.

Can this variable frequency drive make AC input,DC output come ture?

The current chage method is AC-DC-AC that means the input is AC and output is also AC.

Can thia variable freuqency drive step up or step down the voltage?

The input voltage is 220V+/-20% or 380V+/-20%,and the output voltage is 0-220V or 0-380V.If you want setp up or step down the voltage,you can buy a voltage transformer and matched with our products to change this voltage.

We are professional in inverter for many years, and have a lot of experience in selling and producing. We here to promise the best quality/service and price will be provided after your choice. Wish we have the change to cooperate.
