R2005KB Rotary Evaporator-20L-SENCO- Distillation Equipment
US$ 6,000 - 6,600
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Distillation
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rotary Evaporator Pilot Scale R2005KB-20L With Patent Tech. Senco MadeUS$ 5,000 - 6,000MOQ: 1 Unit -
Rotary Evaporator 2L R206B Lab Scale --Senco Made Popular SalesUS$ 500 - 1,200MOQ: 1 Unit
-
Rotary Evaporator Lab Scale 5L R502B Se Nco MadeUS$ 1,200 - 1,500MOQ: 1 Unit
-
Ex-Proof R5005K2B(EX) 50L-Rotary Evaporator -Water Bath+ Bump Prevention+ Tandem Receiving System + Overall Flange JointsUS$ 11,500 - 13,250MOQ: 1 Unit
-
R1002B 10L Rotary Evporator- In Pilot Prodction Evaporating FieldUS$ 3,900 - 4,200MOQ: 1 Unit
Condition
New
Application
Distillation
Power Source
Electric
Process
Vacuum Distillation
Place of Origin
Shanghai, China
Brand Name
SENCO
Model Number
R2005KB
Voltage
220V, 50/60Hz
Power(W)
6Kw or 3.6Kw (Ex)
Dimension(L*W*H)
110*65*190H
Weight
180Kg
Certification
CE & ISO
Warranty
13 Month
After-sales Service Provided
Overseas third-party support available
Specifications
Rotary Evaporator R2003KB- Capacity: 20L
- Bath: 99C
- Can perform non-stop receiving process;
- Equipped cold trap
ROTARY EVAPORATOR SENCO (20L w/Water Bath)
Model:R2005KB
Model Available: R1002B, R2002B, R2005K2B, R2005K2D ,R5005KB
Evaporating Flask Capacity: 5L~20L
Receiving Flask: 10L~5L
Bath Temp.: 100C max
Features:
- High vacuum performance;
- Rich function, friendly operation experience, easy assebly structure;
- Tandem Type Continuous Receiving Technology.
- With complete flange joint, no glass seizure risk. Mirror effect glass flanges generated from fine processing technics guarantees good connection sealing, interchangeability, and no-damage assembly.
Product Description
R2005KB
| Standard Model | R2005KB | R5005KB | |
| 1 | Charging Valve | PTFE | PTFE |
| 2 | PTFE Discharge Valve | PTFE | PTFE |
| 3 | PTFE Rotary Seal Assembly | YES | YES |
| 4 | Product overall Flange Joints | YES | YES |
| 5 | Taper Joint PTFE Sleeve | no need | no need |
| 6 | Frequency Conversion Speed Control | YES | YES |
| 7 | Vacuum Meter | YES | YES |
| 8 | Throttle Valve for Vacuum | YES | YES |
| 9 | Evaporating Flask Spanner | YES | YES |
| 10 | Cooling Circulation Nozzle Thread Adaptor | YES | YES |
| 11 | Thermometer Neck for Vapor | YES | YES |
| 12 | Tandem Type Continuous Receiving | YES | YES |
| 13 | Digital Display | Bath Temp., Rotation Speed | Bath Temp., Rotation Speed |
| 14 | Evaporating Flask Unload Handler | Optional | Optional |
| 15 | Ex-proof Motor* | Optional | Optional |
| 16 | Steam Heating * | Optional | Optional |
| 17 | Cold Trap Protection System | Optional | Optional |
| 18 | Bumping System | Optional | Optional |
| 19 | big Evaporation Neck upgrade * | Optional, F145 | Optional, F145 |
| 20 | Optional Evaporating Flask (baffles available at request) | 5L, 10L | 10L, 20L |
| 21 | Over-current Protection | YES | YES |
| 22 | No-spark Electronic Control | YES | YES |
| 23 | Ex-proof upgrade* | Ex-proof modification on Motor, Rotation & Heating Control Box; Lower heating power density; Equip Dry Heat and Overheat Cut-off Protector | |
Mirror effect glass flanges generated from fine processing technics guarantees good connection sealing, interchangeability, and no-damage assembly.
Senco valves resist various chemicals, have good cleaning level and applicable under -50°C~200 °C.
Special structure design fulfill no-tool disassemble and maintenance to glass connections. No pieces of screws, gaskets or small accessories fall during operation.

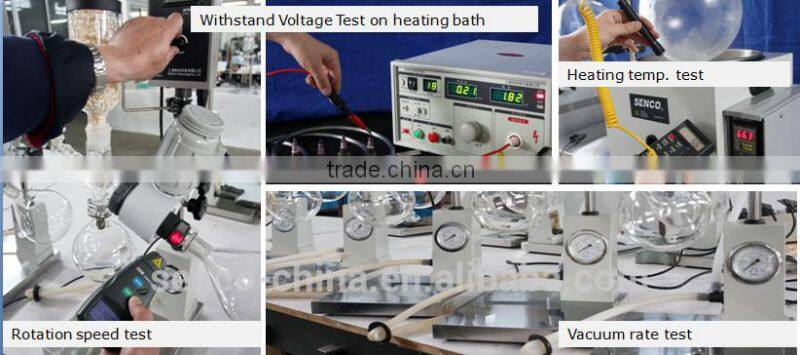

Various test to guarantee the quality of the Products

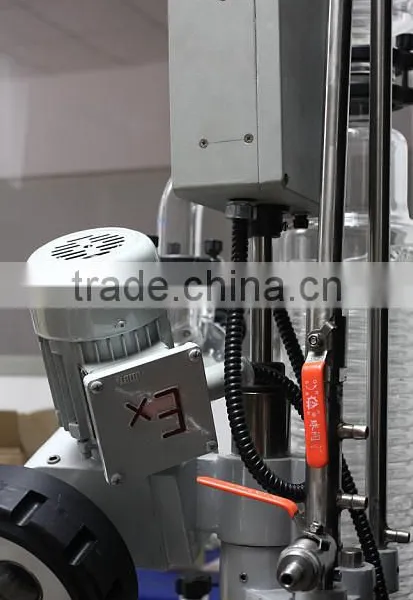

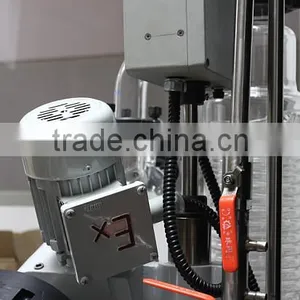

Ex-Proof Upgrade is optional

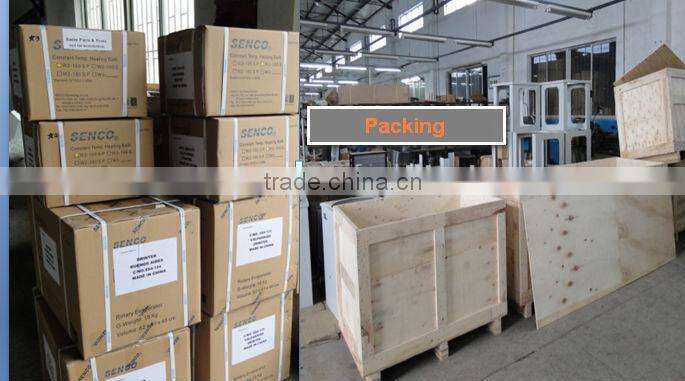

Packaging & Shipping
Our Services
Company Information

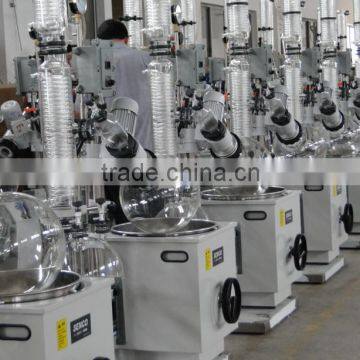

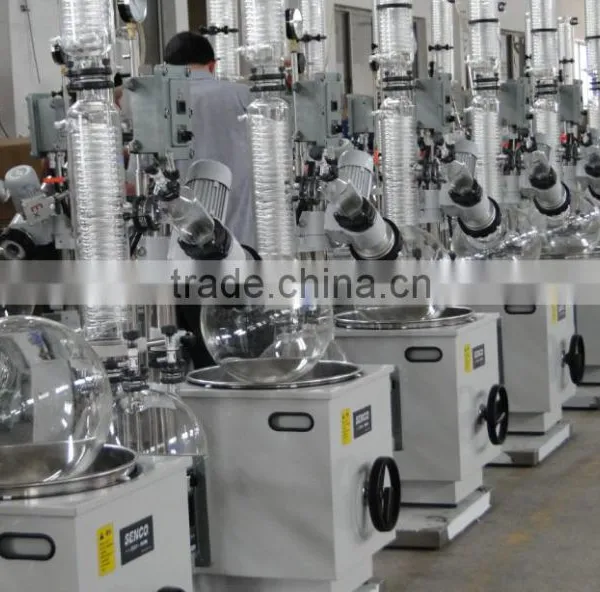

*Engineering team presided over by professor level chief engineer who has over 30 years practical working experience. Products inherit characters of Safe, Durable and Efficient.

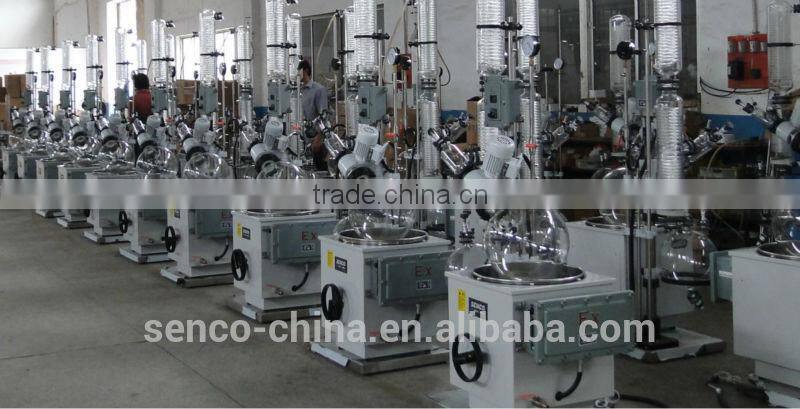

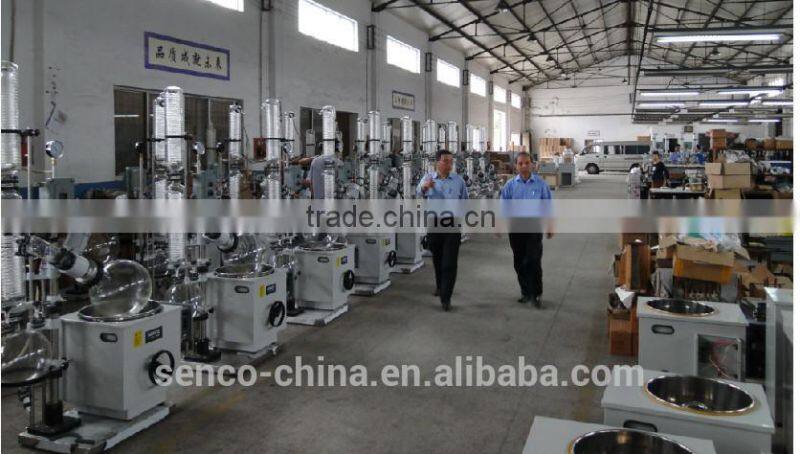

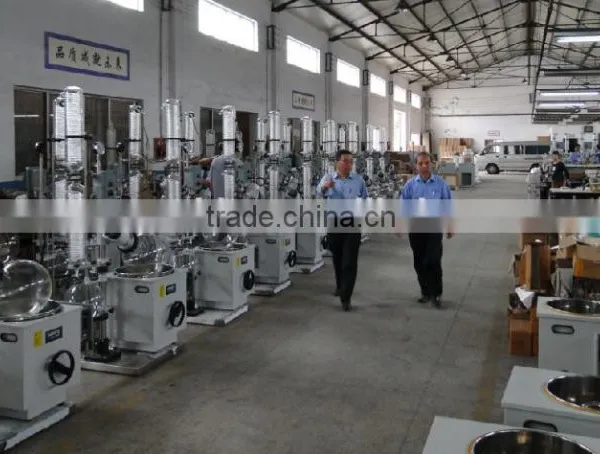

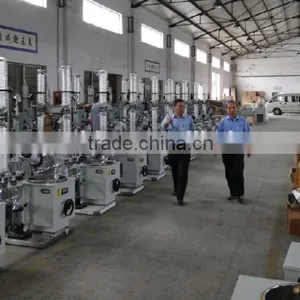

*Factory occupies 2300m2 land, is able to guarantee pure Senco quality and fast delivery. Genuine products assured from factory direct sale.
FAQ
1- How to Installation ?
Modular design of Senco products can let end user successfully as the guide of User Manual.
2 - How to purchase spare parts ?
Email to support at or phone +8621-63040662 us what kind of parts on which specific model is needed,
and then we will send the spare parts by express .
3- Is any third-party do oversea service ?
Korea , India and Turkey are available
