R5005KB 50L Rotary Evaporator SENCO Tandem Receiving, Hot Sale
US$ 9,600 - 9,800
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Distillation
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
R5005K2B 50L-Rotary Evaporator -Water Bath+ Bump Prevention+ Tandem Receiving System + Overall Flange JointsUS$ 9,200 - 11,000MOQ: 1 Unit -
R2002B 20L SENCO Rotary Evaporator (Economic Model) + Water Bath +PTFE Discharging ValveUS$ 5,300 - 5,600MOQ: 1 Unit
-
R1002B 10L Rotary Evaporator -SENCO-Water Bath + Receiving Flask With PTFE Discharging ValveUS$ 3,900 - 4,200MOQ: 1 Unit
-
R5005K2D 50L Rotary Evaporator - SENCO -Oil Bath + Bump Prevention+ Overall Flange Joint+ Tandem Receiving SystemUS$ 9,990 - 10,200MOQ: 1 Unit
-
R5005K2B & R5005K2D 50L Rotary Evaporator With Tandem Receving Function +All Flange Joints+Bumping Protection+ Water or Oil BathUS$ 8,500 - 11,000MOQ: 1 Unit
Condition
New
Application
Distillation
Power Source
Electric
Process
Vacuum Distillation
Place of Origin
Shanghai, China
Brand Name
SENCO
Model Number
R5005KB
Voltage
380 V
Power(W)
9 Kw
Dimension(L*W*H)
130*80*200H (cm)
Weight
250 Kg
Certification
CE & ISO
Warranty
13 Month
After-sales Service Provided
Overseas third-party support available
Specifications
Rotary Evaporator R5005KB- Capacity: 50L
- Bath: 99C
- Can perform non-stop receiving process;

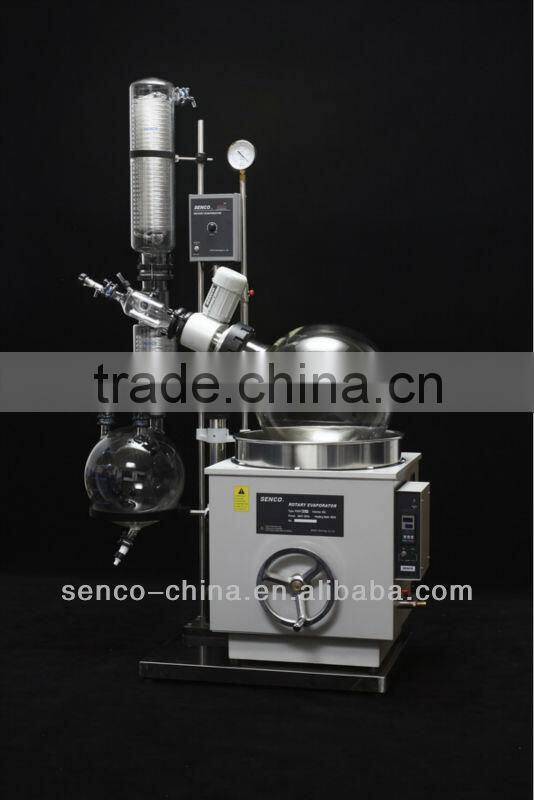

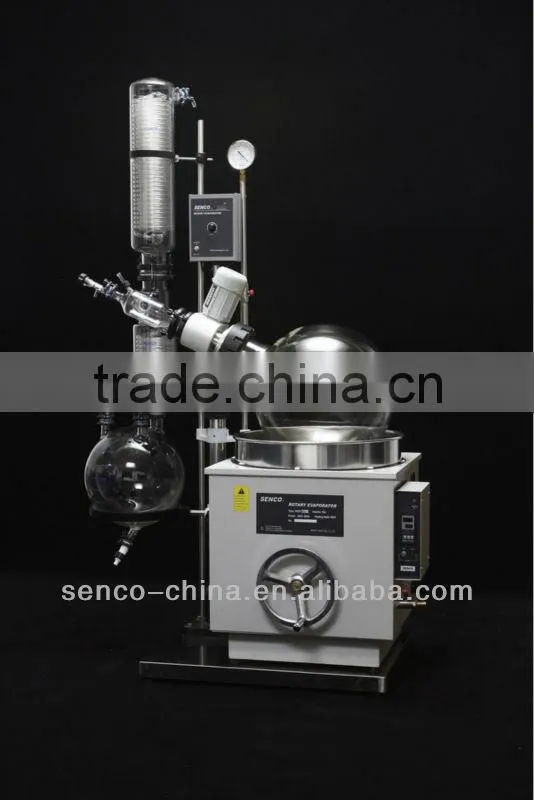

ROTARY EVAPORATOR SENCO (50L w/Water Bath)
Model:R5005KB
Model Available: R1002B, R2002B, R2005K2B, R5005KB
SENCO is a among first brands in China, if featured as "Safe. Durable. Efficient", and serves middle and high-end users mainly.
Capacity: 5L~50L
Bath Temp.: 100C max
Bath Temp.: 100C max
Features:
- High vacuum performance;
- Bath Lifting;
- Rich function, friendly operation experience, easy assebly structure;
- Popular model among Senco rotary evaporators.
- Tandem Type Continuous Receiving Technology.
- New model 2012 with complete flange joint, no glass seizure risk.
- Mirror effect glass flanges generated from fine processing technics guarantees good connection sealing, interchangeability, and no-damage assembly.

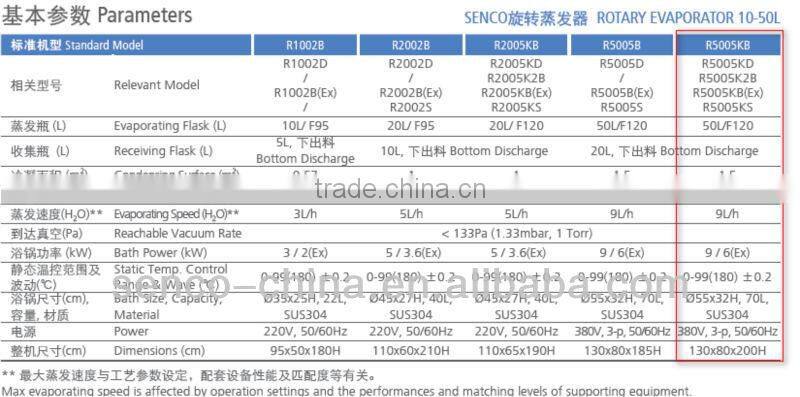

| Standard Model | R5005KB | |||||
| Relevant Model: | R5005KD R5005K2B R5005KB(Ex) R5005KS |
|||||
| 1 | Evaporating Flask (L) | 50L/F120 | ||||
| 2 | Receiving Flask (L) | 20L, Bottom Discharge | ||||
| 3 | Condensing Surface (m2) | 1.5 | ||||
| 4 | Rotation Speed (rpm) | 3-110 | ||||
| 5 | Evaporating Speed (H2O) | > 9L/h | ||||
| 6 | Reachable Vacuum Rate | < 133Pa (1.33mbar, 1 Torr) | ||||
| 7 | Bath Power (kW) | 9 / 6(Ex) | ||||
| 8 | Static Temp. Control Range & Wave (°C) | 0-99(180) ±0.2 | ||||
| 9 | Bath Size, Capacity, Material | Ø55x32H, 70L, SUS304 | ||||
| 10 | Power | 380V, 3-p, 20A | ||||
| 11 | Dimensions (cm) | 130x80x200H | ||||

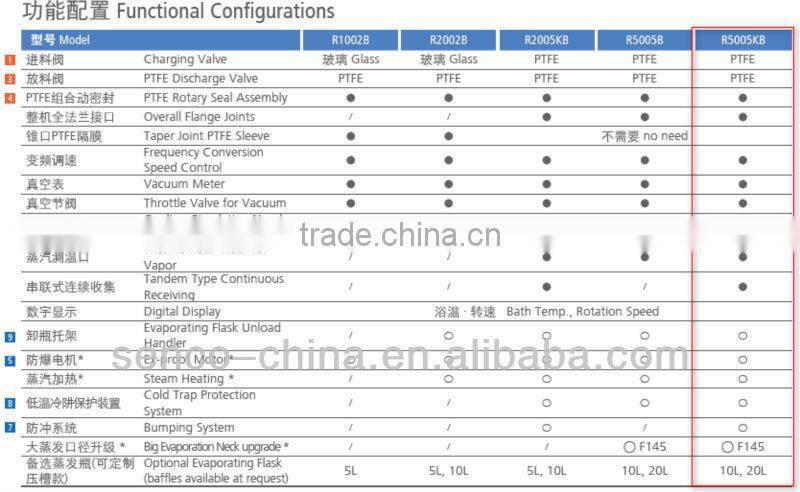

| Function Configurations | ||||||
| 1 | Charging Valve | PTFE | ||||
| 3 | PTFE Discharge Valve | PTFE | ||||
| 4 | PTFE Rotary Seal Assembly | Equipped | ||||
| 15 | Product overall Flange Joints | Equipped | ||||
| 16 | Taper Joint PTFE Sleeve | no need | ||||
| 17 | Frequency Conversion Speed Control | Equipped | ||||
| 18 | Vacuum Meter | Equipped | ||||
| 19 | Throttle Valve for Vacuum | Equipped | ||||
| 20 | Evaporating Flask Spanner | Equipped | ||||
| 21 | Cooling Circulation Nozzle Thread Adaptor | Equipped | ||||
| 22 | Thermometer Neck for Vapor | Equipped | ||||
| 23 | Tandem Type Continuous Receiving | Equipped | ||||
| 24 | Digital Display | Bath Temp., Rotation Speed | ||||
| 9 | Evaporating Flask Unload Handler | Optional | ||||

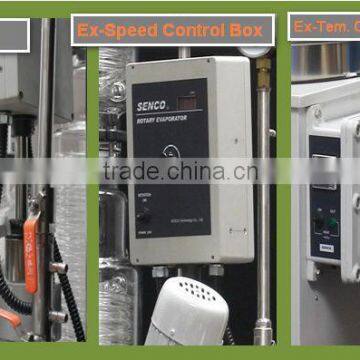

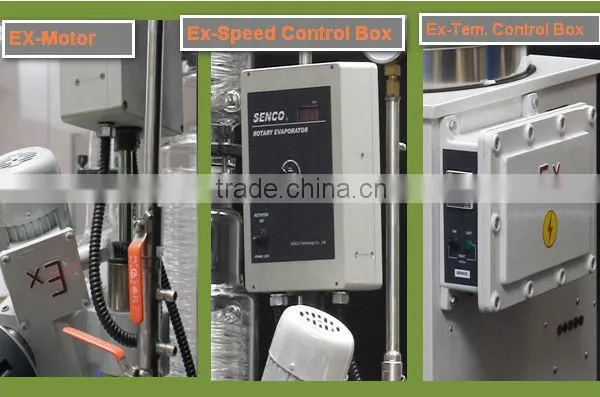

| 5 | Ex-proof Motor* | Optional | ||||
| 27 | Steam Heating * | Optional | ||||
| 8 | Cold Trap Protection System | Optional | ||||
| 7 | Bumping System | Optional | ||||
| 30 | big Evaporation Neck upgrade * | Optional F145 | ||||
| 31 | Optional Evaporating Flask (baffles available at request) | 10L, 20L | ||||

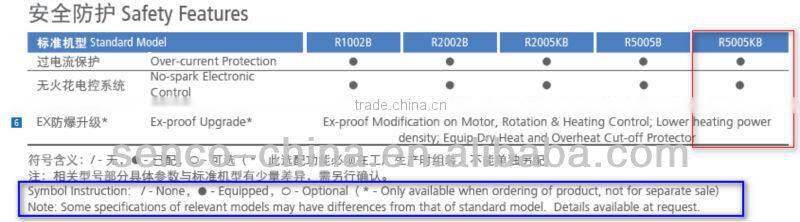

| Safety Features | ||||||
| 32 | Over-current Protection | Equipped | ||||
| 33 | No-spark Electronic Control | Equipped | ||||

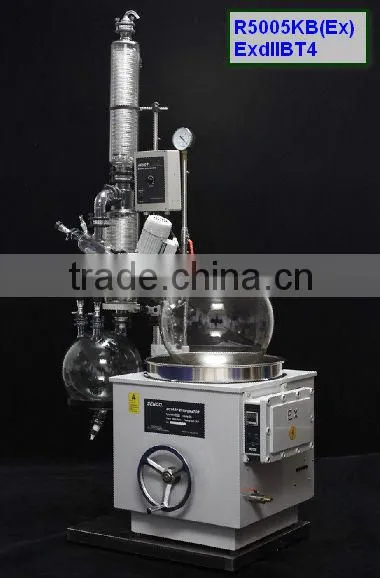

| 6 | Product Ex-proof upgrade* |
Opitonal |
||||
R5005KB

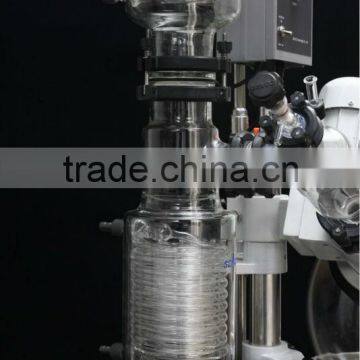

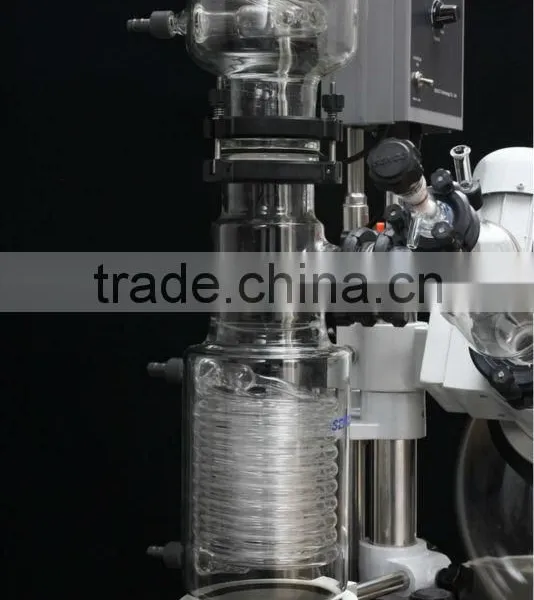

Tandem Type Continuous Receiving Technology
Evaporation Performace --- System vacuum does not drop during discharging shift. Sample received keeps consistent quality.
Structure Rationality --- Easier installation and maintenance in compact tandem type structure. Leakage points reduced by 50%. Ultimate system vacuum is improved further in Senco Tandem Type Receiving Structure.

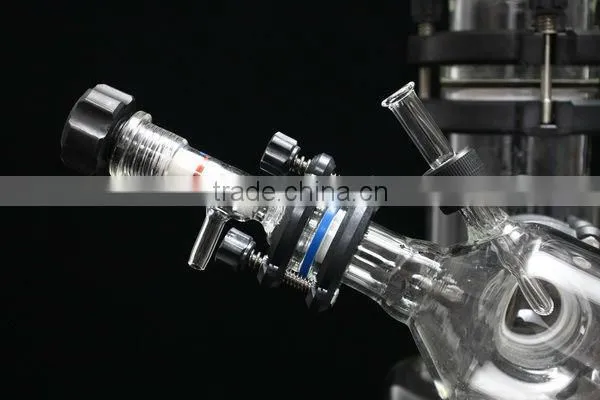

Mirror effect glass flanges generated from fine processing technics guarantees good connection sealing, interchangeability, and no-damage assembly.

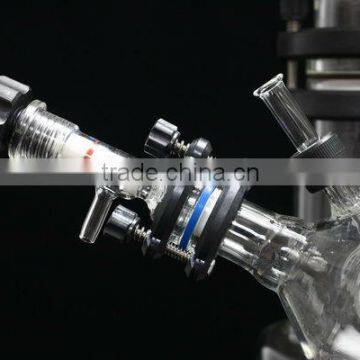

Senco valves resist various chemicals, have good cleaning level and applicable under -50°C~200 °C.
Special structure design fulfill no-tool disassemble and maintenance to glass connections. No pieces of screws, gaskets or small accessories fall during operation.

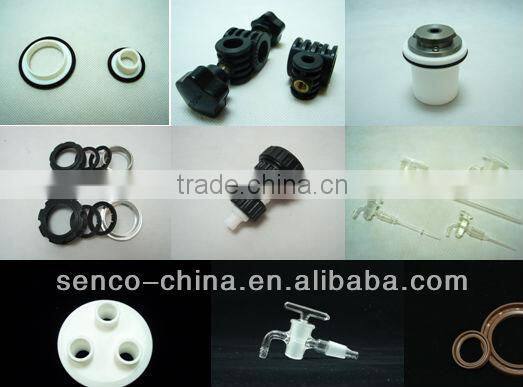

Spare parts are provided lifelong whennever users purchased the equipment one years ago or ten years ago.
Withstand voltage test
Rotary Speed Test
Temperature Calibrate on Heating Bath
*Engineering team presided over by professor level chief engineer who has over 30 years practical working experience. Products inherit characters of Safe, Durable and Efficient.
*Factory occupies 2300m2 land, is able to guarantee pure Senco quality and fast delivery. Genuine products assured from factory direct sale.
