Specifications
FJ2003 Jacketed Reactor-Working Temp: -70C~200C;
- 7+1 necks integrative reaction flask
- Frequency Conversion Stir

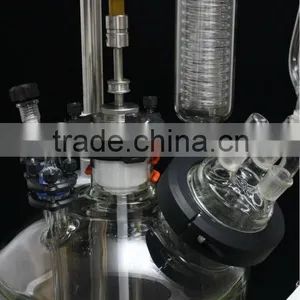

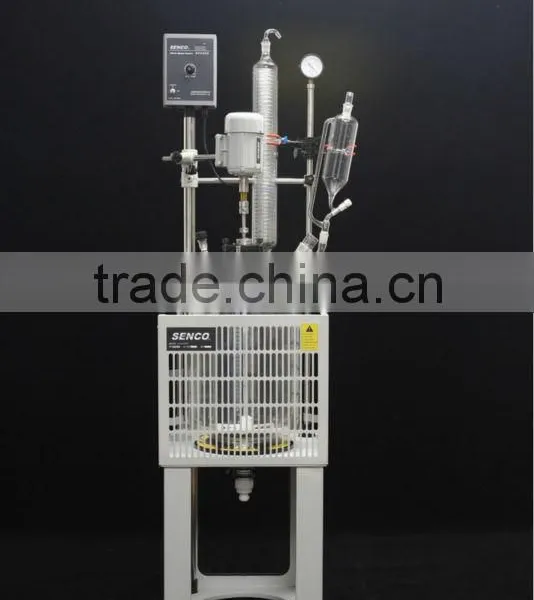

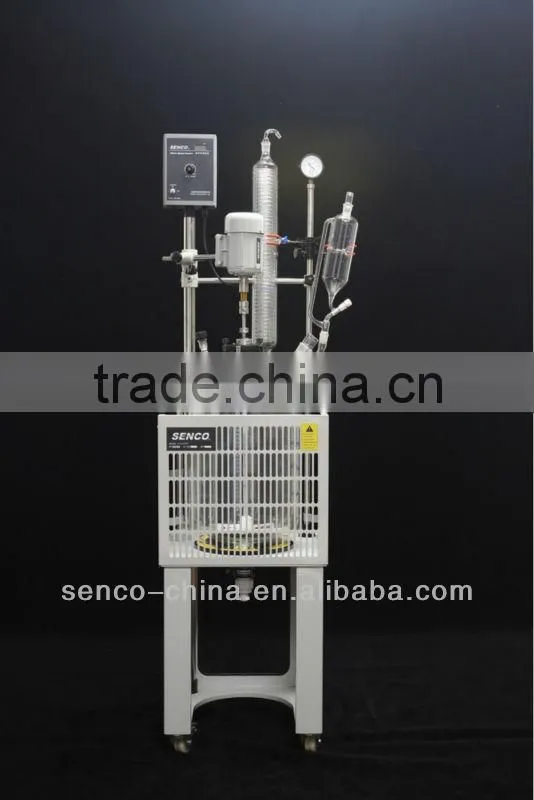

20L Integrated Jacketed Reactor with Complete Flange Joints Connection

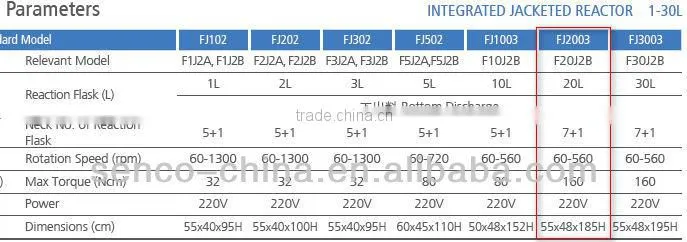

Model: FJ2003
Capacity: 20L
Neck No. of Reaction Flask: 7+1
Neck function : Stirring , Condensing, Multifunction neck Thermometer,Charging, ,Dripping + Discharging

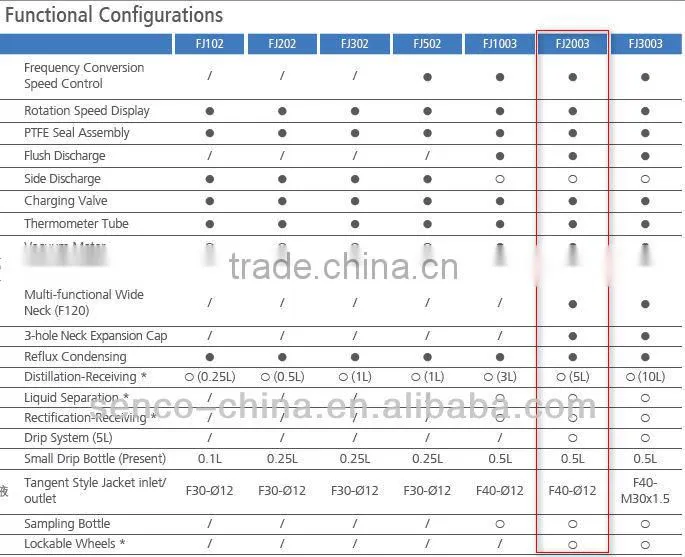

Main Functions
| Standard Model | FJ2003 | |
| 1 | PTFE Seal Assembly | Equipped |
| 2 | Flush Discharge | Equipped |
| 3 | Side Discharge | Optional |
| 4 | Auto CW/CCW Stir * | Optional |
| 5 | Multi-functional Wide Neck (F120) | Equipped |
| 6 | 3-hole Neck Expansion Cap | Equipped |
| 7 | Reflux Condensing | Equipped |
| 8 | Distillation-Receiving * | Optional (5L receiving Flask ) |
| 9 | Liquid Separation * | optional |
| 10 | Rectification-Receiving * | optional |
| 11 | Drip System (5L) | optional |
| 12 | Drip Bottle (Present) | 0.5L. 5L is optional |
| 13 | Sampling Bottle | optional |

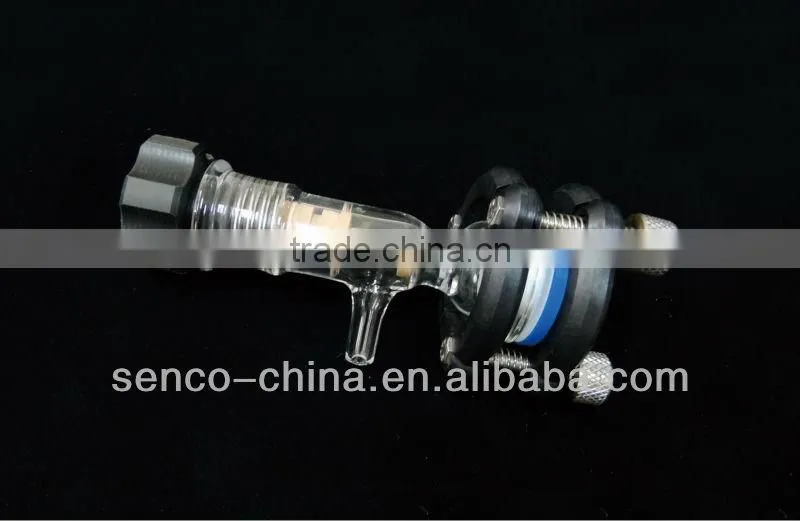

1- Charging Neck
Size and materiel :Flange F40, V6/F40 PTFE charging valve
1)Liquid/Gas charging under vacuum
2)Is abloe to connect with PEP pipe.

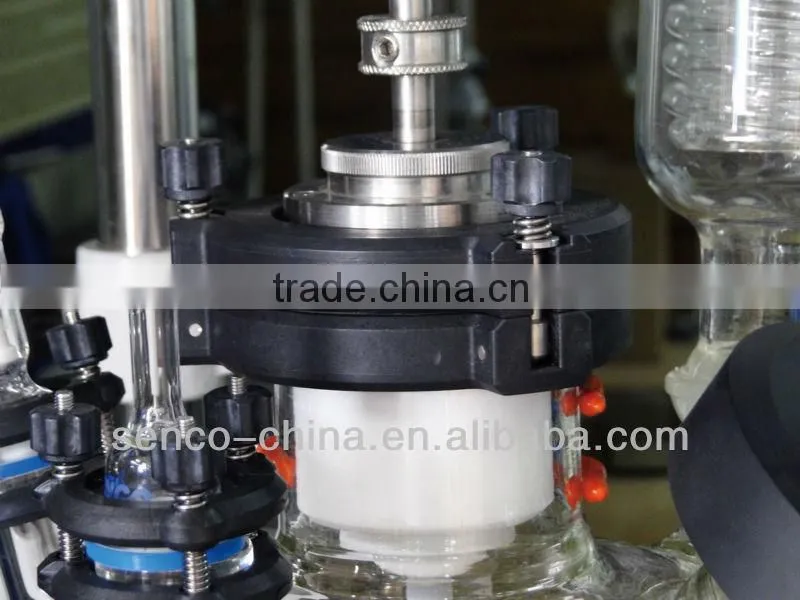

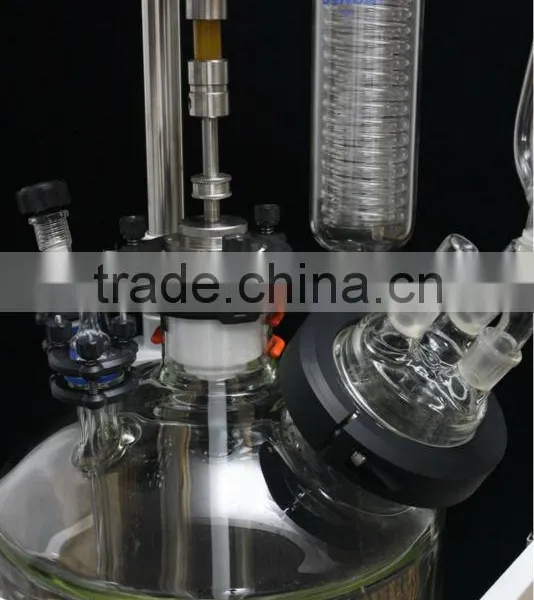

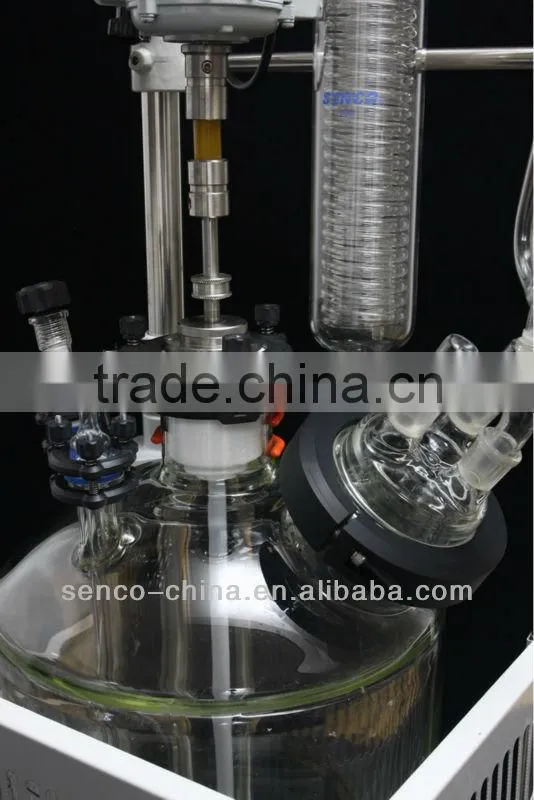

2- Stirring Neck
Size and material: Flange F95, Frequency conversion stirring system + PTFE seal & Bering System
1)Stirring seal assembly resistant to corrosion and abrasion ; High Strength
2)Good Sealing

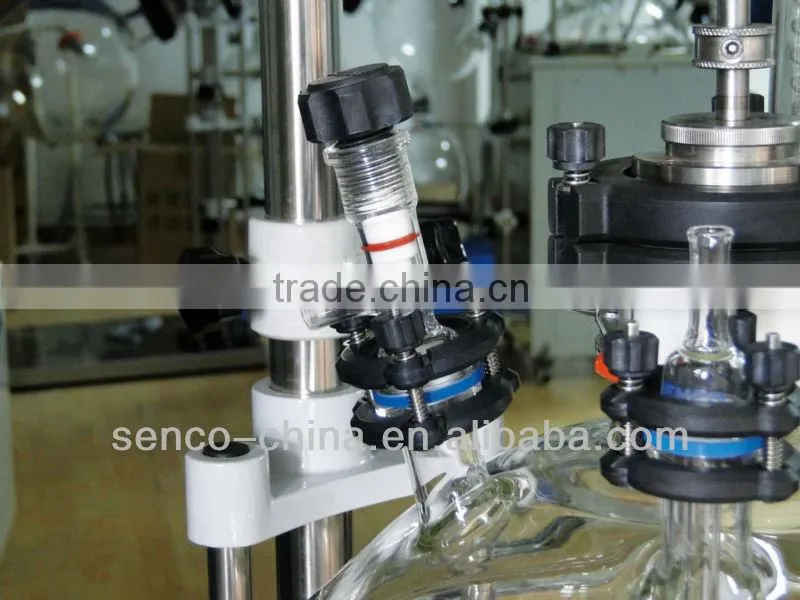

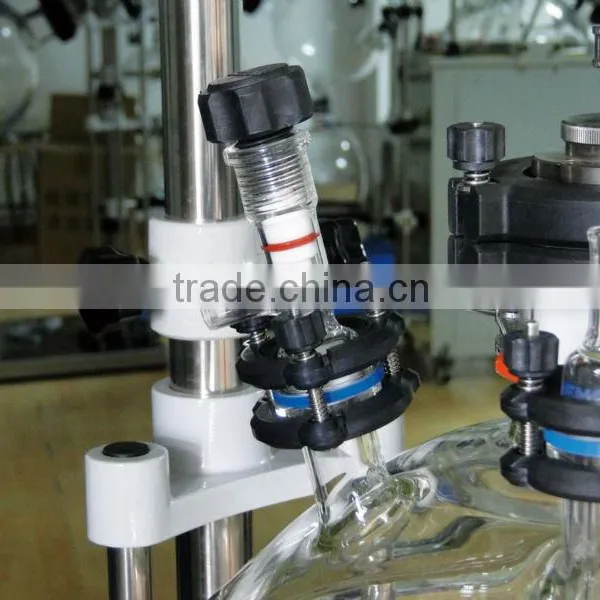

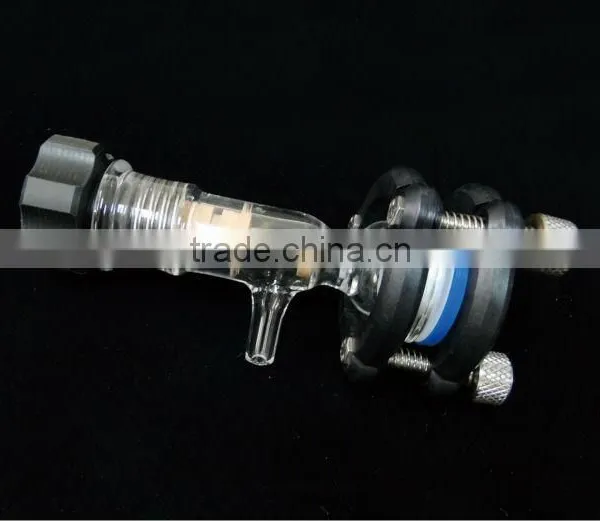

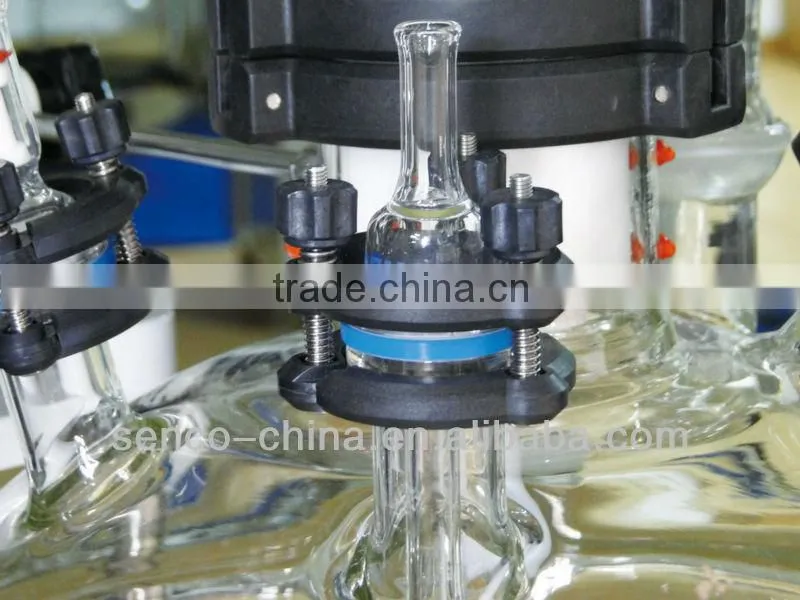

3- Thermometer Neck
Size and material: Flange F40. Glass thermometer tube. Digital thermometer is optional.
1)No contact between thermometer and reactant

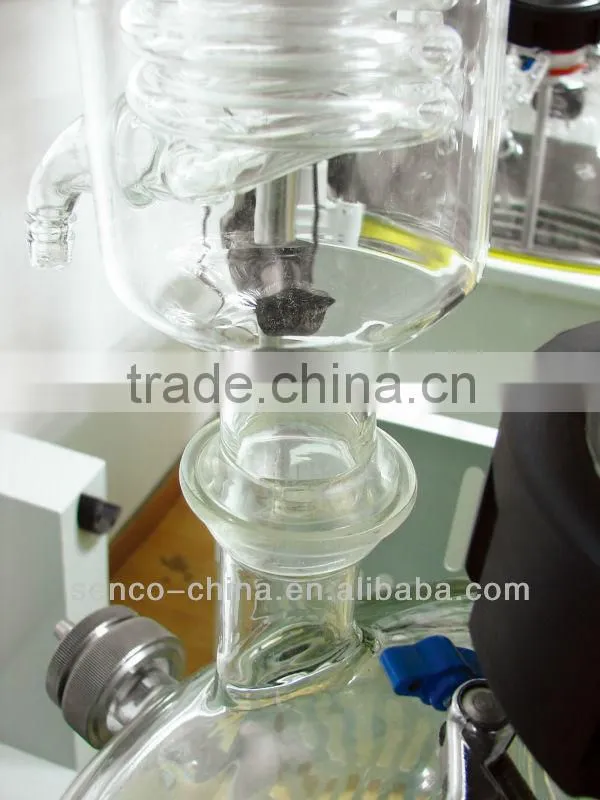

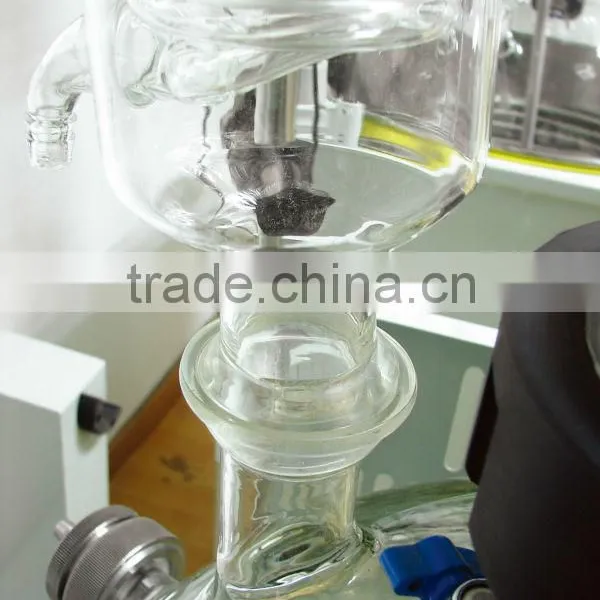

4- Condensing neck
Size and material: Spherical S51. High efficient reflux condenser( Distilling-receiving system is optional)
1)Ball joint reduces vibration of condenser and make glass joint safe and flexible.

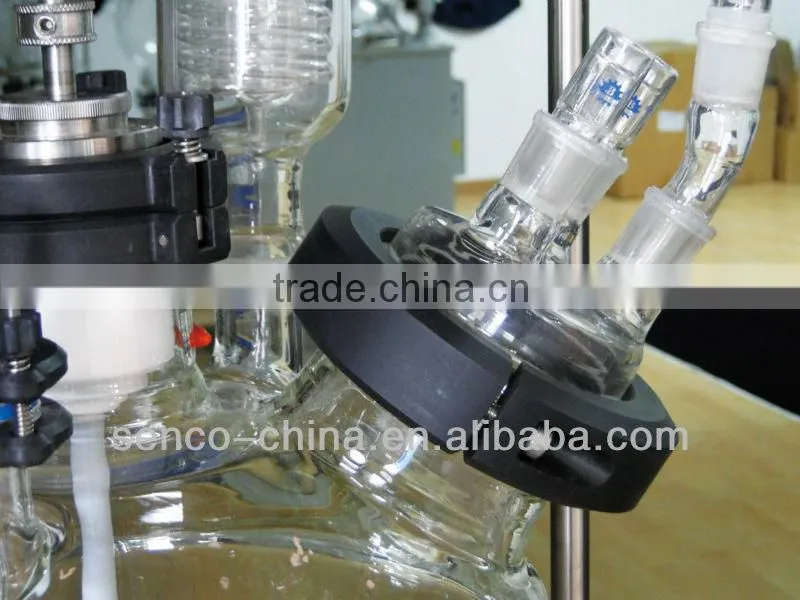

5- Multifunction Neck
Size and material : Flange F120. PTFE/Glass Sealing Cap. Allow to install drip system, gas feeding device as option.
1)For solid feeding, upside discharging and convenient hand wash inside flask.
2)Is able to expand to 3-neck for more adds-in.

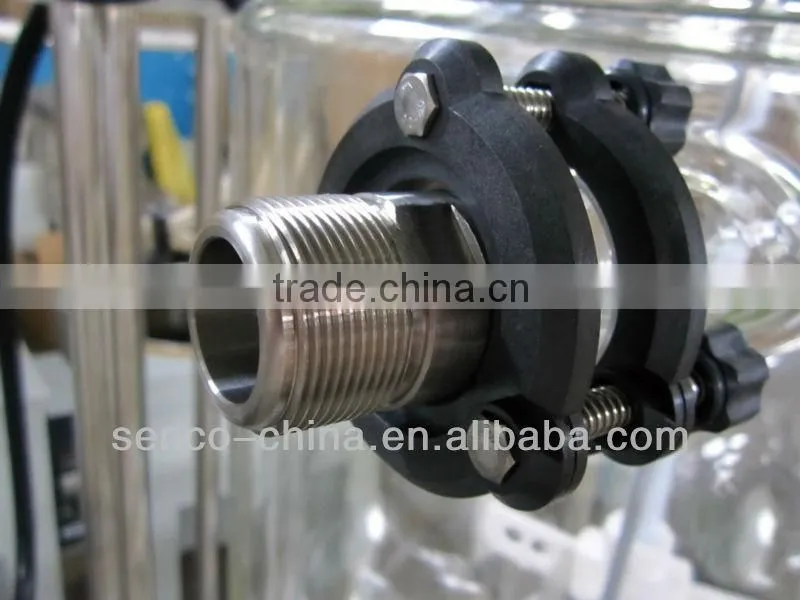

6-Jacket liquid inlet/outlet
Size and material: Flange F40, Stainless stell demountable transition joint.
1)Wise diameter allows quick jacket liquid circulation and efficient heat transfer.
2)Transition joint fits for different diameter rubber pipe.

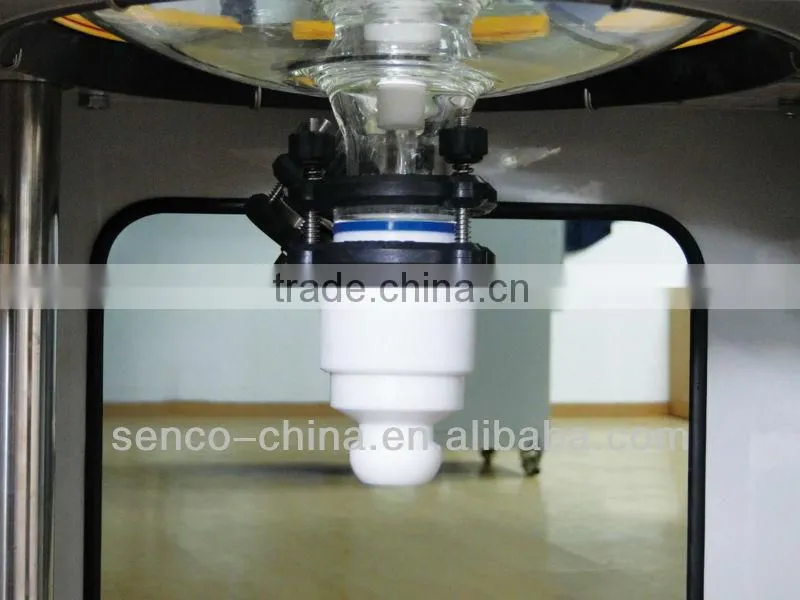

8- Discharging Neck
Size and material : Flange V20/F50, PTFE no-liquid-accumulation discharging valve.
1)No-dead-angle reaction, complete PTFE valve, anti-corrosion.
2)Drain diameter reaches 20mm.

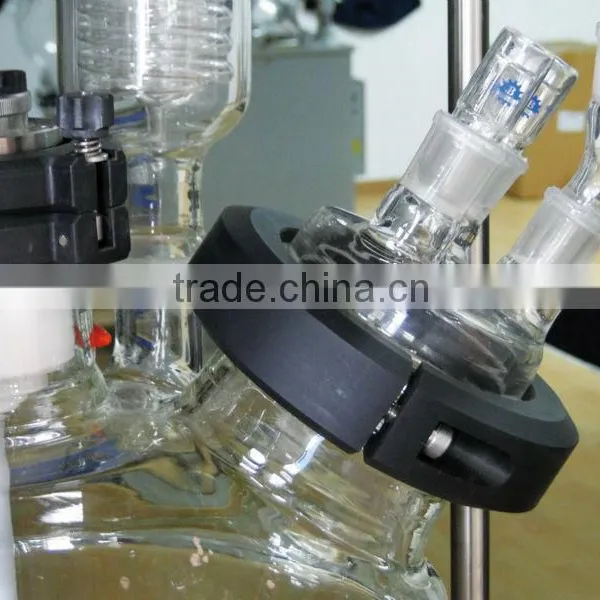

9-Flange Quick Press Ring
One-piece quick clip design. Offer new experiences on easy, reliable, and high sealing connection for flanges.
10- Spare parts supply forever
spare parts could be supplied forever no matter user purchased the machine 1 year ago or 10 years ago.

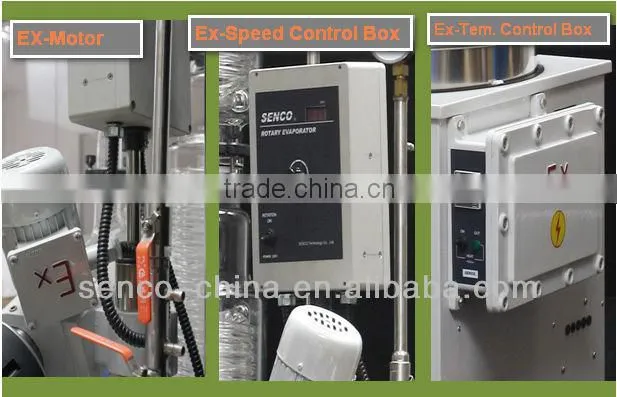

11- Ex-Proof upgrade Optional
Ex Level: ExdIIBT4 or ExdIIBT2 could be optional for users
