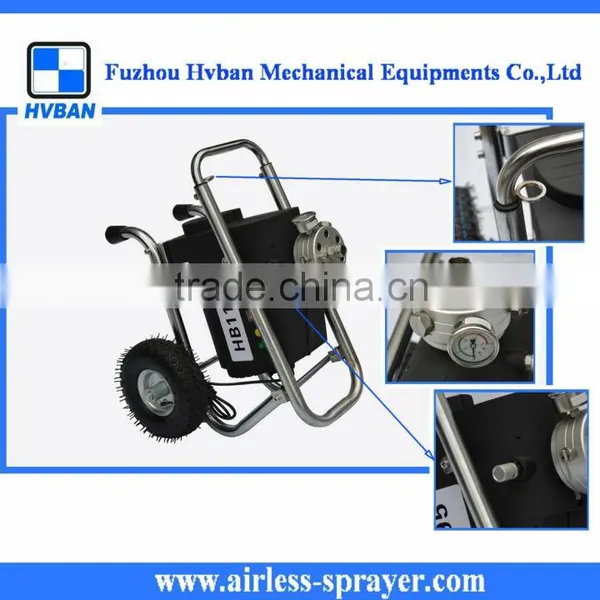

double guns, 3.7L, high pressure airless paint sprayer

Specifications

Model: HB-1195
Output:3.7L/M
Pressure:25Mpa
Dynamic Power: 1500W
Tip:0.029

Double Guns 3.7L high pressure airless paint sprayer



HB-1195 airless sprayer is new designed belt-driven airless diaphragm pump sprayer, with stronger power output, and more paint delivery. It is good sprayer of choice for Medium to large size indoor/outdoor wall painting, decoration, construction, building, etc.



Feature Include:



1.Extreme duty airless paint sprayer with diaphragm pump system.



2.Reliable 1500w powerful induction motor, generate 3.7L delivering capacity, specially designed to be used daily on all residential, industrial, and commercial project.  Capable of supporting two guns spraying and long distance painting.



3. Belt-drive design for less worn

Belt-driven motor with less worn. Attached with plastic out cover to protect the motor from the dirty / dust /paint.

Attached with plastic out cover to protect the motor from the dirty/dust/paint.



4. TEFC motor

TEFC induction motor with strong power, and reliable performance, even can works 24 hours a day.



5. Trolley with pneumatic wheel

Chromed telescoping cart with inflating wheels for easy moving.



6. Gravity & Suction 2 in 1

Could be used in both Suction type (suction tube attached already) or Gravity type (Hopper cup is available with extra cost)



7. Quality proven valves

Stainless steel + tungsten of carbide inlet/outlet valve ensure you 100% good performance and long lifetime.



8. High pressure for excellent spraying

Higher pressure (max.250bar) for better atomization, and higher efficiency, ideal for medium to big contractors with large painting projects and longest distance spraying.



Technical data:



Model number	HB 1195
type	electric & diaphragm
pressure controlling	machanical
max. flow(L/M)	3.7
max. working pressure(Mpa)	25
dynamic power(W)	1500
max. tip size(In)	0.029'X1 or 0.017'X2
max hose length(M)	60
electric motor	induction motor(brushless)
paint viscosity	mediu to high
hose operating pressure	250bar/3630psi
hose exploded pressure	800bar/11620psi
both water-based & oil-based	Yes
N.W.(KGS)	47
G.W.(KGS)	50
carton size(CM)	64X56X75
spare parts of repairing	diaphragm/tip guard/filter/tip gasket
Contents in package	Airless paint sprayer, two airless spray guns, two 1/4*15m hoses, two 50cm extension poles,  repair kit.
