Our company is speciallized for gun drilling machine and deep hole drilling machine and relative tools. We had exported to more than ten countries ,good quality and in time after sale service satisfied all of our customers.
Our company has design different solutions according to customers budget,whatever you are group company or small factory,there must be a right model for you.

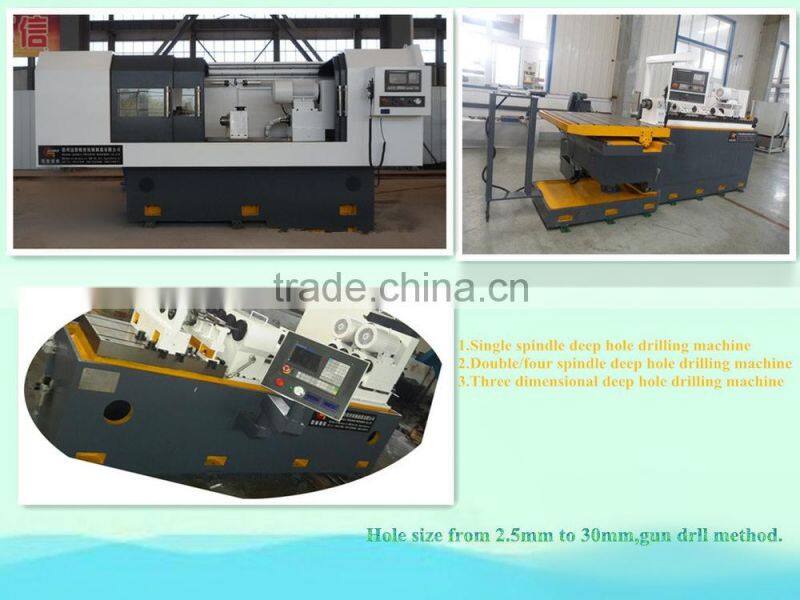

We had ZSK three dimensional gun drilling machine,combination gun drilling machine,single dimensional multi spindle gun drilling machine,and economic gun drilling machine
As soon as received your inquiry,we will response you within 8 hours.
Reply all your doubts and provided all the documents you need. After you placed the order,we will report the manufacturing process termly. Before ship the machine,we run the machine 72hours in our factory.
After ship the machine to you,we give you one year warranty,and promised pay the visit to you every year in the first five years.
Machine Brief:
Adopt gun drilling method (chips removed out) , work piece fixed , cutters rotary infeeder .
Adopt GSK cnc control system
Deep hole drilling range:Φ3mm~Φ30mm
Work piece Max. Depth :1500mm
Machining accuracy:
Deep holes screwness accuracy every 1000mm, screwness is less than 1mm
Roughness:Ra0.8~3.2um(depends on materials)
Size accuracy:IT8~IT11
Main Specifications and Features
-

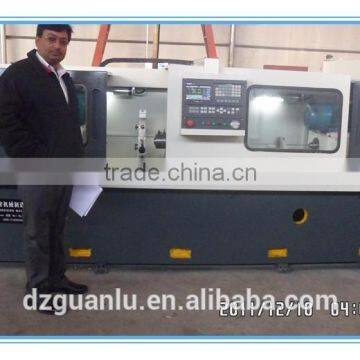

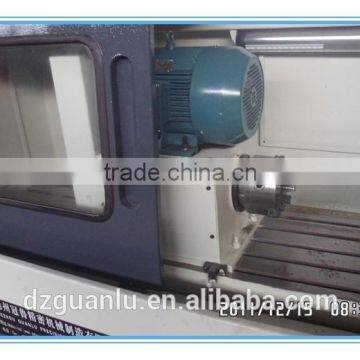

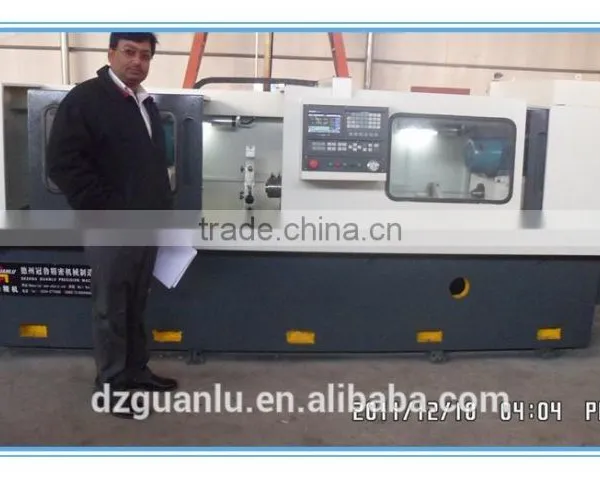

specifications technical data Range of drilling dia. 3-30mm Max. drilling depth 2500mm Spindle speed of headstock 380r/min Range of drilling box spindle speed(stepless) 600-4000r/min Feedrate range (Z axis) (stepless) 10-500mm/min Pressure range of coolant system 1-10MPa Flow range of coolant system 6-100L/min Rapid travel speed of feeding carriage 2m/min Torque of feed motor 7N⋅m Motor power of drilling box 4kW General motor power(approx.) 19kW Machine weight 8t - Some more pictures of the machine:
