T2120 BTA CNC DRILLING AND BORING MACHINE
US$ 30,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Drilling Speed:
5mm to 1000mm per min.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
T2120 DEEP HOLE DRILLING AND BORING MACHINE TO DRILL ON SOLID METAL BARUS$ 30,000 - 100,000MOQ: 1 Set -
CNC HORIZONTAL DEEP HOLE DRILLING MACHINE WITH TWO SPINDLESUS$ 30,000 - 100,000MOQ: 1 Set
-
T2120 CYLINDER BORING MACHINEUS$ 30,000 - 100,000MOQ: 1 Set
-
GUN DRILLING MACHINE WITH THREE AIXESUS$ 40,000 - 40,000MOQ: 1 Set
-
Cnc Gun Drill and Ejection Drilling Price and ManufacturerUS$ 30,000 - 100,000MOQ: 1 Set
Condition
New
CNC or Not
CNC
Drilling Speed
5mm to 1000mm per min.
Place of Origin
Shandong, China
Brand Name
GUANLU
Model Number
T2120
Voltage
220V/380V
Power(W)
50kw Roughly
Dimension(L*W*H)
ACCORDING TO MACHINE SIZE
Weight
according to model
Certification
CE ISO9001
After-sales Service Provided
Engineers available to service machinery overseas

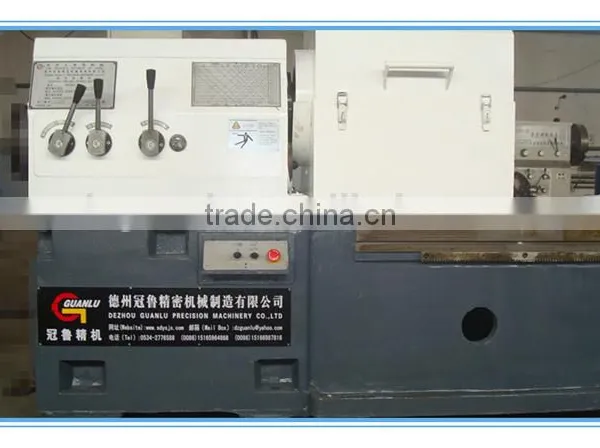

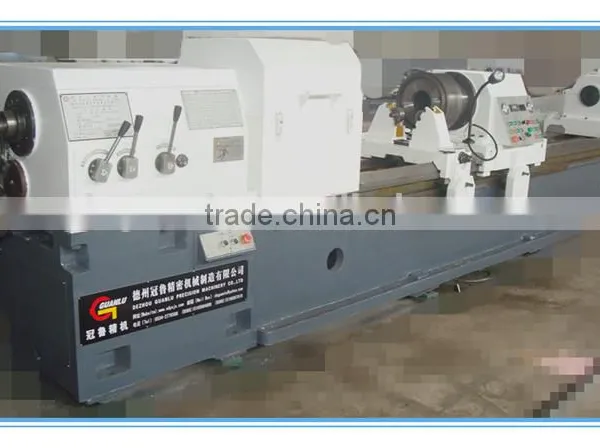

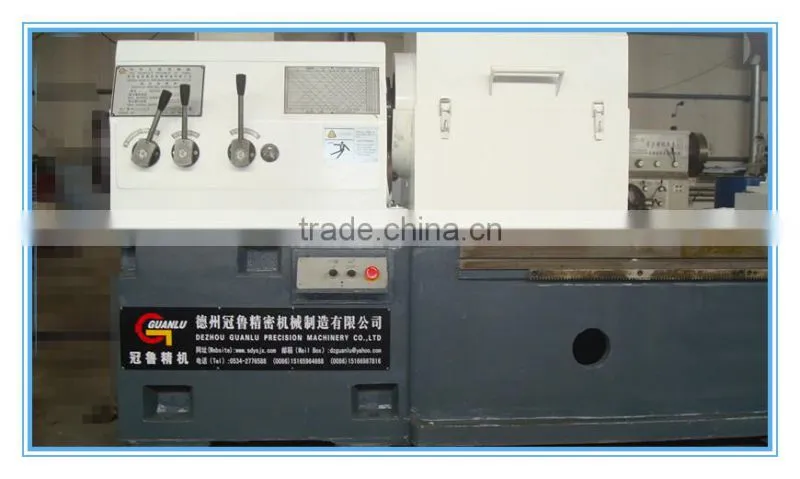

T2120 BTA CNC DRILLING AND BORING MACHINE
DRILL HOLE SIZE, 40MM~100MM
BORING HOLE SIZE, 60MM~200MM
MAX. DRILLING DEPTH CAN BE 2000MM ( STANDARD), FOR MORE, CAN BE CUSTOMIZED.

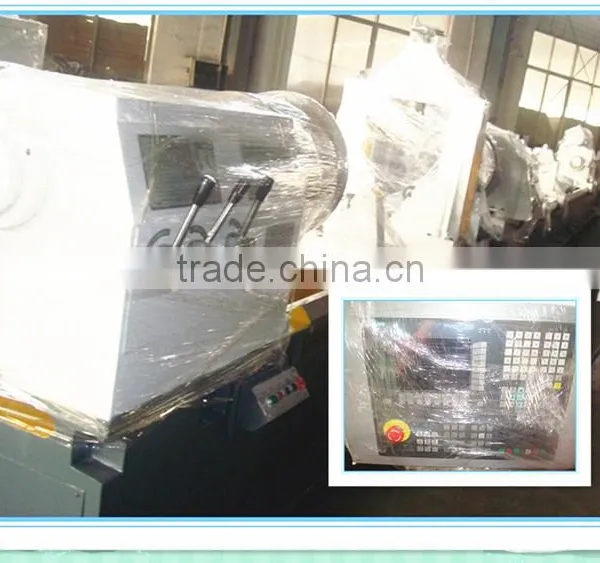

CNC CONTROL OR NOT, GSK, KND, FANUC, SIEMENS OPTIONAL.

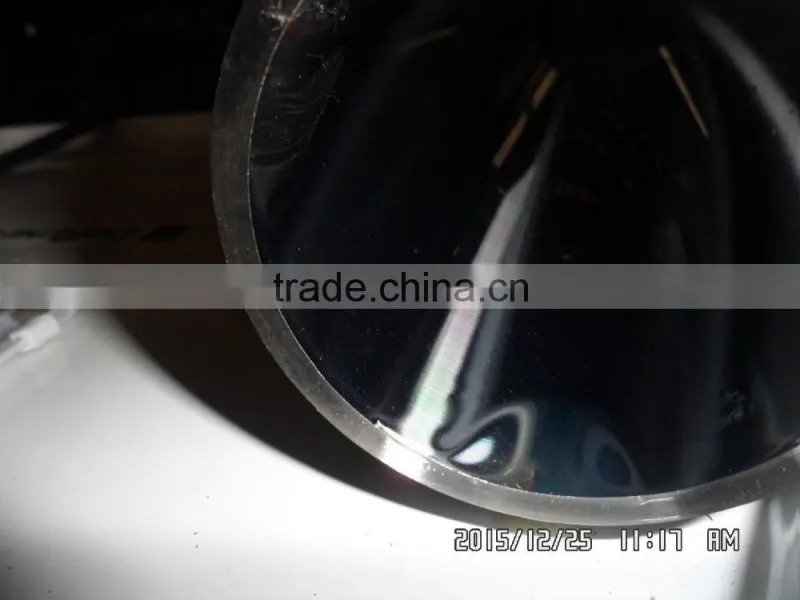

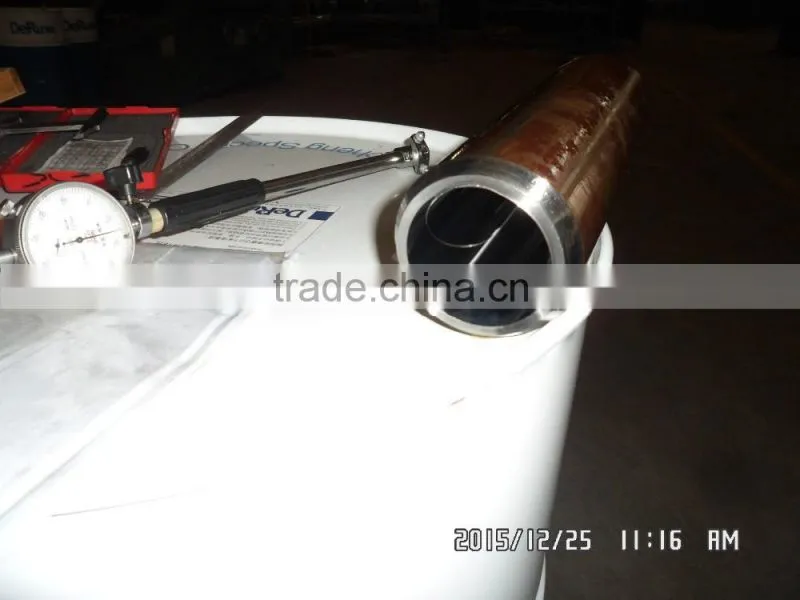

ROUGHNESS OF BORING CAN BE RA0.1MM~RA0.2MM
SIZE ACCURACY, IT7 ~ IT 11.
WE ALWAYS CAN OFFER MOST COMPETITIVE PRICE, WELL PERFORMED MACHINE, FAST SERVICE.
WELCOME TO INQUIRY FROM US.
COMPARISION BETWEEN RELATIVE DEEP HOLE DRILLING AND BORING MACHINES.
|
MODEL
|
T2120 | T2225 | T2136 | T2150 | T2180 | T21100 | T21120 |
|
DRILLING DIAMETER RANGE
|
30mm~ 100mm |
30mm ~100mm |
30mm ~100mm |
50mm ~120mm |
60mm ~150mm |
60mm ~150mm |
60mm ~150mm |
|
MAX. BORING RANGE
|
200mm | 250mm | 360mm | 500mm | 800mm | 1000mm | 1200mm |
|
MAX. BORING DEPTH
|
1m~12m | 1m~12m | 1m~12m | 1m~15m | 1m~20m | 1m~20m | 1m~20m |
| spindle center height | 350mm | 350mm | 450mm | 625mm | 800mm | 1000mm | 1300mm |
