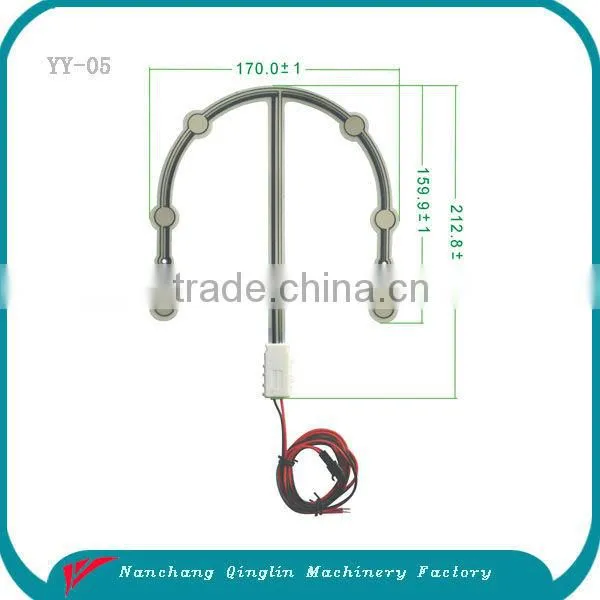

Mini bus pressure seat sensor for car seats

Performance Parameters Table

Parameter

Condition

Sign

Numerical Value

Unit

Min

Max

Working Voltage

U working

0

20

V

Working Current

I Working

0

50

mA

Non-trigger resistance value

No load

Rx=R No load

10.0K

Ω

Trigger resistance value

Bearing body

Rx=R Trigger

0

100

Ω

Insulation impedance

No load

Rx=R No load

10

20

MΩ

Specification

Material

PC

Material surface thickness

0.188mm

Output Signal

Resistance<100Ω

Film thickness

0.5+-0.1mm

Bottom glue

PET 3MDouble-sided glue

Enviroment Temperature

-15°C-80°C

Permanence

>150000 Time

Pressure range single-spot test(Special Poise)

70g

100%non-conducting

130g

100%conducting

Connector

Seal gum

To match as the seat
