Specifications
carding machine with feeder1. CE, GMP
2. PLC control
3. Double program
4. Easy Changeover
carding machine with feeder
Usuage:
Suitable for packaging with paper and plastic in the industrial of hardware, medical equipment, toys, battery, electronic products, auto parts, cosmetic ,rubber products, dinnerware, kitchen ware.
For example :
the injection, syringe, toy car, flashlight, spark plug, toothbrush , lipstick ,facial mask, chopsticks, shaver, correction fluid , ball pen, medicine and so on.
Working process:
PVC roll——PVC heating——PVC forming —— Automatic cooling —— Servo traction—— Automatic feeding (Hand-feeding) —— Feeding and inspecting cardboard —PE/ALU foil/paper card sealing —— Punching a hole —— Cutting —— Products output
Main Technical Parameter
Punching Frequency |
25time/min |
Adjustable Scope of Travel |
30-120 mm |
Max Forming Depth |
27-28 mm |
Max Forming Area |
240x160 mm |
Total Power |
380V 50Hz 5.5Kw |
Specificationa of Packing Material(PVC) |
250x0.25(0.15~0.50mm) |
Specificationa of Packing Material(PTP) |
250x0.02mm |
Air-compressor |
More Than 0.22m3/min |
Pressure |
0.5~0.7Mpa |
Machinery Dimension |
4000x750x1650mm |
Weight |
2200Kg |

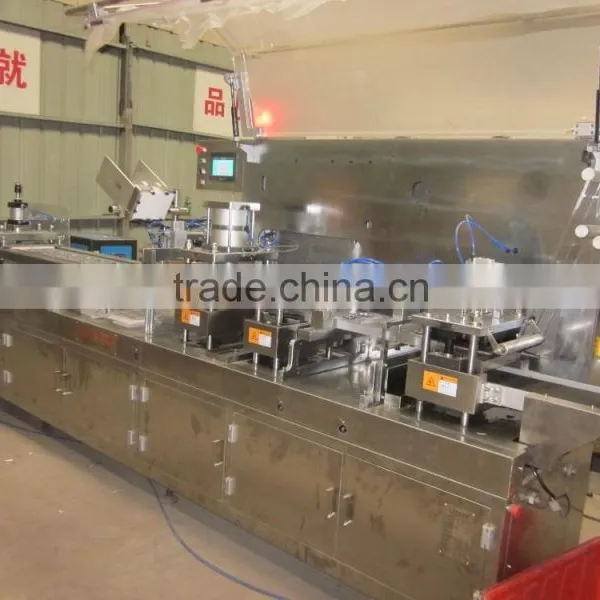

Some Part of this Machine:

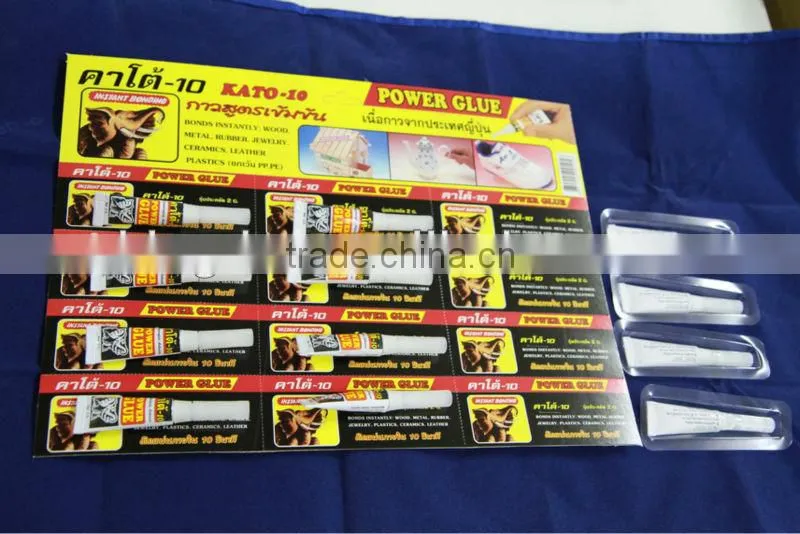

Samples:
We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
