Top Sale! paper plastic packing machine for toothbrush

Specifications

paper plastic packing machine
1. CE, GMP
2. PLC control
3. Double program
4. Easy Changeover

  paper plastic packing machine





Usuage:



Suitable for packaging with paper and plastic in the industrial of hardware, medical equipment, toys, battery, electronic products, auto parts, cosmetic ,rubber products, dinnerware, kitchen ware.



For example :



the injection, syringe, toy car, flashlight, spark plug, toothbrush , lipstick ,facial mask, chopsticks, shaver, correction fluid , ball pen, medicine and so on.



Working process:



PVC roll—­­—PVC heating——PVC forming —— Automatic cooling —— Servo traction—— Automatic feeding (Hand-feeding) —— Feeding and inspecting cardboard —PE/ALU foil/paper card sealing —— Punching a hole —— Cutting —— Products output



Main Technical Parameter



Punching  Frequency	25time/min
Adjustable Scope of Travel	30-120 mm
Max Forming Depth	27-28 mm
Max Forming Area	240x160 mm
Total Power	380V  50Hz  5.5Kw
Specificationa of Packing Material(PVC)	250x0.25(0.15~0.50mm)
Specificationa of Packing Material(PTP)	250x0.02mm
Air-compressor	More Than 0.22m3/min
Pressure	0.5~0.7Mpa
Machinery Dimension	4000x750x1650mm
Weight	2200Kg



Some Part of this Machine:

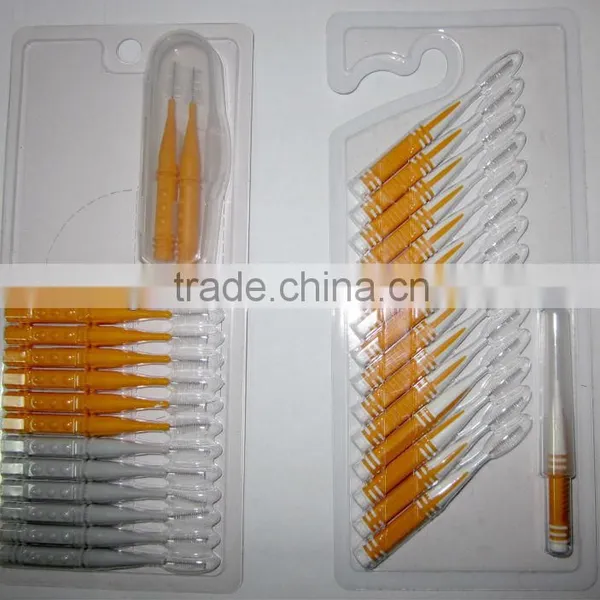

 Samples:













We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
