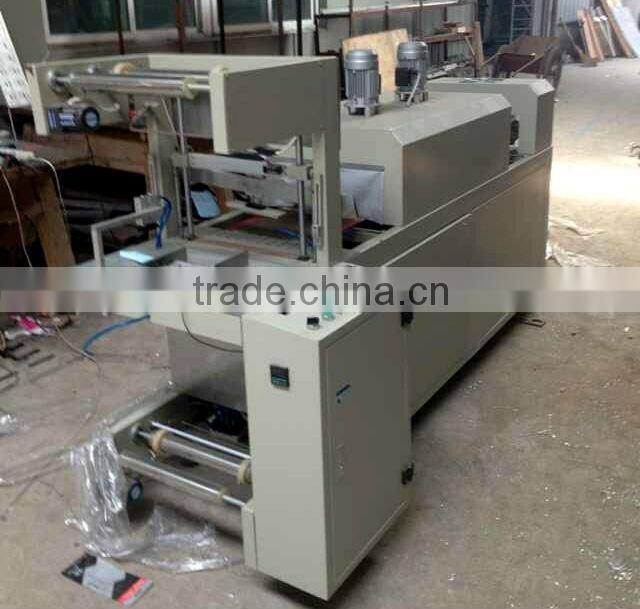

Help CenterFully Automatic Shrinking Machine
Related Products
-
Fully Automatic Shrink MachineUS$ 10,000 - 16,500MOQ: 1 Set -
Fully Automatic Shrink Packing MachineUS$ 10,000 - 16,500MOQ: 1 Set
-
Fully Automatic Shrink Wrap MachineUS$ 10,000 - 16,500MOQ: 1 Set
-
Fully Automatic Shrink Plastic Packaging MachineUS$ 10,000 - 16,500MOQ: 1 Set
-
Fully Automatic Shrink Packaging MachineUS$ 10,000 - 16,500MOQ: 1 Set
Specifications
shrinking machineConstant temperature
Famous imported PLC, electrical,pneumatic parts
Easy operating and fully automatic
shrinking machine
Characteristics
This product is applied for packaging in not shrinkage type with sleeve-type PE film the medicine boxes ,medical bottle ,foodstuff ,chemical products ,cosmetics and beverage outer boxes,it’s max speed can stand at 20 packs per minute ,the packed products are of superior quality ,it can automatically pile transfer and seal and shrink the packaging film ,its photoelectric controller controls is speed ,it is equipped with PLC controller ,it can automatically test the troubles when it is in trouble and shoot the trouble promptly ,it can be used independently and together with box-loading machine ,labeling machine in a production line
Technical date ( Specification on all machine can be changed upon request )
Sealing type |
Sleeve sealing |
Power supply |
380V 50-60HZ 3phase |
Max speed capacity |
35packs/min depend on product size |
Sealing height |
≤200mm |
Packing width |
≤500mm |
Packing length |
≤380mm |
Film type |
Center-folded polyolefin ( POF ) film / polyethylene (PE )film |
Power |
8.5kw |
Work height |
780-850mm |
Air pressure |
≤0.5Mpa |
Sealing system |
Permanently heated seal bar coat with Teflon |
Oven size |
1200mm(L) Entrance 450W ×220H mm |
Conveyor speed |
40m/min |
Conveyor |
Chain with rotating silicon coated rods |
Working height |
780×850mm |
Machine material |
Carbon steel |
Weight |
500kg |
