Specifications
automatic fasteners packing machine1. PLC & HMI
2.Automatic weighing, filling
4.Hot melt sealing
5.Count the finished produ

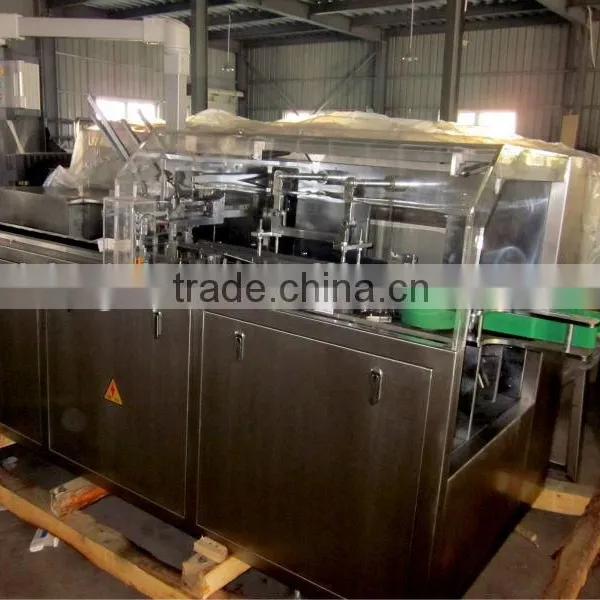

automatic fasteners packing machine
The machine can finish all action automatically like weighting ,filling ,glue-spraying and sealing ,and can count finished products.
Feature
Adopt international famous brand of electrical component such as PLC
Adopt human machine operation system
Serve feeding suitable for different specification
Automatically stop when machine overload
Automatically reject lacking pf package products and leaflet
Automatically display trouble ,alarm and counting
Main Technical parameters
Speed |
40-60 box/min |
box size |
(30-140)mm×(30-140)mm×(30-140) mm |
Available paper |
250-500g/sm (according to the dimension to confirm) |
Air pressure |
0.6-0.8Mpa |
Air consumption |
120-160L/min |
Power |
AC 380V 50HZ / 220V 60HZ |
Max power |
4kw ( single match power supply) |
Motor power |
1.5kw |
Overall dimension |
3100mm×1500mm×2370 mm (L×W×H) |
Weight |
2000kg |

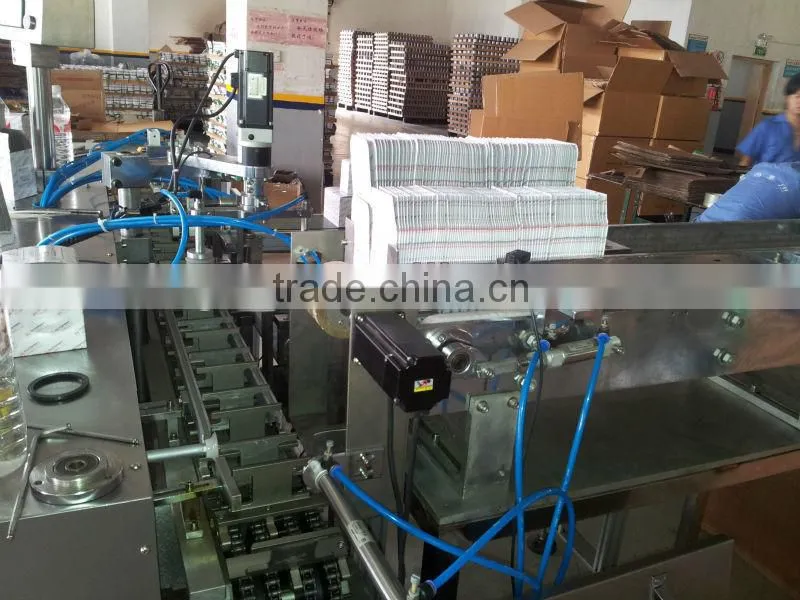

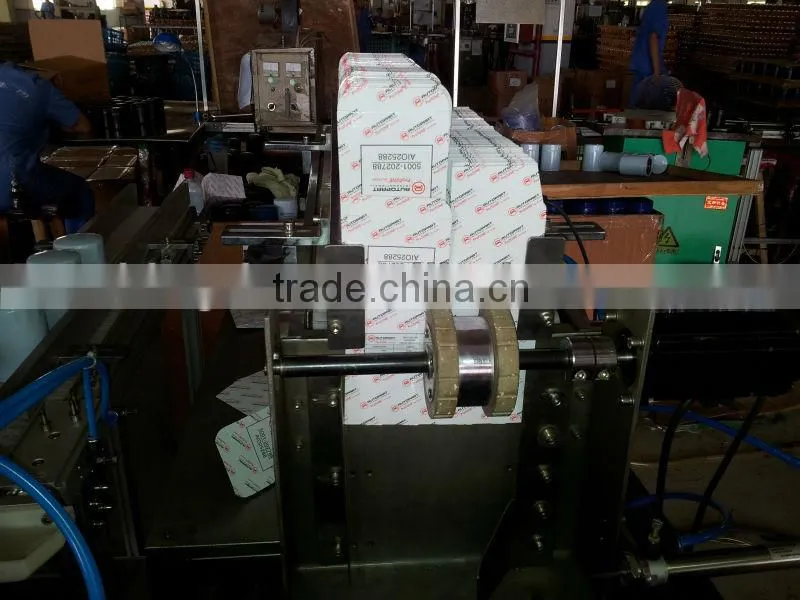

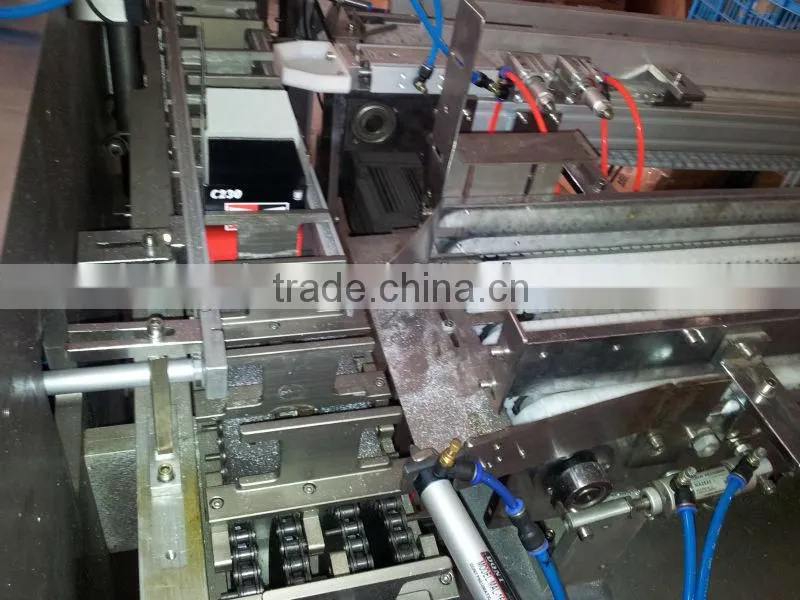

Some parts of the machine

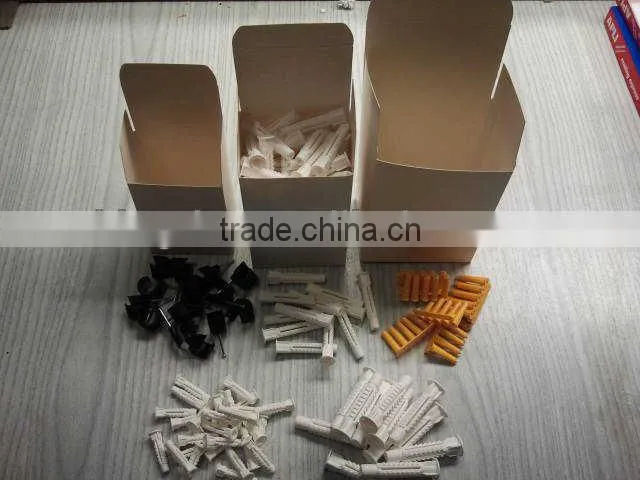

Samples
