Small Multi-function Vertical Bottle Packing Machine

FOB Price

US$ 18,000 - 28,000 / Set

1 Set(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Function	Wrapping, Boxing
Application	Food, Commodity, Other, Food, Commodity, bottle /tablet/soap etc	Packaging Type	Cartons, Bottles
Packaging Material	Paper	Automatic Grade	Automatic
Driven Type	Electric	Voltage	380V 50Hz
Power	2Kw	Place of Origin	Zhejiang, China
Brand Name	JINDE	Model Number	JD-100B
Dimension(LWH)	6200x1580x1700mm	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

bottle packing machine
1.PLC control
2.Easy operation
3.The machine can be single used or linked with other machine

bottle packing machine

Product Explanation
This machine is used to take Alu /PVC medical plate or plastic bottle(vitreous bottle) to filling in paper box automatically. lt can perform automatically the whole process of folding and conveying of leaflet, paper box forming, batch number printing and box sealing. The machine can also be linked to work with Alu/PVC packing machine, bottle filling machine and transparent film three dimensional packing machine.

Main Characteristics
Mechanical driving, variable frequency speed regulating, protection of automatic stop when the machine is over loaded;
Control with PLC program, automatically check the miss filling of medical plate and instruction book. Automatic waiting when there is no medical plate;
Equipped with the device for counting finished productsand intelligent fault display

Main Technical Parameter

Running speed	50~90(boxs/min)
Size Range of Cardboard Box	≥70X35X12mm
	≤125X100X50mm
	special machine≤160X100X60mm
Size of unfolded leaflet	(80~180)X(100~190)mm
Quality of Operation Manual	55~70g/m2
Main Motor Power	0.75kw
Power	three phase four wire system 380V 50Hz
Air-compress	0.6~0.7MPa
Air-consumption	0.12~0.16 m3/min
Overall Dimension	3400X1580X1700mm
Net Weight	1000Kg
Gross Weight	1300Kg

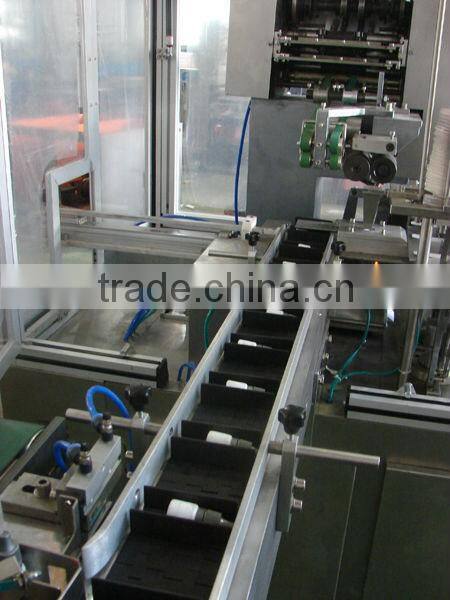

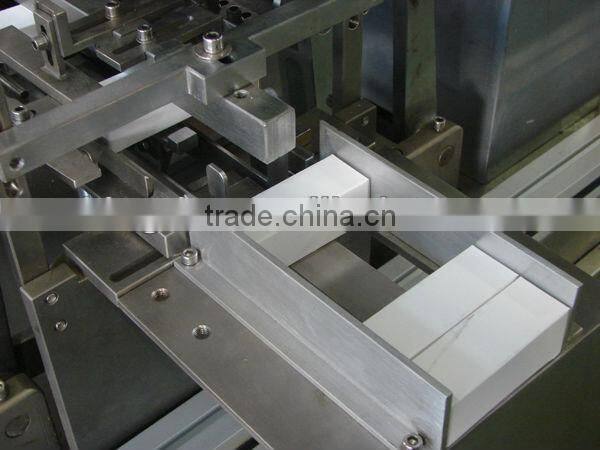

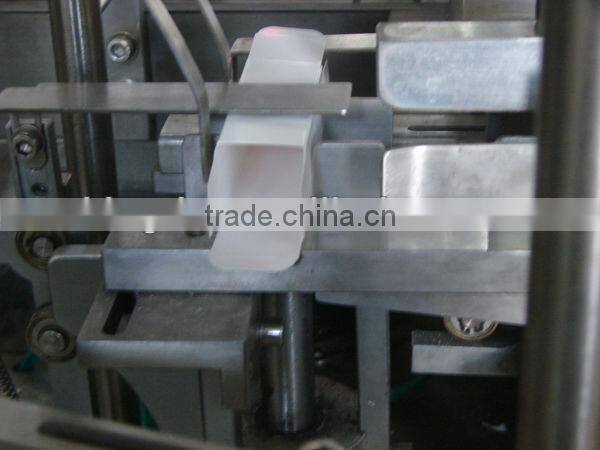

Some Parts of this Machine:

Samples :
