Specifications
5050smd 5V 5m/roll flexible rgb lpd 8806 led strip with EXW price1.48led&24IC/m LPD8806
2.DC5V,11.52W
3.CE,RoHS
4.white PCB
5050SMD 5V SM/ROLL FLEXIBLE RGB LPD 8806
LED STRIP WITH EXW PRICE
Characteristics:
| P/N | SJ-10048-8806 |
| Size/mm | 1000*15 |
| LED | 5050RGB |
| IC Qty/m | LPD8806/24 |
| Luminous(mcd) | R:38400 G:81600 B:43200 |
| Angle | 140 |
| Voltage | DC5V |
Wattage/m | 11.52(max) |
| IP Rate | IP20/65 |
| Warranty | 2 years |
| Certification | CE, RoHS |
| Packing | 5meter/roll, also can be customized |
Technical specs (newer LPD8806 type):
- 16mm (0.6") wide, 4mm (0.16") thick
- 48 LEDs per meter
- Removable IP65 weatherproof casing
- Maximum 5V @ 120mA draw per 2.5" strip segment (all LEDs on full brightness)
- 5VDC power requirement (do not exceed 6VDC) - no polarity protection
- 2 common-anode RGB LEDs per segment, individually controllable
- LED wavelengths: 630nm/530nm/475nm
- Connector: 4-pin JST SM
PICTURES:

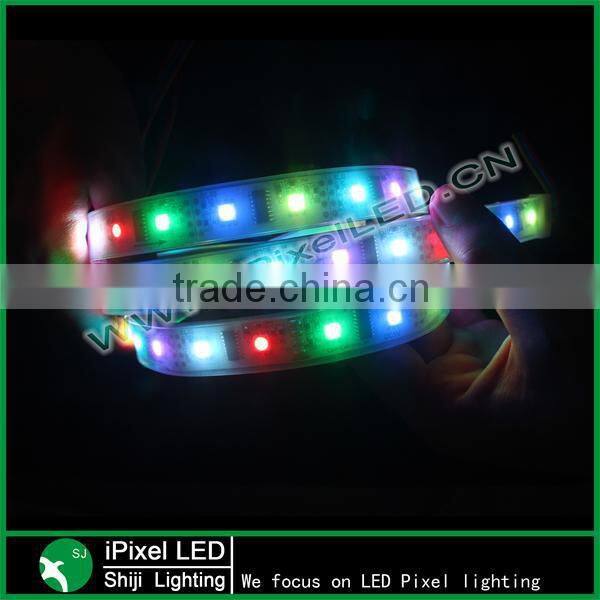

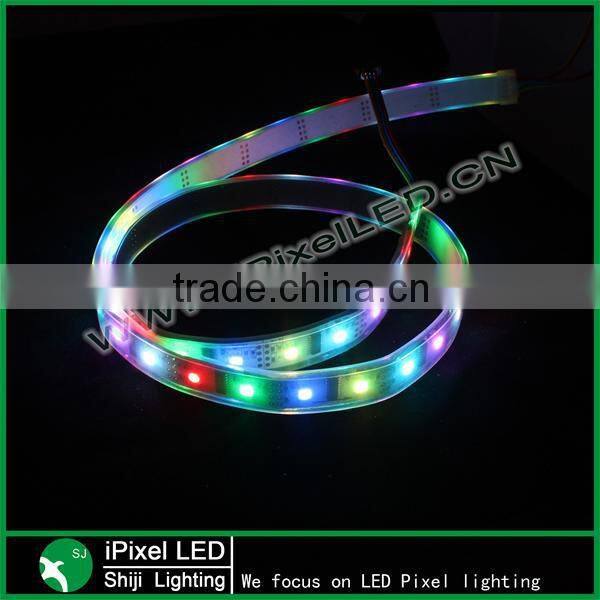

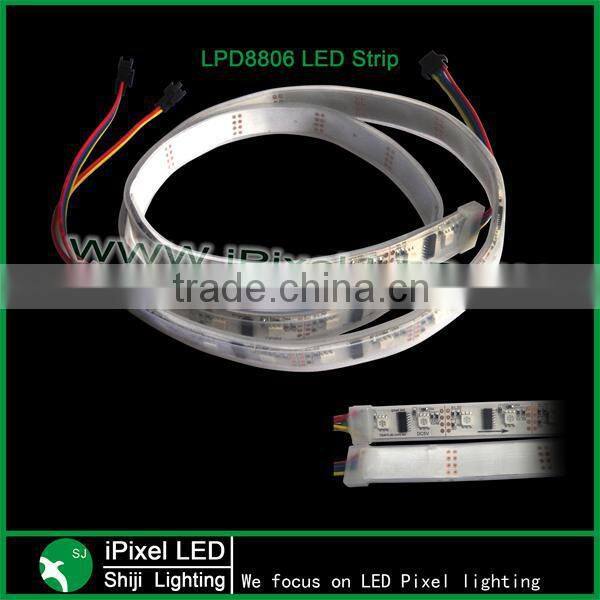

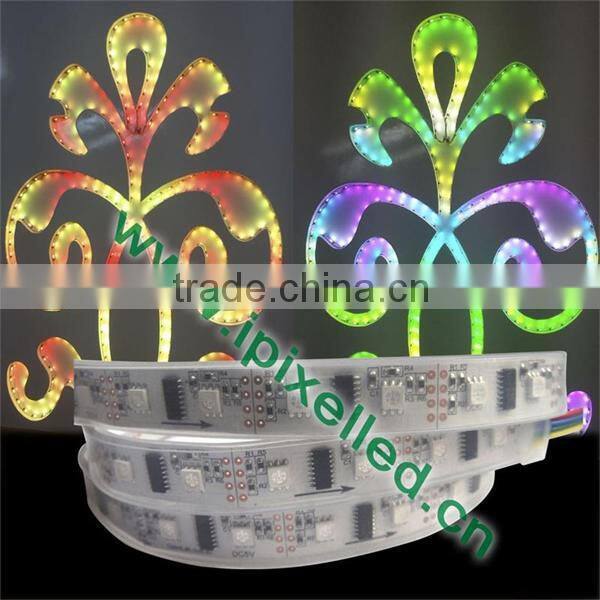

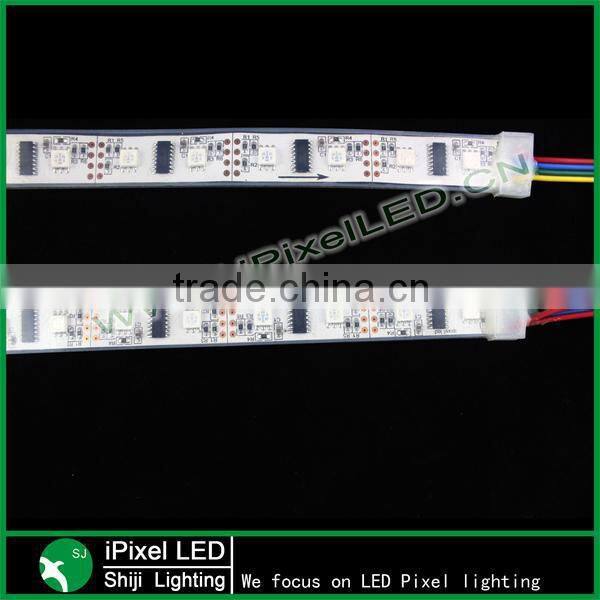

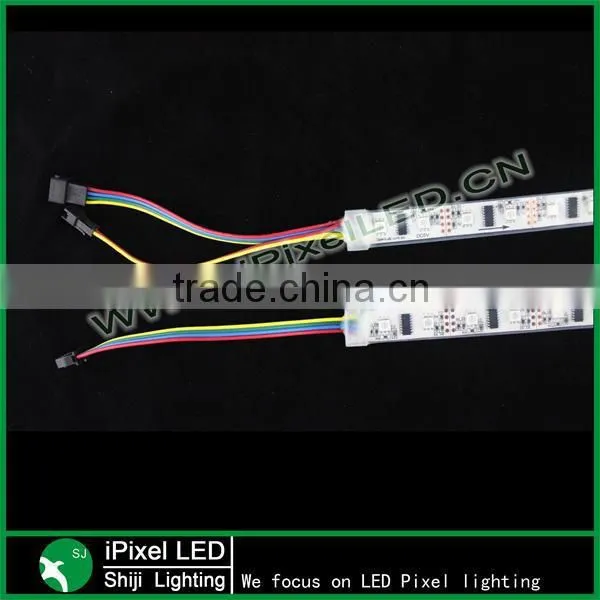

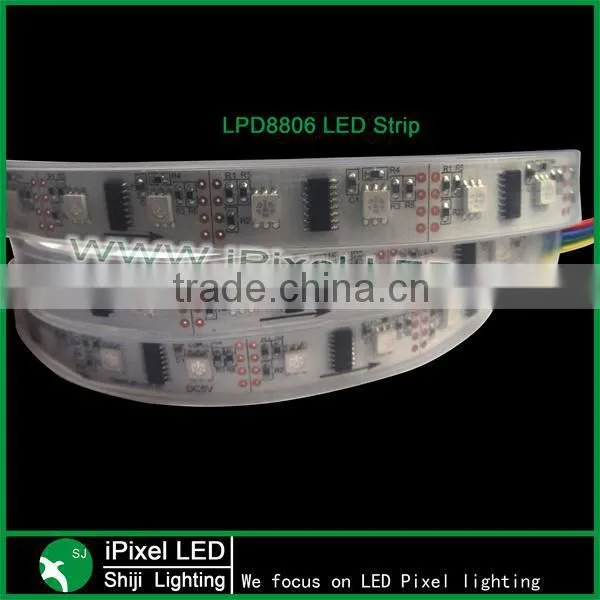

LPD8806 IC chip, 1IC controlled 2 led chip, with 4pin connector.

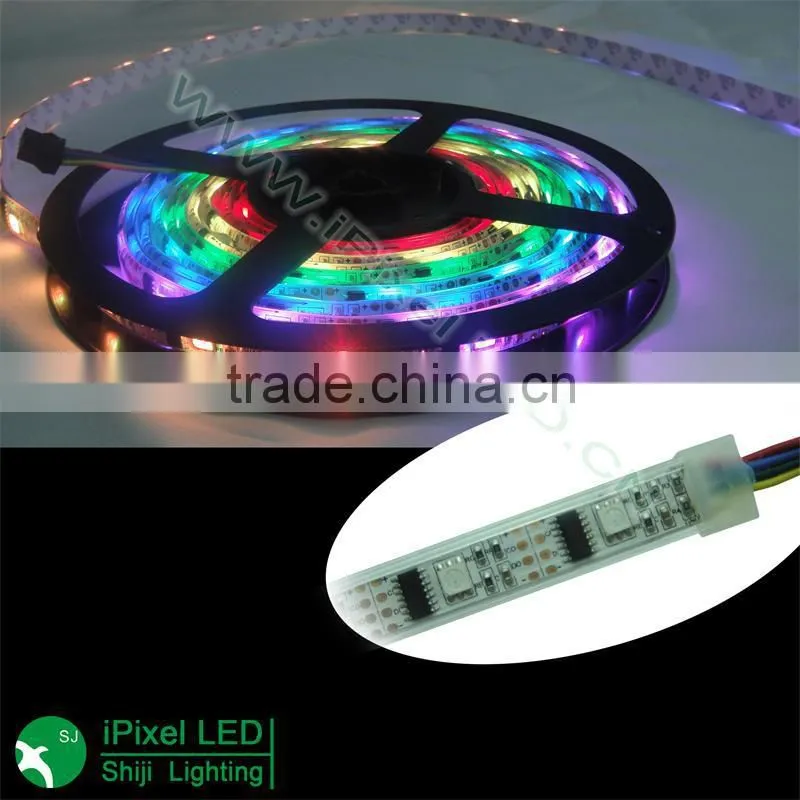

It can be non-waterproof and waterproof(silicon tube).

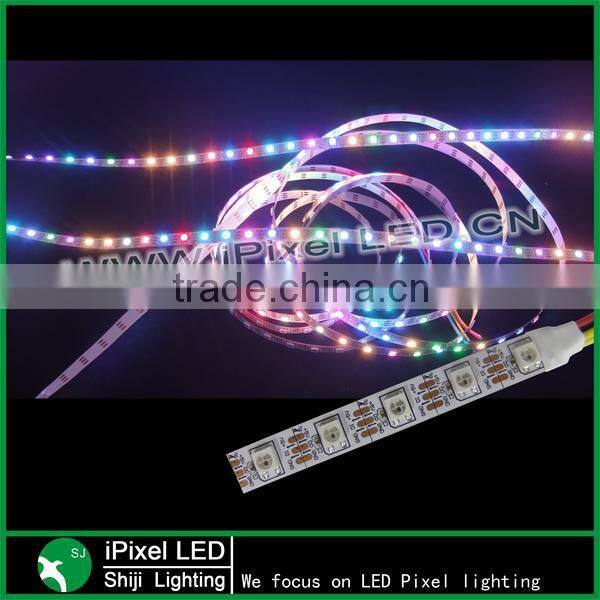

other led strip series:
ws1212B 60leds/m & 60IC/m
ws2801 32leds/m & 32IC/m

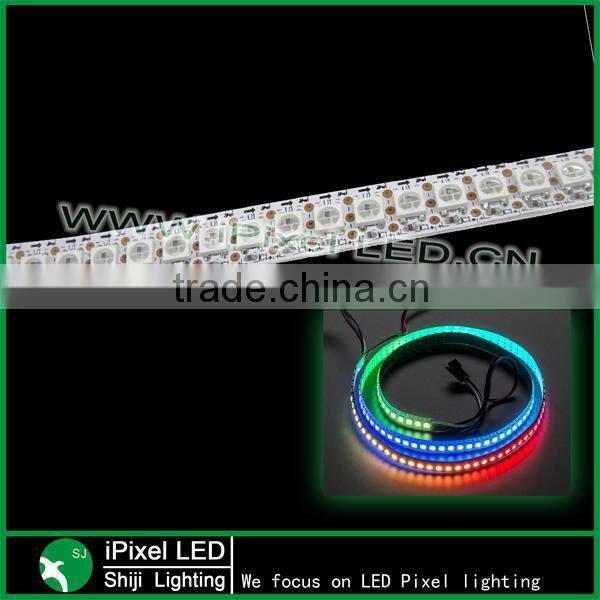

ws2812B 144leds/m & 144IC/m
Features:
The LPD8806 chip has built in 1.2 MHz high speed 7-bit PWM for each channel - that means it can do 21-bit color per LED (way more than the eye can easily discern). Once you set the brightness level for the LEDs, your microcontroller can go off and do other things, no need to continuously update it, or clock it.
The strip is made of flexible PCB material, and comes with a weatherproof sheathing. You can cut this stuff pretty easily with wire cutters, there are cut-lines every 1.6"/ 41mm (2 LEDs each). Solder to the 0.1" copper pads and you're good to go. Of course, you can also connect strips together to make them longer, just watch how much current you need! We have a 5V/2A supply that should be able to drive 1 or more meters (depending on use), a 5V 4A for a couple meters, and a 5V/10A supply that can drive 5+ meters (or more, if you are not lighting up all the LEDs at once) You must use a 5V DC power supply to power these strips, do not use higher than 6V or you will destroy the entire strip
PACKAGE:
used anti-static package ,5m/roll, 50rolls/carton,
carton size : 46.5*26*46CM, total weight :13KG
Certification:
OUR COMPANY:
ShenZhen Shiji Lighting Co.,Ltd established high-tech firm specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We're especially well-placed in the field of sign lighting solutions and interior lighting We're Located in ShenZhen south of China, near ShenZhen Airport and HK with convenient transportation Our product range is as follows:
1.5050&3528 LED module Backlight for Channel Letters & signage
2. RGB LED pixel light & LED string light
3. LED flexible strips & LED rigid bar for Decorative Lighting
4. High Power LED spot light
5.LED flood light
6.LED ceiling light
Clients are welcome to buy our standard products, or send us OEM requests. You will be impressed by our quality and service.
If any question,please feel free to contact us.Thank you.
