Black Pcb DMX Digital Addressable Rgb Led Light Rigid Bar

Specifications

black pcb DMX digital addressable rgb led light rigid bar

QUICK DETAILS:

SPECIFICATION:

1-Standard DMX512 Control LED line, powered by high bightness Epistar LED chip

2-The aluminum case very strong in 27mm width, 48mm high, in silver color

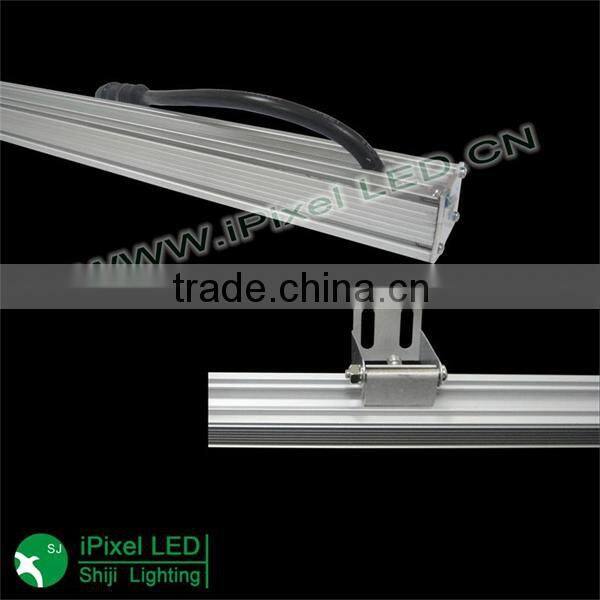

3-Every bar included 2pcs move-able aluminum Holder, but you have to prepare screw by self when installation

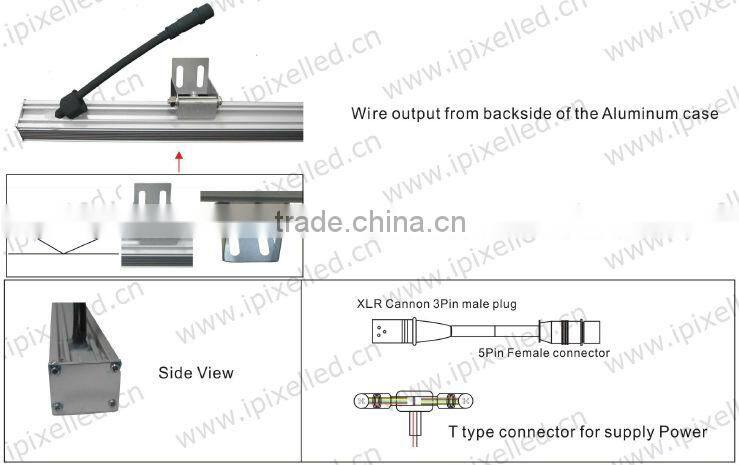

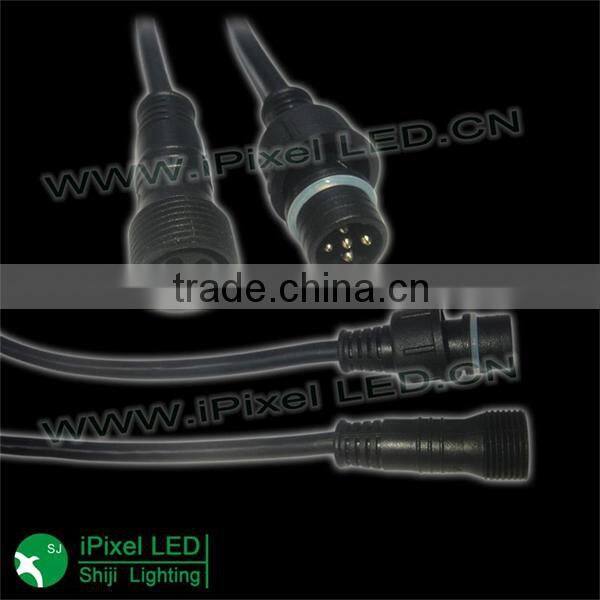

4-there are 2pcs waterproof connector output from back side of the case, make it possible to do no-slot joint

5-PCB width:20mm, in black color, it's cuttable every pixel 12.5cm length

6-This DMX bar not auto-addressable, you have to write the DMX address by the writer we provided

7-Protrol by standard DMX512 controller/Artnet

8- waterproof DMX rgb led rigid bar for outdoor building decoration

PICTURES:

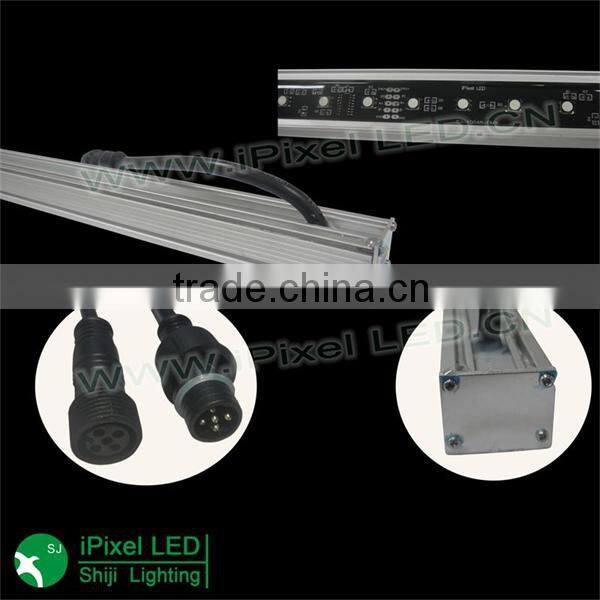

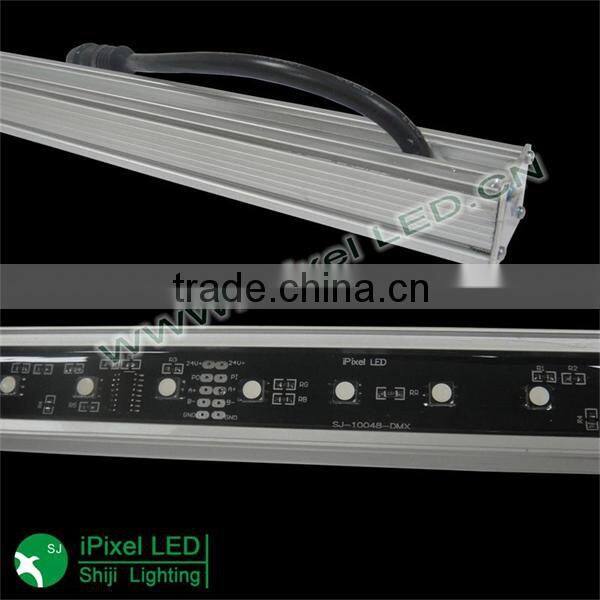

different angle:

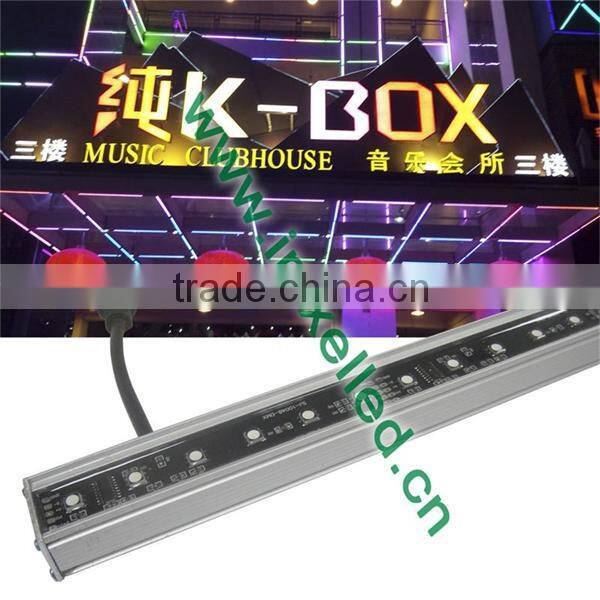

Application picture of black pcb DMX digital addressable rgb led light rigid bar

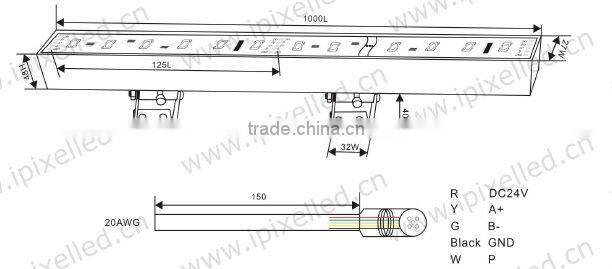

OUTLINE DIMENSION:

COLOR:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as led display screen to show image and video
