High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years

Shenzhen Shiji Lighting Co., Ltd.
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years thumbnail-1
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years thumbnail-2
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years thumbnail-3
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years thumbnail-4
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years thumbnail-5
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years thumbnail-6
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years photo-1
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years photo-2
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years photo-3
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years photo-4
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years photo-5
High Brightness 24V Rgb Aluminum Housing Led Light Bar Warranty 2 Years photo-6
US$ 10 - 20 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050 SMD LEDs
Type:
LED Bar Lights
Input Voltage(V):
DC24V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050 SMD LEDs
Type LED Bar Lights
Input Voltage(V) DC24V
Lamp Power 12W(Max)
Working Temperature(℃) -40, 40
Working Lifetime(Hour) 50000.00
Lamp Body Material Aluminum
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name SJ/iPixle
Model Number SJ-10048-RGB

Specifications

high brightness 24V rgb aluminum housing led light bar warranty 2 years
1.RGB
2.48leds/m
4.White PCB
3.CE, RoHS

HIGH BRIGTNESS 24V RGB ALUMINUM HOUSING LED LIGHT BAR WARRANTY 2 YEARS





QUICK DETAILS:



Product name

RGB led rigid bar light

Model no.

SJ-10048-RGB

Input voltage

DC24V

Power consumption

12W(Max)/M

Led type

Epistar SMD 5050 RGB LED chip

Color

RGB

LED Qty

48 pcs

Pixel pitch

25mm

PCB color

White

Size

standard size 100cm per pcs or any size (cut-able each 6 LED)

Dimension

L1000mm*W27mm*H48mm

Lifespan

50000Hrs

Material

Aluminum alloy

Connector wires

waterproof connector with 4Pin wire 20AWG ,wire length support customs

Beam angle

140degree

IP degree

Waterproof with clear epoxy-IP67, Aluminum case

Certificate

CE & RoHS

Brand name

SJ/ iPixel

Control system

 Protrol by Standard RGB controller or DMX controller+PWM Decoder





PICTURES:

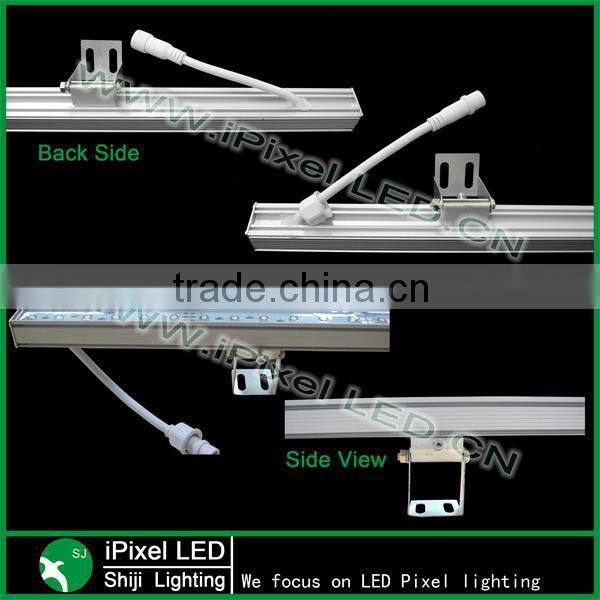

Wire output from backside of the Aluminum case

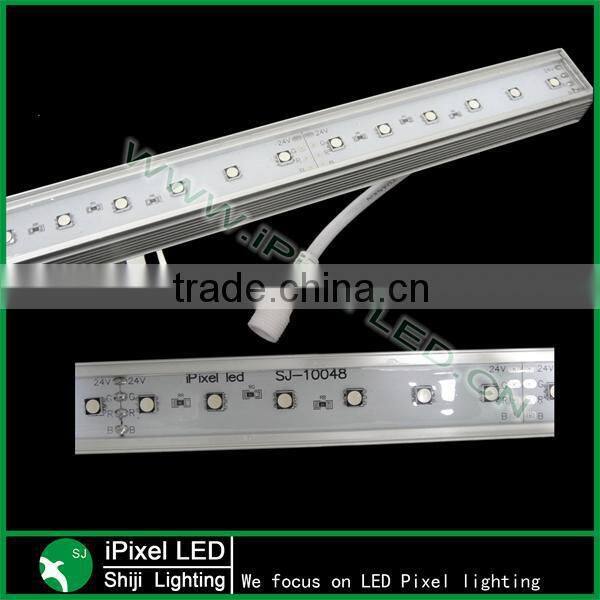

waterproof with clear epoxy-IP67,Aluminum case

high brightness 24V rgb aluminum housing led light bar warranty 2 years

high brightness 24V rgb aluminum housing led light bar warranty 2 years

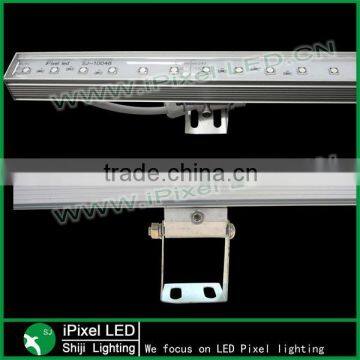

Aluminum Holder,View Angle changeable

4Pin waterproof connector--female and male

high brightness 24V rgb aluminum housing led light bar warranty 2 years

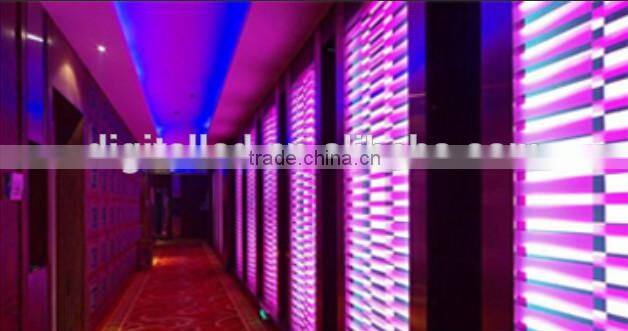

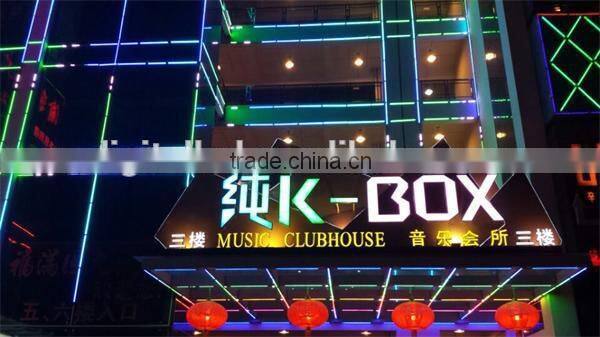

Application pictures:



high brightness 24V rgb aluminum housing led light bar warranty 2 years



high brightness 24V rgb aluminum housing led light bar warranty 2 years

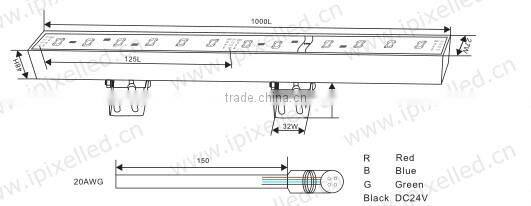

Demension:



high brightness 24V rgb aluminum housing led light bar warranty 2 years













Packaging & Shipping:

1m/pcs, 40m in one carton box

Shipping by DHL, UPS, FedEX, about 2-7 days.



Services:
1.Reply your inquiry in 24 hours.
2.Experienced staffs answer all your questions in fluent English
3.Exlusive and unique solution can be provided to our customer by well trained

and professional technicians

4.Costomized design is available. OEM&ODM are welcome
5.Special discount and protection of sales area provided to our distributor

6.Goods will be delivered within 3-5 working days after the payment received

7.We ship item via Door to Door service express or air and sea




Our company:


 ShenZhen Shiji Lighting Co.,Ltd established high-tech firm specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We're especially well-placed in the field of  sign lighting solutions and interior lighting We're Located in ShenZhen south of China, near  ShenZhen Airport and HK with convenient transportation Our product range is as follows:
1.5050&3528 LED module Backlight for Channel Letters & signage
2. RGB LED pixel light & LED string light
3. LED flexible strips & LED rigid bar for Decorative Lighting
4. High Power LED spot light
5.LED flood light
6.LED ceiling light
Clients are welcome to buy our standard products, or send us OEM requests. You will be impressed by our quality and service.

high brightness 24V rgb aluminum housing led light bar warranty 2 years

high brightness 24V rgb aluminum housing led light bar warranty 2 years



high brightness 24V rgb aluminum housing led light bar warranty 2 years



If any question,please feel free to contact us.Thank you.
