Artnet Controlled 3D DMX LED Meteor Light Dc12v 64leds/m

Shenzhen Shiji Lighting Co., Ltd.
Artnet Controlled 3D DMX LED Meteor Light Dc12v 64leds/m thumbnail-1
Artnet Controlled 3D DMX LED Meteor Light Dc12v 64leds/m thumbnail-2
Artnet Controlled 3D DMX LED Meteor Light Dc12v 64leds/m photo-1
Artnet Controlled 3D DMX LED Meteor Light Dc12v 64leds/m photo-2
US$ 10 - 30 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050 SMD LEDs
Type:
LED Bar Lights
Input Voltage(V):
DC24V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050 SMD LEDs
Type LED Bar Lights
Input Voltage(V) DC24V
Lamp Power 12W(Max)
Working Temperature(℃) -40, 60
Working Lifetime(Hour) 50000.00
Lamp Body Material Copper
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SJ/iPixel LED
Model Number SJ-10064-DMX

artnet controlled 3D DMX LED meteor light dc12v 64leds/m



QUICK DETAILS:



Product name

 artnet controlled 3D DMX LED meteor light dc12v 64leds/m

Model no.

SJ-10064-DMX

Input voltage

DC12V

Power consumption

15.36W

Led type

SMD 5050 led lamp

Pixel

16 pixels per pcs

LED Qty

64 pcs per pcs

Pixel pitch

30mm

Grayscale

256

Emitting color

full color, pixel, digital, magic, dream color, changeable.

Dimension

30*1000mm

Lifespan

50000Hrs

Material

pvc cover

Working temperature

-40 - 60degree centigrade

Beam angle

360degree

IP degree

IP65

Certificate

CE & RoHS

Brand name

SJ/ iPixel LED

Control system

DMX console, Madrix, DMX controller, Artnet





SPECIFICATION:



Features:



1. Working with DMX512 protocol directly, stable working performance and changing smoothly.

2. Built-in regulator circuit, can better to protect the IC and extend the using time.

3. Wonderful performance operated by Madrix software

4. Double-sided light effects can be seen from 360 degree, Transparent tube make the light much clear and pure.

5. Environment friendly, no harsh glare and buzzing noise, no flicker.

6. Parallel DMX signal , avoiding all lights influenced by the failure of one light in serial connection.

7. Waterproof, energy-saving, low-cost of maintenance, and long life span.

8. Length: 0.5M, 1M, 1.5M,2M or customized

9. It is very cool for nighclub, KTV,Disco decoration.



 Parameters:



SJ-10032-DMX SJ-10064-DMXSJ-10096-DMXSJ-100128-DMX
Products name3D DMX LED Vertical Tube Light
Hosing Size D30*L500mmD30*L1000m D30*L1500mmD30*L2000mm
Housing material Transparent PC
LEDRGB SMD5050
LED QTY32PCS64PCS96PCS128PCS
Pixel8pixel16pixel24pixel32pixel
Beam Angle360 degree
Input Voltage DC12V
Max Power8W16W24W32W
ProtocolDMX512
Control ModeDMX/DVI/ARTNET
Adress SettingManully
Universe20 tube one DMX universe 10tube one DMX universe7 tube one DMX universe 5 tube one DMX universe
ProtectionIP65/20IP65/20IP65/20IP65/20
Operting Temperature-20°C--+60°C
Storage Temperature

-40°C--+60°C

Weight0.122kg/pcs  0.244kg/pcs 0.345kg/pcs 0.467kg/pc







































































Instruction:



1. archway .,canopy,  ad words,  ultra-thin light boxes, light words ,luminescent signboard backlights
2. buildings bridges ,signboards and other decorative outline
3. hight -end  stores .shopingmalls .home and other indoor lighting
4. cars, corridor, staricase, furniture,show windows.nd other decorative  outline
5. bars .ktv ,cafes stages and other entertainning places  atmosphere rendering
6. salons,handicrafts and other high-end  counter lighting
7. amusement park thearter &aircarft  cabin mood lighting
8. emergency hallway lighting ,auditorium walkway lighting ,stairway exit lighting ,concealed lighting
6. Amazing color effects, support online/offline control, Madrix supported
7. Control IC included, supporting numerous ,color-change effects,programmable by LEDEdit software
8. Easy installation, high brightness, safe and energy conservation, long lifespan,Low brightness declines.Widely used in building profile, Street lighting,stage view,outside Ads screen, entertainment and so on for decoration and lighting.
9. Pure fiber material Rigid PCB, 12V low voltage input



Note:



1. Indoor and oudoor using
2. Turn off the power before installment, don't touch the surface of the lights when light on
3. Please make sure using in the normal environment
4. To avoid using nearby the hot or heat source place,where has the corrosive gas.
5. Make sure the installment place could afford 10 times of the weight of light.
6. Installed position must be no shock, no fire hidden danger
7. Do not touch or/and knock the product body during working



Trade Term



1. Payment: T/T ,   (Western Union  is welcomed)
2. Production lead time  for 100~500pcs: 5-7days, 500~1000pcs:7-15days
3. Sample can be delivered in 3days
4. By Express(EMS, DHL, UPS etc), By Air or By SeaShipping freight are quoted under your requests
5. Shipping port: Shenzhen/Guangzhou, Mainland China

6. Logo:  According to your requirement
7. Discounts are offered based on order quantities
8. MOQ:5pcs, Welcome sample order



Delivery time: 1-3days for samples order, 5-7days for big order over 500pcs



CE & RoHs certificates:




artnet controlled 3D DMX LED meteor light dc12v 64leds/m





COLOR:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as led display screen to show image and video

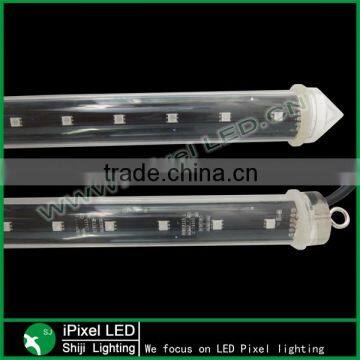

PICTURES:

artnet controlled 3D DMX LED meteor light dc12v 64leds/martnet controlled 3D DMX LED meteor light dc12v 64leds/martnet controlled 3D DMX LED meteor light dc12v 64leds/m

5 Pin Connectors for 3D led vertical tube lights:

artnet controlled 3D DMX LED meteor light dc12v 64leds/m

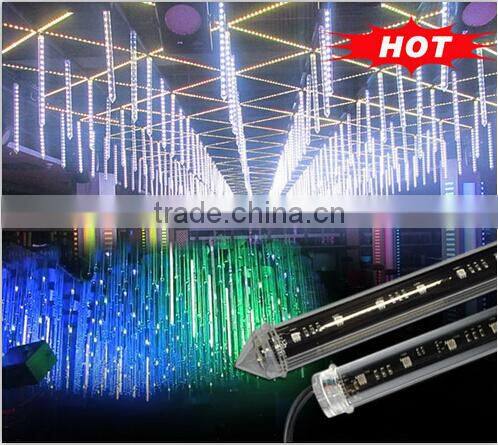

Application picture:

artnet controlled 3D DMX LED meteor light dc12v 64leds/m



Our company:

 ShenZhen Shiji Lighting Co.,Ltd established high-tech firm specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We're especially well-placed in the field of  sign lighting solutions and interior lighting We're Located in ShenZhen south of China, near  ShenZhen Airport and HK with convenient transportation Our product range is as follows:
1.5050&3528 LED module Backlight for Channel Letters & signage
2. RGB LED pixel light & LED string light
3. LED flexible strips & LED rigid bar for Decorative Lighting
4. High Power LED spot light
5.LED flood light
6.DMX LED lights


Clients are welcome to buy our standard products, or send us OEM requests. You will be impressed by our quality and service.

artnet controlled 3D DMX LED meteor light dc12v 64leds/m



artnet controlled 3D DMX LED meteor light dc12v 64leds/m



If any question,please feel free to contact us.Thank you.
