Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > Artnet Control Madrix 48leds 8 Pixels Dmx512 ic Led Rigid Bar Tube 1m/pcs Magic Color

Artnet Control Madrix 48leds 8 Pixels Dmx512 ic Led Rigid Bar Tube 1m/pcs Magic Color

Artnet Control Madrix 48leds 8 Pixels Dmx512 ic Led Rigid Bar Tube 1m/pcs Magic Color thumbnail-1
Artnet Control Madrix 48leds 8 Pixels Dmx512 ic Led Rigid Bar Tube 1m/pcs Magic Color thumbnail-2
Artnet Control Madrix 48leds 8 Pixels Dmx512 ic Led Rigid Bar Tube 1m/pcs Magic Color thumbnail-3
Artnet Control Madrix 48leds 8 Pixels Dmx512 ic Led Rigid Bar Tube 1m/pcs Magic Color photo-1
Artnet Control Madrix 48leds 8 Pixels Dmx512 ic Led Rigid Bar Tube 1m/pcs Magic Color photo-2
Artnet Control Madrix 48leds 8 Pixels Dmx512 ic Led Rigid Bar Tube 1m/pcs Magic Color photo-3
US$ 15 - 30 MOQ: 10 Meters
Key Specifications
Get Latest Price
LED Light Source:
epistar smd5050
Type:
LED Bar Lights
Input Voltage(V):
12V / 24V
Contact Supplier Request Quote Chat Now
Shenzhen Shiji Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source epistar smd5050
Type LED Bar Lights
Input Voltage(V) 12V / 24V
Lamp Power 11.52
Color Temperature(CCT) pixel
Working Temperature(℃) -30, 50
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SJ / Ipixel
Model Number SJ-10048-DMX / SJ-DMX-100

artnet control madrix 48leds 8 pixels dmx512 ic led rigid bar tube 1m/pcs magic color



Product Description



Description:

1.48LEDs/M, 8pcs dmx512 IC/M, dmx512 control led rigid bar.

2.3 chips SMD5050 RGB adapt as light source

3.IP65, IP66, IP67, IP68 Waterproof

4. DMX512 IC, 8pixels per meter (1IC control 6LEDs).

5.Aluminum case waterproof,

6.Compact size,

7.Aboundant color modes, up to thousands of color change modes can be put in the programs,

8.Work with LED DMX control system could get Jumping, fading, flashing, dimming mode,

9.Users can cut every 1 pixels, Continuous light connection, It can run 5 meters continuously

10.8pixels dmx512 ic black pcb aluminum housing led rigid light bar.



Features:

1.Good heat dissipation and high waterproof degree can be used to outdoors.

2.LED bars can be put row by row to build a screen to broadcast pictures, text and video.

3.High pixel, high brightness, and fast conversion speed.

4.Wired or wireless connected to controller or DMX console, to complete various effects.



Datasheet:



Product name

48LEDs 8Pixels DMX pixel LED Rigid Bar

Model no.

SJ-10048-DMX / SJ-DMX-100

Input voltage

DC12V/ 24V

Power consumption

11.52W

Led type

epistar SMD 5050 led lamp

Pixel

8pcs dmx512 IC pixels per meter

LED Qty

48 pcs smd5050 led per meter

Pixel pitch

12.5mm

Grayscale

256

Emitting color

full color, pixel, digital, magic, dream color, changeable.

Dimension

27*1000mm

Lifespan

50000Hrs

Material

Aluminum alloy, copper PCB

Working temperature

-40 - 60degree centigrade

Beam angle

140degree

IP degree

IP65, IP66, IP67, IP68

Certificate

CE & RoHS

Brand name

SJ/ iPixel

Control system

DMX console, Madrix, DMX controller, Artnet





APPLICATION:

lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.
They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.



Picture details:

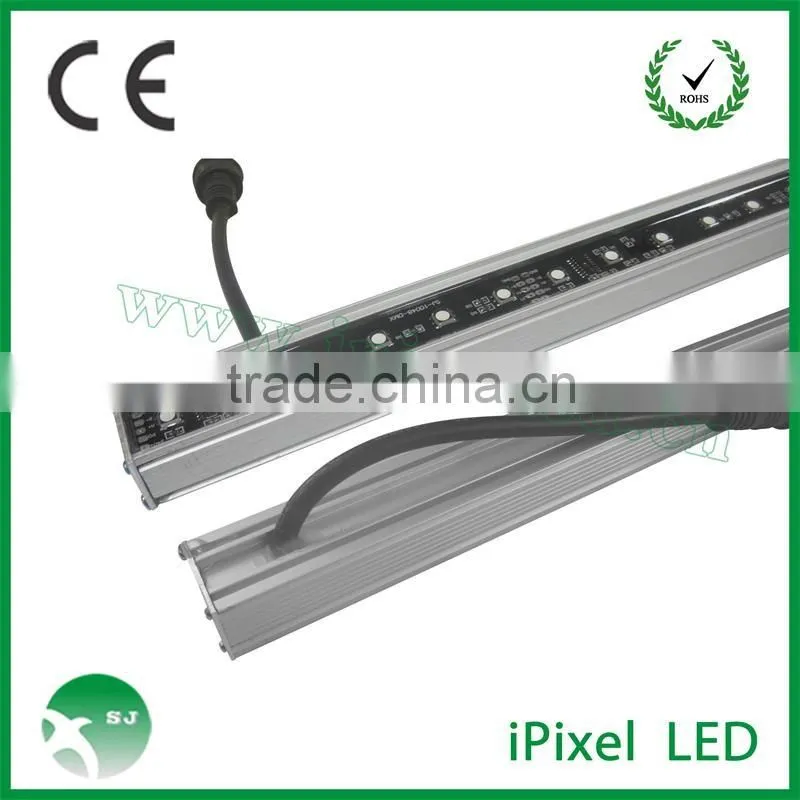

artnet control madrix 48leds 8 pixels dmx512 ic led rigid bar tube 1m/pcs magic color

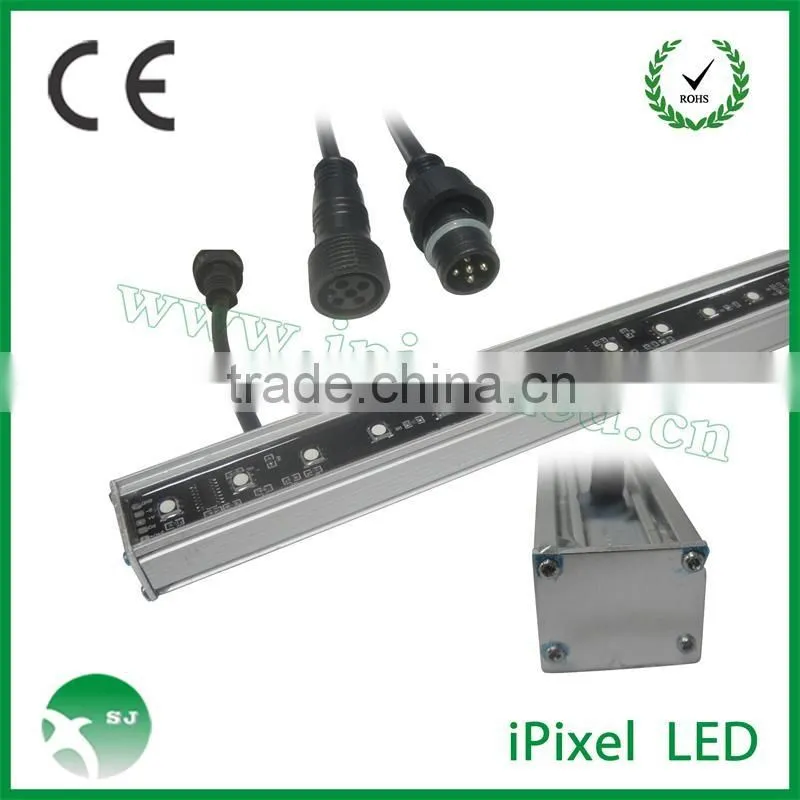

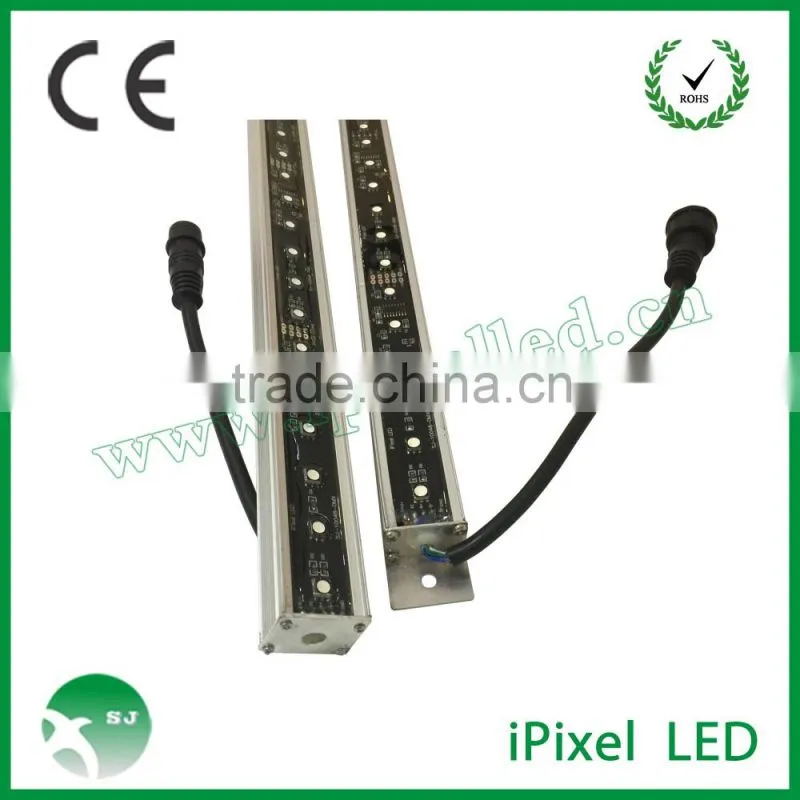

Aluminum case and black PCB, wires comes out from back. waterproof IP65,IP66,IP67.

artnet control madrix 48leds 8 pixels dmx512 ic led rigid bar tube 1m/pcs magic colorartnet control madrix 48leds 8 pixels dmx512 ic led rigid bar tube 1m/pcs magic colorartnet control madrix 48leds 8 pixels dmx512 ic led rigid bar tube 1m/pcs magic color

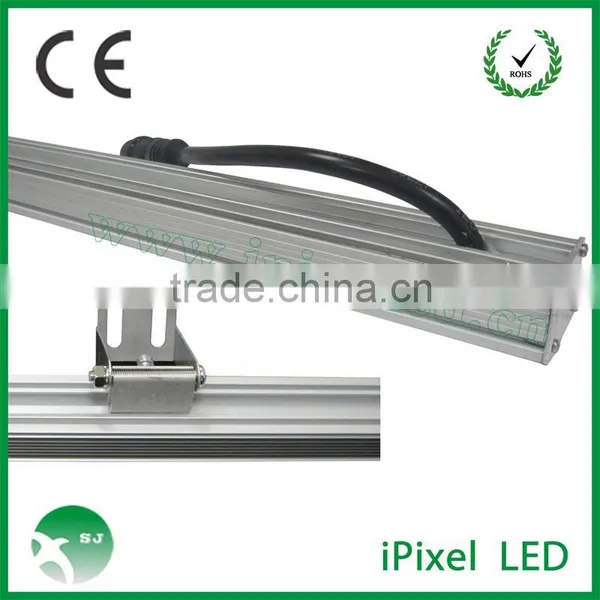

Install and mounting: 2 male and female 5pin waterproof connector on each end side,

use a T-connector to connect bars, and the metal holder for mounting onto the wall.



Control and effect:  DMX controller & decoder & SD controller & arduino controller,

Each led change color individually and pixel addressable full color.

The DMX bar Also need a coder writer like T-1000D or T-8000D to address the pixels.



Application: Architectural decorative lighting, canopy and bridge edge lighting.



Our Services

 Services:

1.Reply your inquiry in 24 hours

2.Experienced staffs answer all your questions in fluent English

3.Customized design is available.OEM&ODM are welcomed

4.Exclusive and unique solution can provide to customer by our well trained and professional technicians

5.Special discount and protection of sales area provided to our distributor



Shipment:

1.Goods will be delivered within 3-5 working days after the payment received

2.We ship item via DHL, Fedex,UPS,Door to Door service express or air and sea.

 artnet control madrix 48leds 8 pixels dmx512 ic led rigid bar tube 1m/pcs magic color

Warranty:



1. All products we sell are in good quality and have been tested before they are shipped out

2. We offer 2 years Warranty



Certification :CE&Rohs

artnet control madrix 48leds 8 pixels dmx512 ic led rigid bar tube 1m/pcs magic color

Company Information

ShenZhen Shiji Lighting Co.,Ltd established high-tech firm specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We're especially well-placed in the field of  sign lighting solutions and interior lighting We're Located in ShenZhen south of China, near  ShenZhen Airport and HK with convenient transportation Our product range is as follows:

1.5050&3528 LED module Backlight for Channel Letters & signage
2. RGB LED pixel light & LED string light
3. LED flexible strips & LED rigid bar for Decorative Lighting
4. High Power LED spot light
5.LED flood light
6.LED ceiling light
Clients are welcome to buy our standard products, or send us OEM requests. You will be impressed by our quality and service.

artnet control madrix 48leds 8 pixels dmx512 ic led rigid bar tube 1m/pcs magic colorartnet control madrix 48leds 8 pixels dmx512 ic led rigid bar tube 1m/pcs magic colorartnet control madrix 48leds 8 pixels dmx512 ic led rigid bar tube 1m/pcs magic color





If any question,please feel free to contact us.Thank you.

FAQ



Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Need about 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
