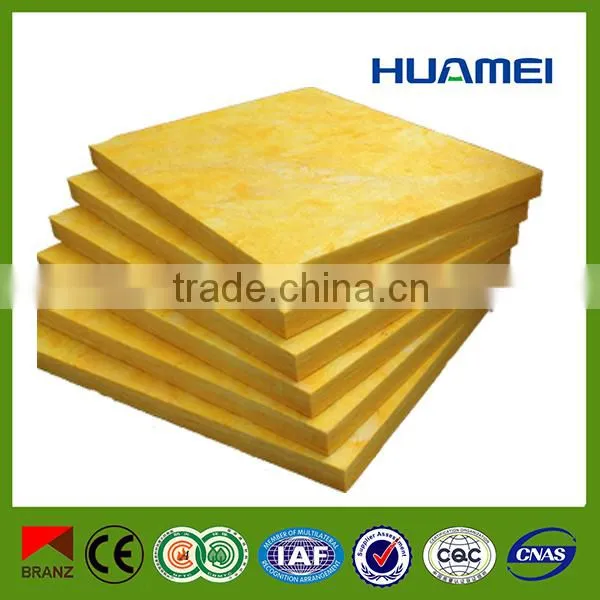

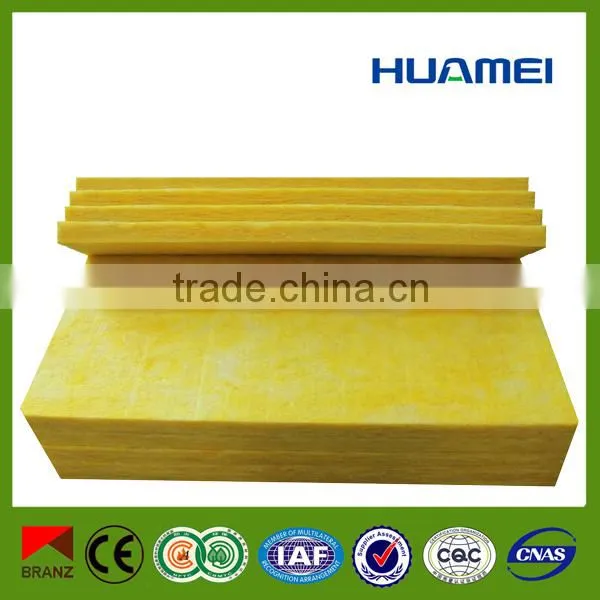

Glasswool vinyl faced fiberglass fireproof insulation board

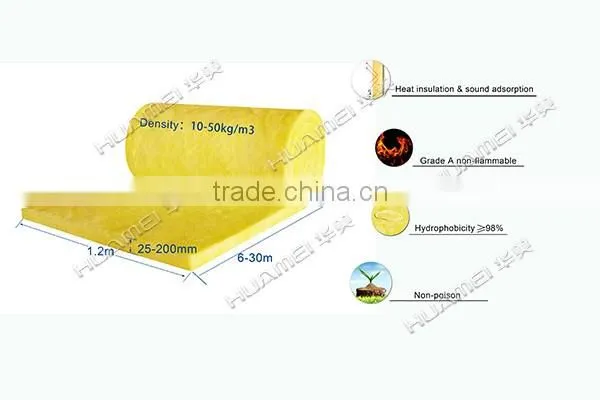

Main specification:
Product |
Length(mm) |
Width(Diameter)(mm) |
Thickness(mm) |
Density(kg/m3) |
Boards |
1200-2400 |
600-1200 |
20-100 |
24-96 |
Blanket |
11000,20000 |
1200 |
25-150 |
12,16,20,24,32,40,48 |
Batt |
1160-1200 |
410-610 |
100-200 |
10-48 |

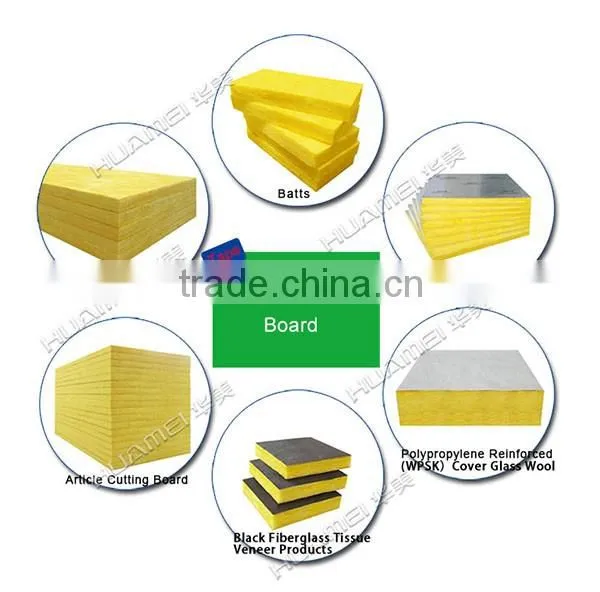

1. Different terms of Glass Wool Insulation
- plain glass wool blanket / glass wool board
- glass wool blanket /board with Aluminum foil -clad
- formaldehyde-free glass wool heat insulation
- glass wool with white pvc / glass wool board with black tisssue
- Colorful glass wool heat insulation

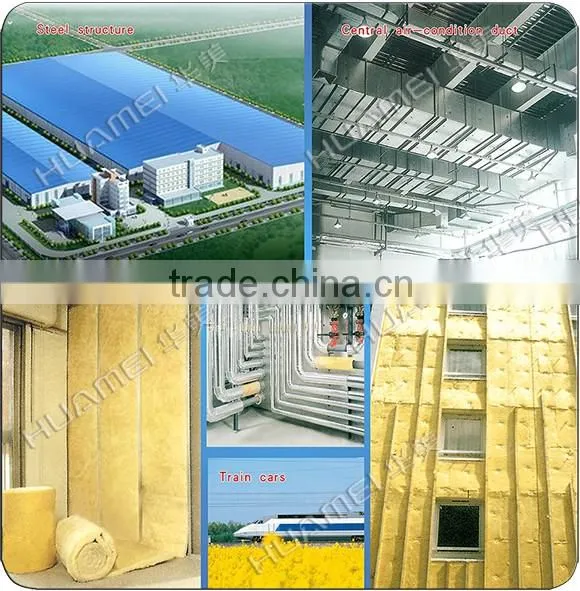

- glass wool was used for building materials , and steel structure insulation
- soundproof and fireproof used for wall and roof of house
- Heat preservation for steel structure building
- Heat Insulation for wall and roof of house to save energy
- For indoor partition wall , Train compartment .
Huamei Glass Wool Products is the Professional manufacturer in China . we also can make special production according to clients' specification with cheap glass wool price.
3.The Excellent propety of the glass wool board
glass wool roll/GLASSWOOL price
• Good Fire-proof performance
• Excellent Damp-proof property
• Excellent rebound property , When reaches the destination will rebound almoust to the original level in 24 hours after been unpacked .
• Low moisture absorption; stable physical properties.
• Sound absorption and noise reduction; it can effectively prevent sound from spreading.
• Non-poison , Easy for construction; cutting at will.
• Low moisture absorption; stable physical properties.
4. Technical Parameters
Vinyl faced fiberglass sound insulation/fireproof insulation board
Item |
Unit |
Index |
Standard |
Density |
Kg/m3 |
10-80 |
GB/T 5480.3 |
Average fiber dia |
μm |
5-8 |
GB/T 5480.4 |
Water content |
% |
≤1 |
GB/T 16400-2003 |
Grade of combustibility |
|
Non-combustible Grade A |
GB 8624-1997 |
Reshrinking temp |
℃ |
250-400 |
GB/T 11835-2007 |
Thermal conductibility |
W/m.k |
0.034-0.06 |
GB/T 10294 |
Hydrophobicity |
% |
≥98 |
GB/T 10299 |
Moisture rate |
% |
≤5 |
GB/T 5480.7 |
|
Sound absorption coefficient |
|
1.03 product reverberation method 24kg/m3 2000HZ |
GBJ 47-83 |
Slag inclusion content |
% |
≤0.3 |
GB/T 5480.5 |

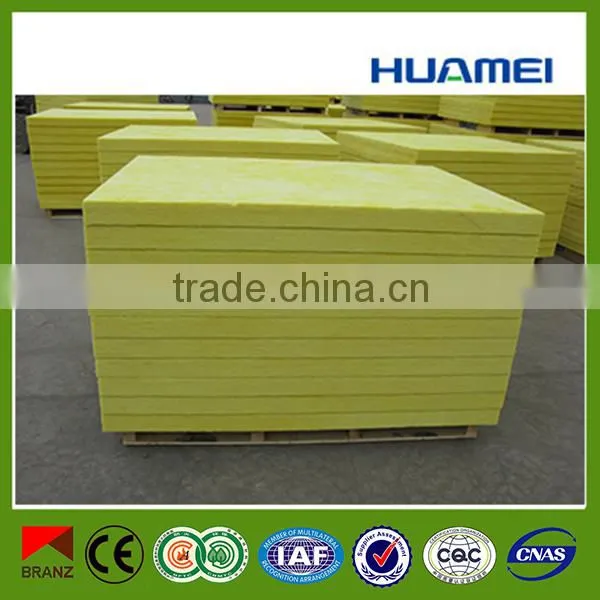

Fireproof and sound insulation glasswool board

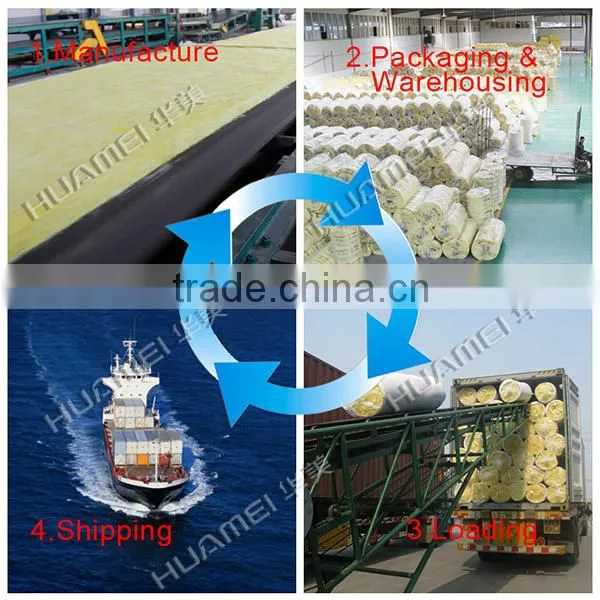

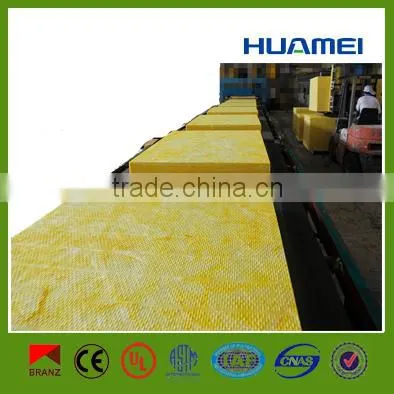

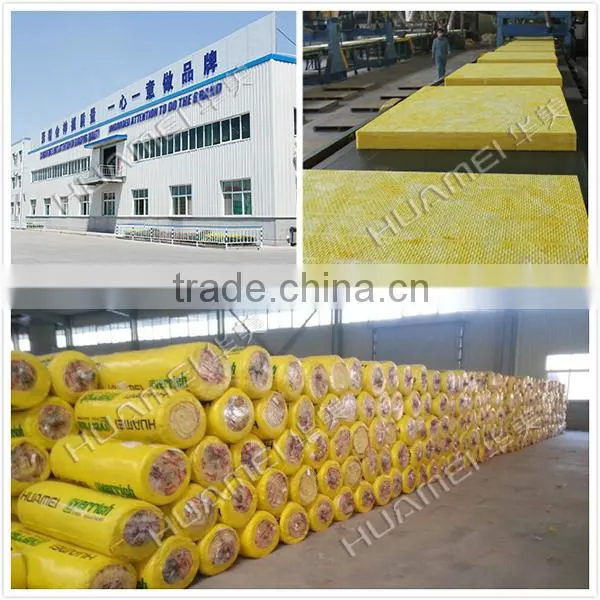

5. The Production Lines
Glass wool roll/GLASSWOOLfireproof insulation board

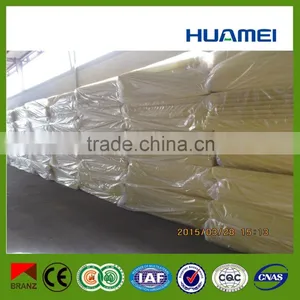

6. Glass Wool Packaging and Shipping
The glass wool board quantity package is as following :
Glass Wool Board Size |
Package PCS/Bag |
Package Bag/40HQ |
48kg/m3-25mm*1.2m*2.3m |
10 |
102 |
48kg/m3-50mm*1.2m*2.3m |
5 |
102 |
48kg/m3-25mm*1.2m*1.2m |
18 |
102 |
48kg/m3-50mm*1.2m*1.2m |
9 |
102 |
48kg/m3-25mm*0.6m*1.2m |
18 |
209 |
48kg/m3-50mm*0.6m*1.2m |
9 |
209 |
56kg/m3-50mm*1.18m*1.2m |
9 |
106 |
Payment Terms :
1. TT 2. L/C 3. west union4.others
Delivery Time :
About 5~7 days after confirmed the order .
7. Huamei Glass Wool has been inspected by Huamei's Professional Quality Inspectors.

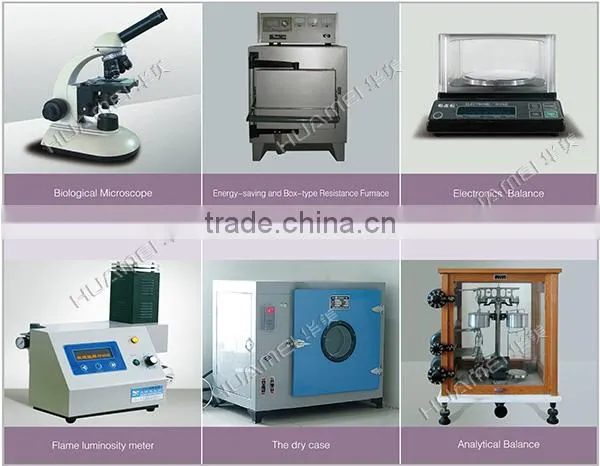

The laboratory
Fireproof insulation material/Glasswool insulation board
8. Huamei Glass Wool has obtain a lot of certifications .
glass wool insulation manufacturer have quality test on each process.
9. Our Services
10 . About Huamei Group
11 .Export Market Distribution
Any products you need, please contact us freely! We'll give you prompt reply !
Mobile: +86-18330252117 +86-316-5792999
Whatsapp: 008618330252117
Website:
Thank you so much !
