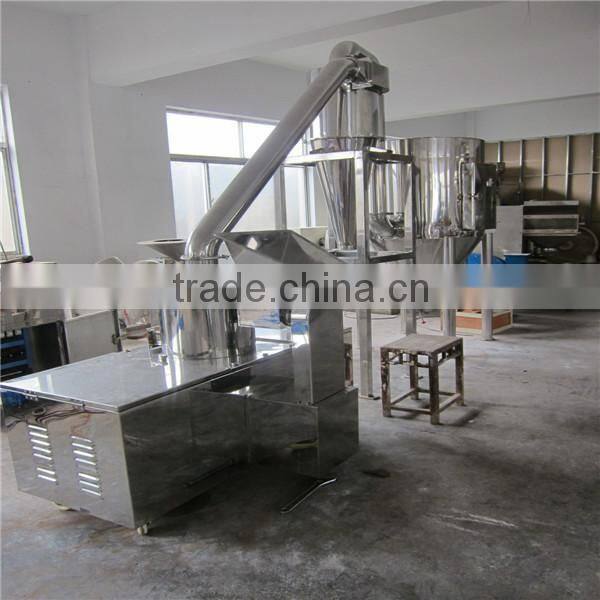

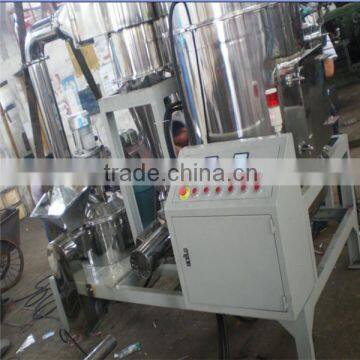

pulverizer machine for food
1 Main Application
The machine is composed of main machine,auxiliary machine and electrical box with the capabilities of winnowing,no screen or mesh compact design and reasonable structure.Due to the negative pressure sends heat out continuously in operation,the machine is also applied for the grinding of heat sensitive materials,the pulverizer is widely applied in industries such as chemical ,foodstuff,pharmacy,cosmetic,tincture resin and so on,ranking world advanced levels.
2 Working method:

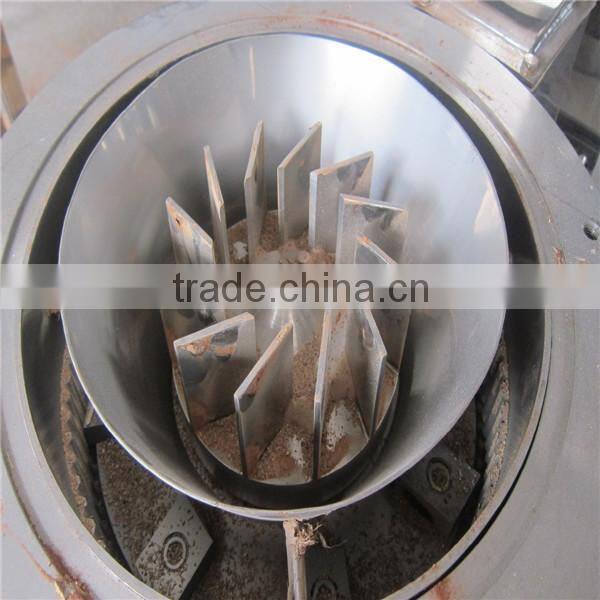

Raw material is delivered to the grinding chamber via hopper by spiral feeder,and is cut and sheared by the high speed cutters,then the materials moved into the whirlwind separator and sack dust catcher by the negative pressure via cloth bag of filter of dust is collected and recycled via cloth bag or filter of dust absorption box.There is no dust flying during production so as to improve the utilization and decrease the production cost.
3 Technical specifications:
| WFJ MICRONIZER | ||||||
| Type | Capacity | Feeding Material | discharge | Power | Speed | Weight |
| Unit | kg/h | mm | mm | kw | r/min | kg |
| WFJ-15 | 10-200 | ≤10 | 80-320 | 13.5 | 6000 | 850 |
| WFJ-20 | 20-300 | ≤12 | 80-320 | 17.5 | 4800 | 1250 |
| WFJ-30 | 30-800 | ≤10 | 60-320 | 46 | 3800 | 2800 |
| WFJ-60 | 50-1200 | ≤10 | 60-320 | 84.15 | 2800 | 4500 |
| WFJ-80 | 100-2000 | ≤15 | 60-320 | 145 | 2200 | 9500 |
| WFJ-110 | 200-3000 | ≤20 | 60-320 | 230 | 1480 | 16000 |
4 Machine Parts:
wooden packing
one year guarantee for whole machine
24 hours technical support by email
calling or door-to-door service
user manual and detailed video/CD
How to choose a right pulverizer ?
1)Pls tell me pulverizer material.
2)How many capacity per hour?
3)How many meshes will you choose ?if meshes is under 120 mesh,pls choose universal pulverizer,if meshes is above 120 meshes,it is good to choose WFJ micro pulverizer machine.
