Masking Tape Slitting Machine Packing Tape Slitting Machine
US$ 10,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Bags, Film
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BOPP Printed Packing Tape Slitting Rewinding MachineUS$ 10,000 - 15,000MOQ: 1 Set -
Horizontal Type Plastic Film Roll to Roll Slitting MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Vertical Type Slitting Rewinding Machine for PE,PP,OPP FILMUS$ 1,000 - 10,000MOQ: 1 Set
-
Surface Type Winding Slitting Machine for Paper,PE, PP FilmUS$ 1,000 - 10,000MOQ: 1 Set
-
PE Plastic Film or Paper Roll Non Woven Roll Slitting Rewinding MachineUS$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware
Packaging Type
Bags, Film
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380/220V
Power
2.2KW
Place of Origin
Zhejiang, China
Brand Name
MINGLI
Model Number
FR
Weight
1300KG
Dimension(L*W*H)
2800*1600*1400M
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
| ITEM | DESCRIPTION | QTY. | AMOUNT |

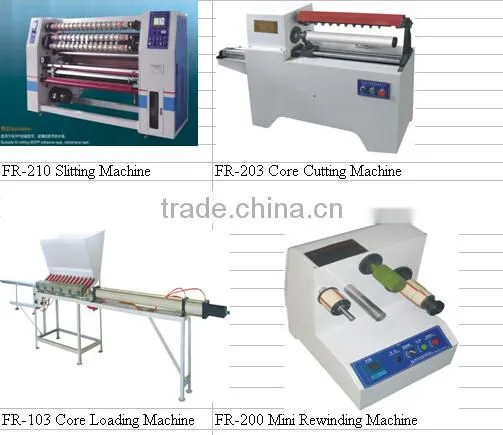

| MODEL : FR-210 | BOPP TAPE SLITTING SERIES | ||
| >> APPLICATION | SUITABLE FOR SLITTING BOPP TAPE, CELLOPHANE TAPE…ETC. | ||
| >> SPECIFICATIONS | |||
| > EFFECTIVE WIDTH | 1320mm | ||
| > UNWIND DIAMETER | MAX. 650mm | ||
| > REWIND DIAMETER | MAX. 180mm (FOUR SHAFTS AUTO EXCHANGE) | ||
| MAX. 300mm (DOUBLE SHAFTS ) | |||
| > SLITTING WIDTH | MIN. 10mm | ||
| > PAPER CORE I.D. | 3" | ||
| > MACHINE SPEED | MAX. 180m/min | ||
| > POWER SOURCE | 380V 50HZ 3PHASE | ||
| > AIR SOURCE | 5 KG (PREPARED BY USER) | ||
| >> STANDARD EQUIPMENT | |||
| > MAIN MOTOR | TAIWAN TECO AC 5HP | 1 SET | |
| > TURRET EXCHANGE MOTOR | AC 0.5HP | 1 SET | |
| > INVERTER | YASKAWA | 1 SET | |
| > CONTROL SYSTEM | JAPAN MITSUBISHI PLC | 1 SET | |
| > SENSOR | JAPAN OMRON | 1 SET | |
| > DISPLAY MODE | 7" MCGS TOUCH PANEL | 1 SET | |
| > BEARING | JAPAN NSK | 1 SET | |
| > UNWIND SHAFT | 3" SCREW CHUCK STEEL SHAFT | 1 PC | |
| > UNWIND BRAKE CONTROL | MAGNETIC POWDER BRAKE | 1 SET | |
| > UNWIND PRESSING ROLLER | 80MM STEEL SHAFT | 1 PC | |
| > BLADE SUPPORTER | 1 SET | ||
| > EDGE TRIMMING | SPOOL TRIM WINDER | 2 SETS | |
| > EMBOSSING ROLLER | 100MM UNWIND EMBOSSING | 1 SET | |
| 100MM DRIVING | 1 SET | ||
| 100MM GUIDING | 1 SET | ||
| > EMPTY GUIDE ROLLER | 100MM STEEL SHAFT | 2 SETS | |
| > ARCHED EXPANDING ROLLER | 100MM | 1 SET | |
| > REWINDING SHAFT | 3" SPRING DIFFERENTIAL SLIP SHAFT | 4 PCS | |
| > NYLON SLEEVE | WITH SPRING & RED BAR | 72 PCS | |
| > SLITTING BLADE | INDUSTRIAL RAZOR BLADE 0.2*22*60MM | 200 PCS | |
| > CONTROL BUTTON SWITCH | TAIWAN TEND, SHIHLIN ELECTRIC | 1 SET | |
| >> ACCESSORIES | |||
| > CORE LOADING MACHINE | FR-103 | 1 SET | |
| WORKING WIDTH: 1300MM | |||
| I.D. OF PAPER CORE: 3" | |||
| AIR COMPRESSOR: 5KG (PREPARED BY CUSTOMER) | |||
| > CORE CUTTING MACHINE | FR-203 | 1 SET | |
| MAX. CUTTING WIDTH: 500MM | |||
| MIN. CUTTING WIDTH: 12MM | |||
| I.D. OF PAPER CORE: 3" | |||
| THICKNESS OF PAPER CORE: 3-5MM | |||
| AIR COMPRESSOR: 5KG (PREPARED BY CUSTOMER) | |||
| MOTOR: 2HP | 1 SET | ||
| PE TUBE | 2 PCS | ||
| CIRCULAR BLADE: 76*25.4*1.2 | 10 PCS | ||
| > MINI REWINDING MACHINE | FR-200 | 1 SET | |
| MAX. UNWIND DIAMETER: 300MM | |||
| MAX. UNWIND WIDTH: 100MM | |||
| I.D. OF PAPER CORE: 3" | |||
| REWIND SPEED: MAX. 100 | |||
