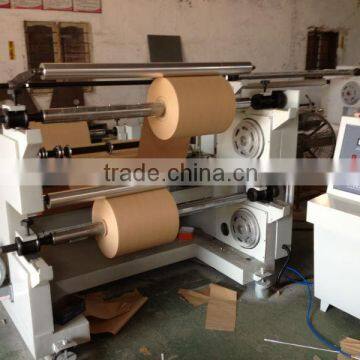

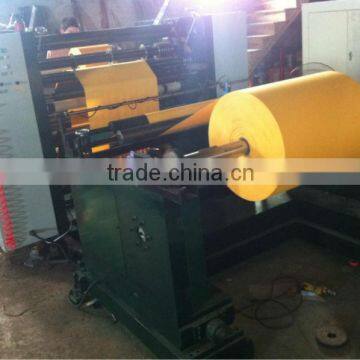

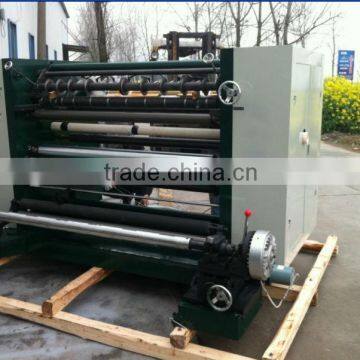

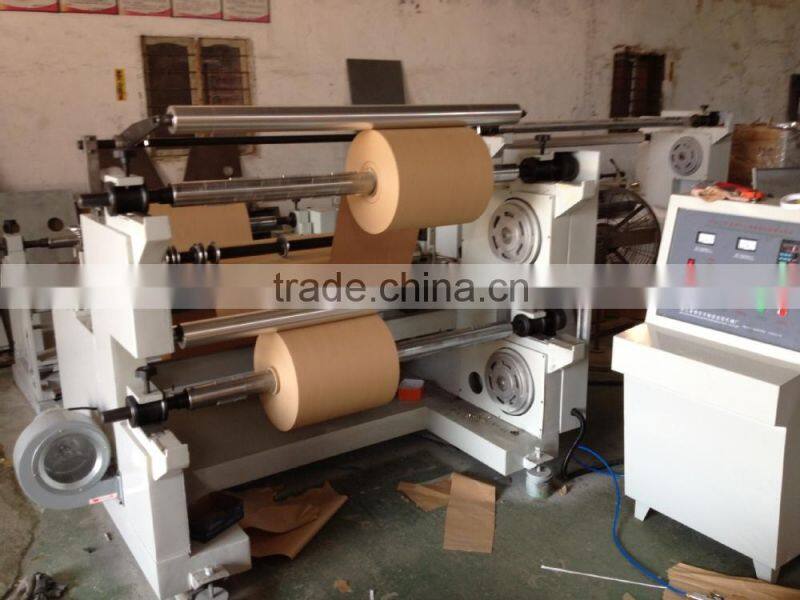

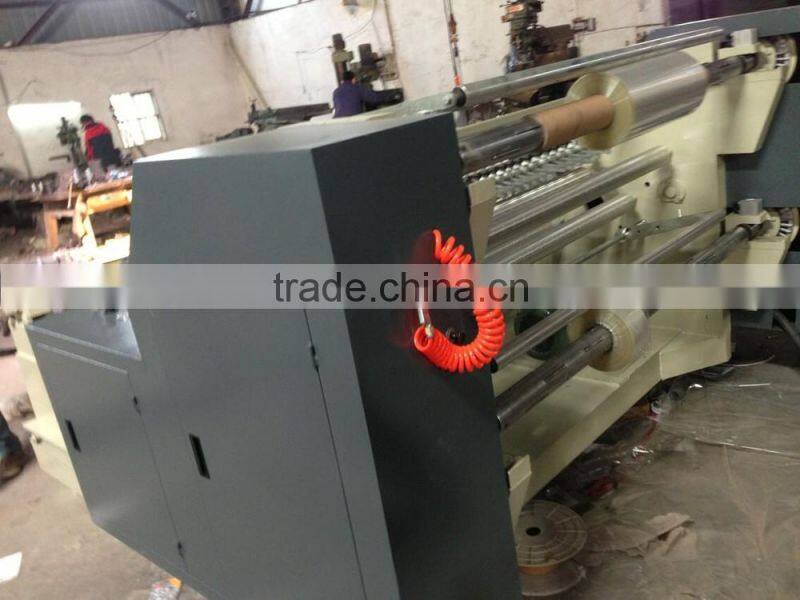

Help CenterHorizonal Type PVC PE BOPP Film Roll Slitting Machine
Related Products
-
Plastic PE BOPP Film Roll Horizontal Type Slitting MachineUS$ 1,000 - 10,000MOQ: 1 Set -
Surface Type Food Aluminum Foil Slitting and Rewinding MachineUS$ 10,500 - 30,000MOQ: 1 Set
-
Surface Type Aluminum Foil Slitting and Rewinding MachineUS$ 10,500 - 30,000MOQ: 1 Set
-
Affordable Printed Thermal Paper Slitting Rewinding MachineUS$ 10,000 - 12,800MOQ: 1 Set
-
Auto Cash Register Thermal Paper Slitting Rewinding MachineUS$ 10,000 - 12,800MOQ: 1 Set
WHY US?
The Quality We Provide - Outstanding Quality Assurance
Control from production process:
•We don’t send mechanical parts out for pretreatment, all process would be supervised under inspection
department, we have 4sets CNC processing machine.
•7 stages pretreatment meet international standard
•Baking at high temperature after power coating to ensure the paint finish
Control from material:
•All bolts and screws are of SS material
•Mild steel ERW rectangular tubes or sheets 1.2-2.0mm thickness, meet EU standard
•Plastic material is of ABS only. Durable and Sturdy. At least 10 years lifetime. Different colors for options.
Control from inspection:
•Process inspections after cold working, acid washing,powder coating and assembling
Final inspection before loading in random checking
The Service We Provide - We Take Care Of Your Order
Punctual delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed.
•Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We respond your complain within 48hours.
Professional sales:
•We value every inquiry sent to us, ensure quick competitive offer.
•We cooperate with customer to bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team
For machine services:
1.Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.We can train your staff to use new equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity in the condition of salary 80USD per day,also including the charge for transportation,accomodation,etc.
Contacted information:
Skype shiner1987
whatsApp/ viber 0086 13736900583
Uses:

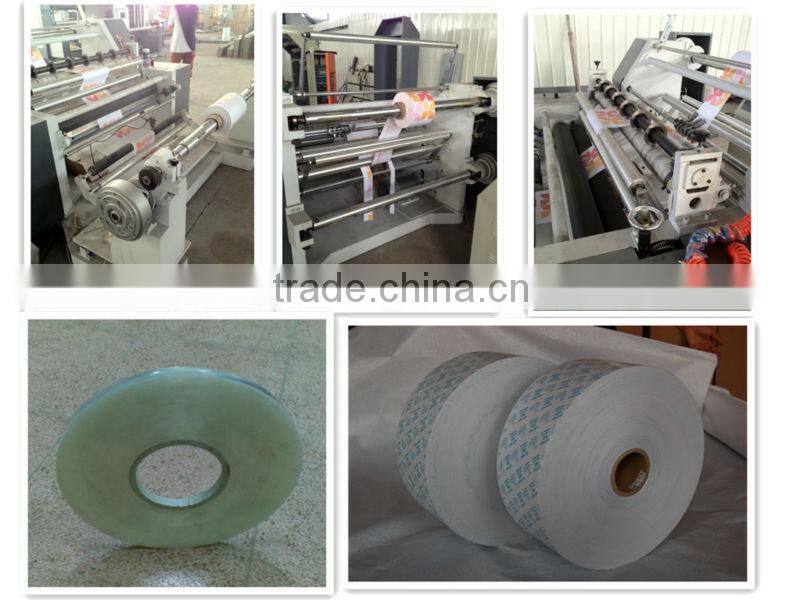

The machine is suitable for slitting BOPP, PET, PVC, PE, aluminum foil, paper and other roll materials in the production process of the material according to the different needs trimming, slitting.
Performance and features:
An electrical braking system of the machine by the PLC centralized control, according to the slitting process requirements set by the touch screen slitting parameters, LCD display control of the state, the control system has to start buffering, parking locking meter meter fixed length function operation is very simple.
Unwinding tension control with automatic tension control system, so that the unwinding tension remains constant taper control according to process requirements. Corrective Japan the Sanqiao LPC photoelectric automatic correction system automatically "with edge" or "with the line" to ensure correct substrate material moving position.
, Raw material handling gas cap-axis clamping and hydraulic lifting of structure (lifting structure optional).
The main traction and rewinding by two vector control variable frequency drive. The winding tension according to the changes of parameters and the diameter of the winding the slitting process requirements set by the PLC automatic control digitized taper.
5, closing reel divided tension inflatable sliding closing reel, the slip force automatic control, multi-reel slitting adapt to uneven thickness of the material.
The main technical parameters:
| Model | WFQ-700 | WFQ-1100 | WFQ-1300 |
| Coil maximum width | 600mm | 1000MM | 1200mm |
| Coil maximum diameter | Φ600mm | Φ600mm | Φ600mm |
| Coil finished width | 30-600mm | 30-600mm | 30-600mm |
| Slitting speed | 5-180m/min | 5-180m/min | 5-180m/min |
| Motor Power | 2.7kw | 3.5kw | 3.5kw |
| Overall weight | 1800kg | 2000kg | 2200kg |
| Dimensions | 2100×1800×1200mm | 2100×2000×1200mm | 2200×2100×1200mm |
cut paper aluminum foil, rewinding maximum 800. Discharge meters and a speed of 150 meters.
